Fujikura FSM-80C / FSM-61S / FSM-80S Series — 14.8V Li-ion Replacement Battery (BTR-09)

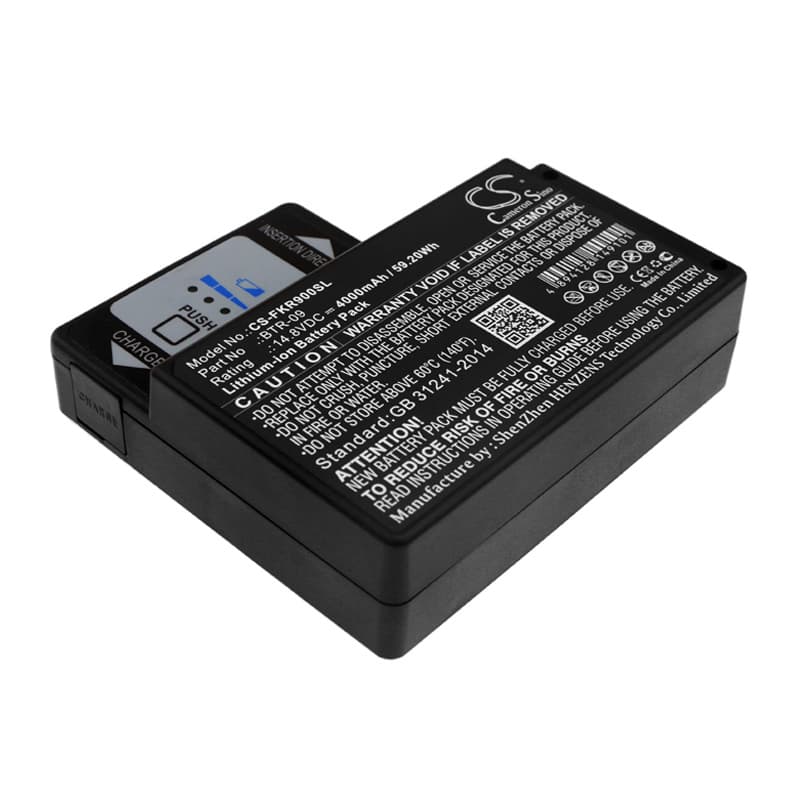

This is a 14.8V 4000mAh (59.2Wh) Li-ion battery for Fujikura fusion splicers using the BTR-09 pack. It fits the FSM-80C, FSM-61S, FSM-62S, FSM-80S, and six additional models in the same platform family. Voltage and cell count match the original spec exactly.
- FSM-80 and FSM-61/62 platform fit: These models share the same battery bay geometry, 14.8V four-cell Li-ion architecture, and BMS communication protocol. The connector pinout and thermal sensor line are identical across the group, so the pack seats and negotiates correctly without firmware conflicts.
- Bench tested on actual hardware: We ran this pack on an FSM-80C and cycled it through arc calibration, motor drive, and heater sequences. The BMS held stable across all load transitions — no nuisance cutoffs during the electrode gap motor pulse or the splice cycle.
- Pre-deployment calibration on the FSM-80C: After fitting this pack, run a full auto-calibration from the splicer menu before heading to site. The FSM-80C maps battery state during that calibration sequence. Skip it and the low-battery indicator fires early — sometimes mid-splice on the first field session.
FSM-80C shutting down at arc discharge or heater activation
The FSM-80C draws a sharp current spike when the arc fires and again when the heat shrink oven activates. On a degraded or cold-soaked pack, this spike can push the BMS over its instantaneous current threshold and trigger a protective cutoff. The splicer goes dark mid-cycle — not a fault with the machine. A new pack with healthy internal resistance handles these spikes without hitting the cutoff floor. If shutdowns persist in cold conditions, warm the battery to above 10°C before use — Li-ion internal resistance rises sharply below that point.
Splicer not recognising pack after months in the carry case
Li-ion cells self-discharge during storage. If a pack sits unused long enough to drop below approximately 2.5V per cell (10V total for a 4S pack), the BMS enters sleep mode and blocks charge input as a safety measure. The FSM-80C will power on briefly or show no battery detected. Connect the pack to the Fujikura charger and leave it for 15–30 minutes — most BTR-09 compatible chargers apply a low-current recovery pulse that wakes the BMS before switching to normal charge current. If the charger shows no activity after 30 minutes, the cells may be below recovery threshold.
