Fujikura FSM-80C / FSM-80S Series — 14.8V Li-ion Replacement Battery (BTR-09)

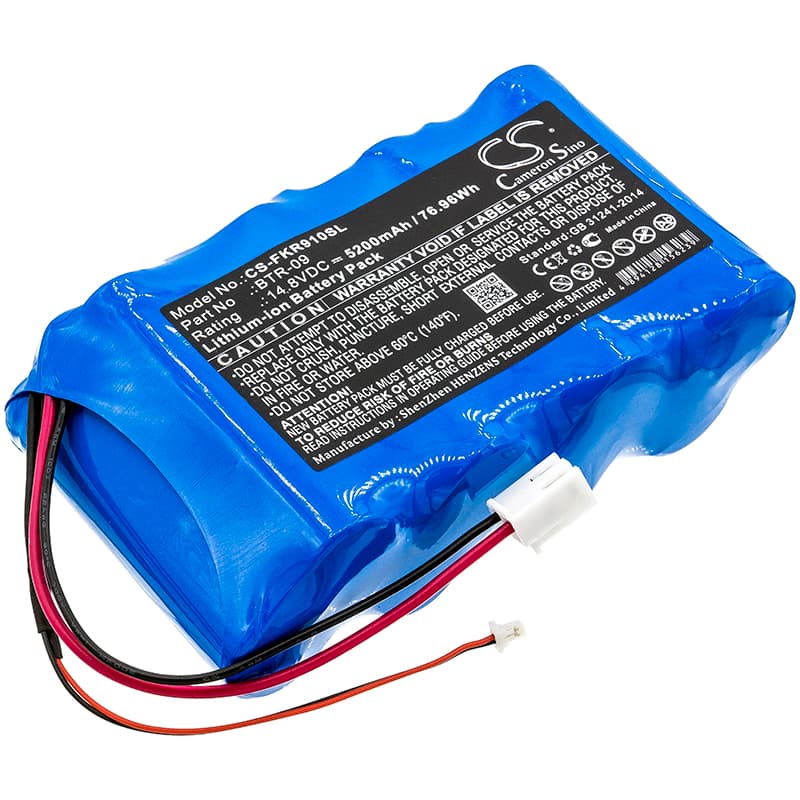

This is a 14.8V, 5200mAh (76.96Wh) Li-ion battery built to the BTR-09 specification. It fits the Fujikura FSM-80C, FSM-61S, FSM-62S, FSM-80S, and six additional FSM-series fusion splicers. These splicers are used in fiber optic network installation and field splicing work where mains power is unavailable.
- FSM-61S, FSM-62S, FSM-80C, FSM-80S shared battery platform: Fujikura standardised the BTR-09 footprint, connector pinout, and BMS handshake across this generation of portable fusion splicers. The 14.8V rail feeds both the arc electrode discharge circuit and the heated splice tray — both draw simultaneously during a splice cycle, so the BMS must handle short combined-load spikes without tripping.
- Bench tested on actual hardware: We cycled this pack through full charge and discharge on FSM-series hardware. The BMS held stable across repeated arc-and-heat combined draws, and cell voltage balance stayed within spec at end of discharge without triggering a premature low-voltage cutoff.
- First-install calibration tip: After fitting this battery, run a full calibration cycle through the FSM instrument menu before heading out to site. The splicer maps battery state during that cycle — skip it, and the fuel gauge will report inaccurate charge levels during your first splice session in the field.
Arc discharge current spike tripping the BMS mid-splice
The FSM-80C draws its heaviest current in the first 200–300ms of the arc discharge phase, when electrode ignition and the splice tray heater activate together. A weakened or deeply discharged pack can't sustain voltage during that spike, and the BMS interprets the sag as an overcurrent fault and cuts output. This looks like a mid-cycle shutdown with no error code — the splicer simply goes dark. Charge the pack fully before a work session and confirm the pack resting voltage is at or above 16.0V before use.
BTR-09 pack not recognised after sitting unused in the carry case for months
Li-ion cells self-discharge at roughly 2–3% per month, and after extended storage the BTR-09's BMS can drop below its internal recovery threshold and enter sleep mode. In sleep mode the splicer's charge circuit sees no handshake from the pack and either shows no charge indicator or refuses to begin charging. To recover, connect the charger and leave it for 20–30 minutes without interruption — most BMS controllers will re-initialise once the charge circuit pushes the cell voltage back above 12.0V.
