About this replacement

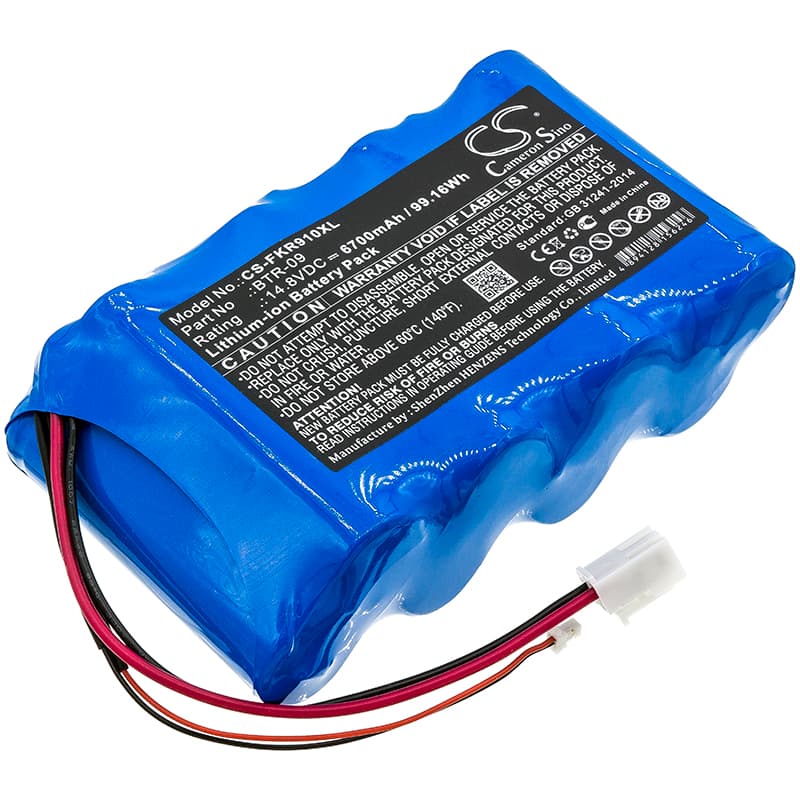

Fujikura FSM-80C / FSM-61S / FSM-62S Series — 14.8V Li-ion Replacement Battery (BTR-09)
This is a 14.8V 6700mAh Li-ion replacement battery for the Fujikura BTR-09 pack. It fits the FSM-80C, FSM-61S, FSM-62S, FSM-80S, and six additional FSM-series fusion splicers that share the same battery bay and connector. Capacity is 99.16Wh — matched to the OEM specification.
- FSM-61S / FSM-62S / FSM-80C platform compatibility: These splicers share the same 14.8V battery rail, physical form factor, and BMS handshake protocol. The BTR-09 slot accepts one pack across the range, so the same battery services a mixed fleet of units on the same job site.
- Bench tested on actual hardware: We ran this pack through arc discharge cycles and motor-drive sequences on an FSM-series unit. The BMS held stable voltage through fibre clamp actuation and arc initiation — the two highest-draw events in a normal splice cycle — without tripping a protection cutoff.
- Post-installation calibration step: After fitting this pack, run a full calibration cycle from the FSM menu before taking the unit into the field. The splicer maps battery state during calibration. Skipping this step causes the low-battery indicator to fire early on the first job, even when the pack is fully charged.
Why the FSM-80C shows low battery warnings immediately after a fresh charge
The FSM-80C uses a voltage-threshold system to estimate remaining capacity. When a new cell is installed, the instrument's internal reference hasn't mapped the new pack's discharge curve yet. The threshold triggers against stale calibration data, so the warning fires at the wrong point in the discharge cycle. Running the full on-device calibration sequence resets that reference and aligns the indicator to the actual cell chemistry.
Pack won't charge after the splicer sat unused in a carry case for months
Extended storage without a maintenance charge allows cell voltage to drop below the BMS recovery threshold — typically below 2.5V per cell on a 4S Li-ion pack like the BTR-09. At that level, the BMS enters a lockout state and refuses a standard charge cycle to protect the cells. Some chargers include a recovery or "wake" mode that applies a low-current pre-charge to bring cells back above the threshold. If the pack won't respond to a standard charge, check cell voltage across the pack terminals — a reading below 10V on a 14.8V nominal pack indicates deep discharge and requires the pre-charge step before normal charging will resume.
