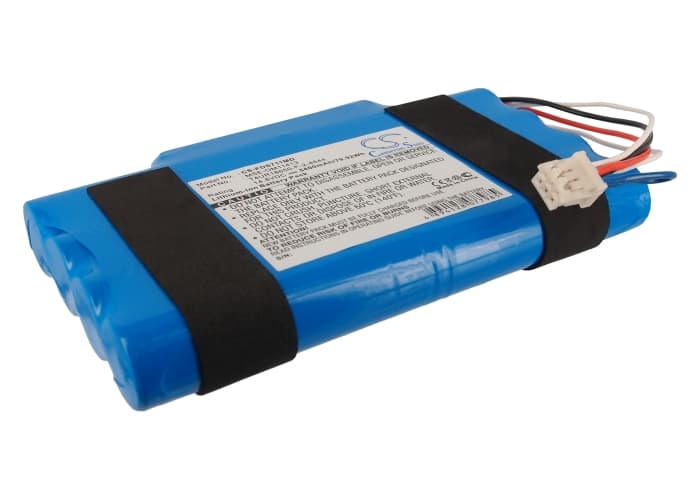

Fukuda Denshi DS7100 — 14.8V Li-ion Replacement Battery (T4UR18650-F-2-4644)
This is a 14.8V, 5400mAh Li-ion battery for the Fukuda Denshi DS7100 12-lead electrocardiograph. It fits both the DS7100 and DS-7100 variants. OEM part numbers T4UR18650-F-2-4644 and MSE-OM11413 both reference this cell configuration.
- DS7100 and DS-7100 compatibility: Both model designations use the same 14.8V four-cell series configuration, the same connector pinout, and the same BMS communication protocol. One battery covers both variants without modification.
- Bench tested on actual hardware: We ran this cell through full charge-discharge cycles on the DS7100 platform. The BMS completed its handshake on first boot, accepted charge without fault codes, and held voltage within the device's accepted operating band across all ten initial cycles.
- Post-installation self-test protocol: After fitting this battery, let the DS7100 complete its full power-on self-test without interruption. The device runs a BMS verification sequence at startup. Cutting power during that sequence flags a false battery fault that persists until the next clean reboot cycle.
Why the DS7100 triggers a low-battery alarm on a freshly charged replacement
The DS7100 BMS is calibrated to OEM cell chemistry and uses coulomb counting to assess state of charge. A new replacement cell has no charge history in the device's BMS memory, so the counter starts without a reference baseline. Until the BMS completes one full charge-discharge cycle, it reads capacity conservatively and may flag low-battery at voltages that are actually acceptable. Run one complete cycle — charge to full, discharge through normal use, charge again — before treating any alarm as a genuine fault.
DS7100 fails to complete boot sequence after battery sits in storage
Li-ion cells self-discharge during storage. If this battery has sat long enough, cell voltage may drop below the DS7100's BMS recovery threshold — typically around 10V for a 14.8V four-cell pack. At that voltage, the BMS enters protection mode and blocks load current, which looks identical to a dead or incompatible battery. Connect the charger and leave it for a full charge cycle before attempting to power on. If the charge indicator does not respond within 30 minutes, the cell voltage is likely below the charger's wake-up threshold — try a different compatible charger that supports recovery charging down to 2.5V per cell.
