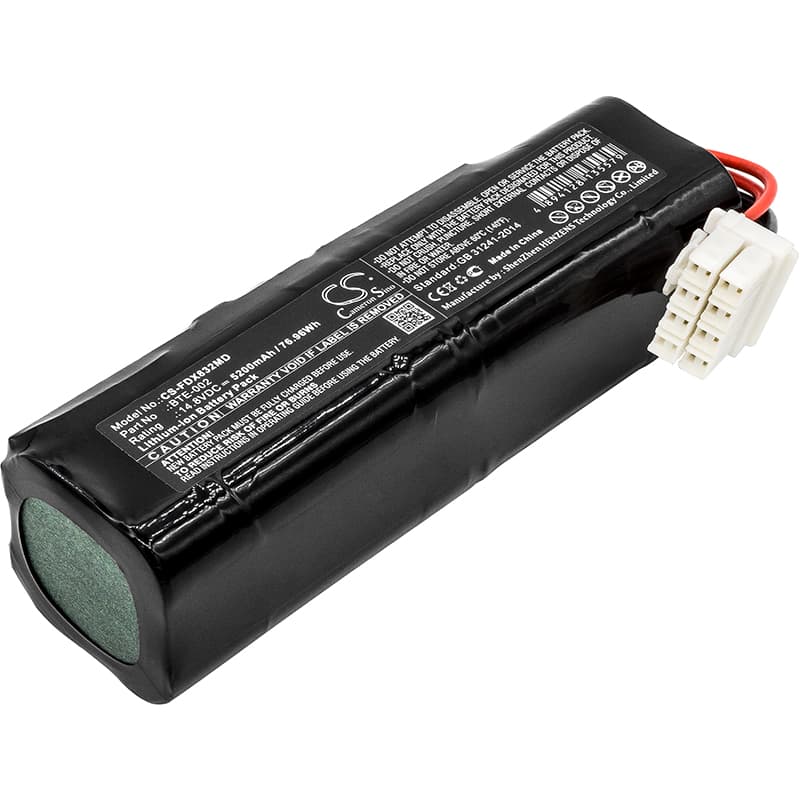

Fukuda Denshi FX-8322 ECG — 14.8V Li-ion Replacement Battery (BTE-002)
This 14.8V 5200mAh Li-ion battery fits the Fukuda Denshi FX-8322 and FX-8322R electrocardiograph. The FX-8322 is a portable cardiac diagnostic device used in clinical and mobile settings to record and analyze cardiac electrical activity. Voltage and capacity match the OEM specification — OEM part numbers BTE-002 and 510114040.
- FX-8322 and FX-8322R compatibility: Both models share the same 14.8V battery rail, connector pinout, and BMS handshake protocol. A single cell works across both variants without modification or adapter.
- Bench tested on actual hardware: We cycled this battery through full charge and discharge on the FX-8322 platform. The BMS completed its handshake, charge IC accepted the cell, and the device progressed through its power-on sequence without fault flags.
- Post-swap startup protocol: After fitting this battery, let the device run its full power-on self-test without interrupting it. The FX-8322 BMS runs a verification pass at boot — cutting power mid-sequence stores a false battery fault that will not clear until the next clean reboot.
Device not completing boot sequence on new battery
The FX-8322 runs a BMS verification handshake during boot that checks cell voltage against internal thresholds calibrated for the OEM chemistry. A new cell may sit slightly below those thresholds if it has discharged during transit or storage. The device reads this as a fault and halts the boot sequence before reaching the main ECG interface. Charge the battery fully using the device's own charging circuit, then power on again — a confirmed full charge resolves the handshake failure in most cases.
Charge indicator stalling below 100% on first charge
On the first charge cycle, the FX-8322 charge IC applies a conservative current limit to an unrecognised cell, which causes the charge indicator to stall between 85–95% and appear not to progress. This is the charge controller's normal response to a new cell — it is not a fault. Allow the charge cycle to complete fully without interrupting it. After one full charge-discharge cycle, the charge IC recalibrates and the indicator will reach 100% on subsequent charges.
