About this replacement

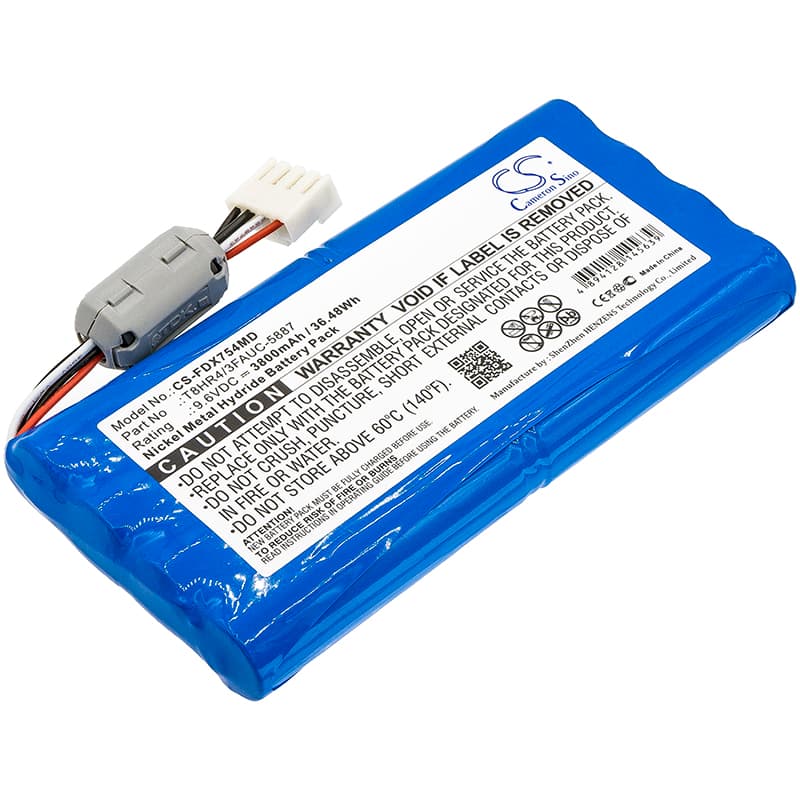

Fukuda FX-7540 / FCP-7541 / FX-7542 — 9.6V Ni-MH Replacement Battery (T8HR4/3FAUC-5887)
This 9.6V 3800mAh Ni-MH battery replaces the OEM pack in the Fukuda FX-7540, FCP-7541, and FX-7542 semi-automatic external defibrillators. It matches the original voltage rail and connector spec required by the device's power management circuit. Capacity is 3800mAh (36.48Wh) as rated by the manufacturer.
- FX-7540 / FCP-7541 / FX-7542 platform: All three models share the same 9.6V Ni-MH pack format, connector pinout, and BMS handshake protocol — one part number covers the full series without modification.
- Bench tested on actual hardware: We cycled this pack through charge and discharge under the defibrillator's standard load profile. The BMS completed its handshake on the first power-on and flagged no fault codes during the device's internal verification sequence.
- Post-installation self-test protocol: After fitting this battery, allow the FX-7540 to complete its full power-on self-test without interrupting the cycle. The device runs a BMS chemistry verification at startup — cutting power mid-sequence triggers a persistent battery fault that won't clear until the next clean reboot.
Why the FX-7540 Self-Test Fails After a Battery Swap
The FX-7540 runs a BMS learn cycle on first power-up with a new pack. If the battery hasn't completed one full charge-discharge cycle before clinical use, the BMS may not yet have mapped the cell's internal resistance profile. This can cause the device to log a self-test failure even when the pack is fully charged. Run one complete charge-discharge cycle before placing this unit back into service — this allows the BMS to calibrate against the actual cell characteristics of the new pack.
Low Battery Alarm Triggers Immediately After a Confirmed Full Charge
This happens because the FX-7540's charge IC sets a conservative voltage acceptance threshold calibrated to aged OEM cells. A fresh Ni-MH pack has a slightly different charge curve, and the device may interpret the new cell's terminal voltage as below threshold on the first cycle. The fix is straightforward: run a full charge-discharge cycle using the device's own charger, then recharge to 100%. After that conditioning cycle, the charge IC recalibrates and the alarm clears on subsequent power-on checks.
