About this replacement

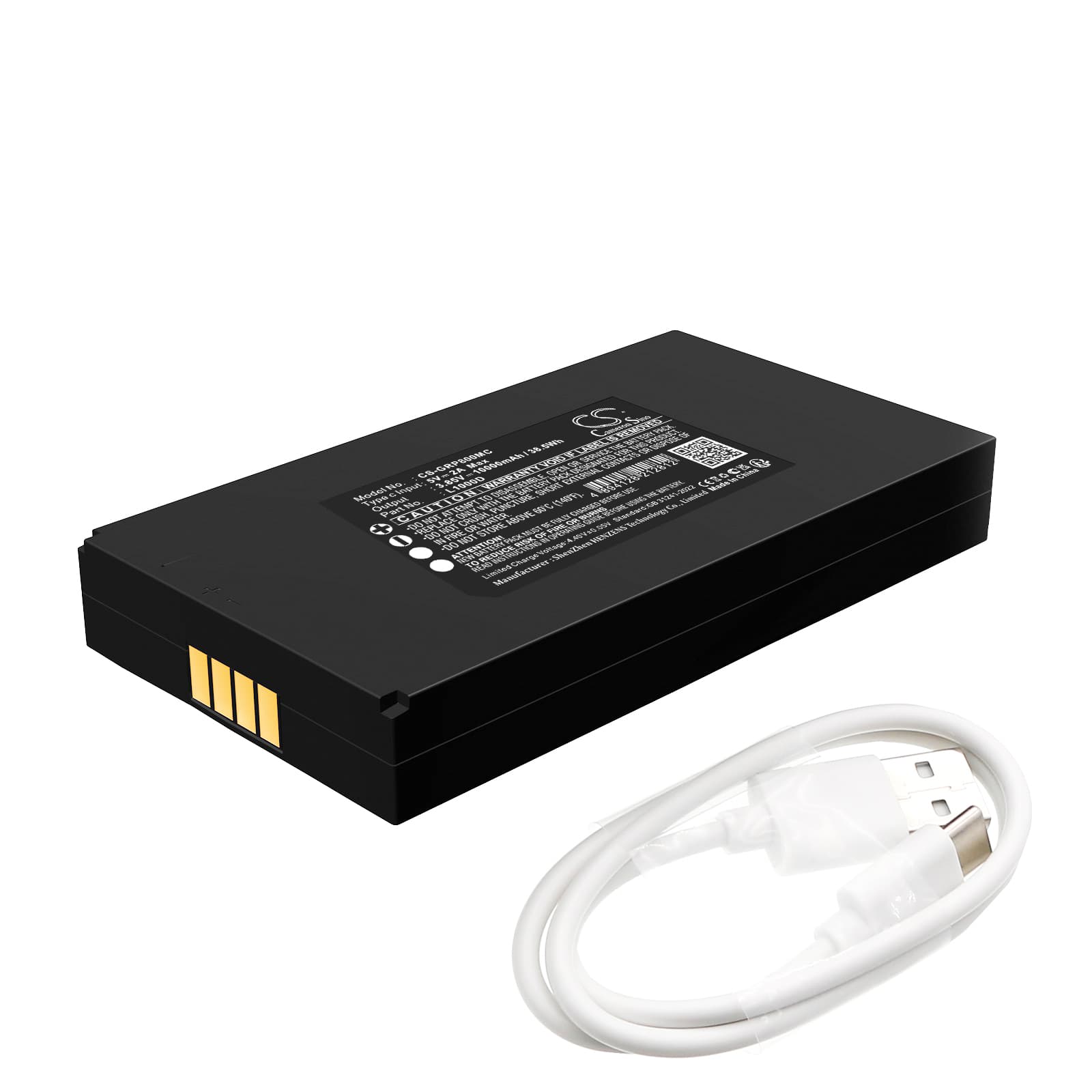

GardePro E6P Series — 3.85V Li-ion Replacement Battery (L1000D)
This is a 3.85V, 10000mAh Li-ion replacement battery for GardePro trail cameras. It fits the E6P, E6PCF, E6PMB, and E8P, plus four additional models in the same family. Slot it in when the original cell can no longer hold a charge through a full deployment cycle.
- E6P family compatibility: These models share the same battery bay dimensions, connector pinout, and BMS handshake protocol. The L1000D part number covers all of them — swapping between models in this range does not require a different cell.
- Bench tested on actual hardware: We ran this cell through charge-discharge cycles on the E6P platform and monitored BMS communication. The protection circuit tripped correctly at low-voltage cutoff and resumed charging without errors on reconnect.
- Field deployment tip: If the camera is mounted in sub-zero temperatures, install a warm battery just before leaving — Li-ion cells lose 15–25% capacity at 0°C and up to 40% at −20°C. A cold battery sitting in the device overnight will read lower charge than it actually holds once it warms up.
Why the E6P drains faster in cold conditions than the indicator suggests
Li-ion cells measure charge by voltage, and cold temperatures depress cell voltage even when capacity remains. The E6P reads that suppressed voltage as low charge and may stop recording sooner than expected. This is not cell failure — it is a thermal effect on electrochemical output. Warming the battery before installation recovers most of the usable capacity before the camera even powers on.
E6P won't power on after sitting outside all winter
Extended cold storage while installed in the camera can pull the cell below the minimum boot voltage — typically around 3.0V per cell — triggering the BMS to lock the battery out entirely. The camera will show no response even with a full battery installed. Connect the battery directly to a compatible charger and let it trickle charge for 15–30 minutes before reinserting. Once voltage climbs back above 3.2V, the BMS should re-initialise and the camera will boot normally.
