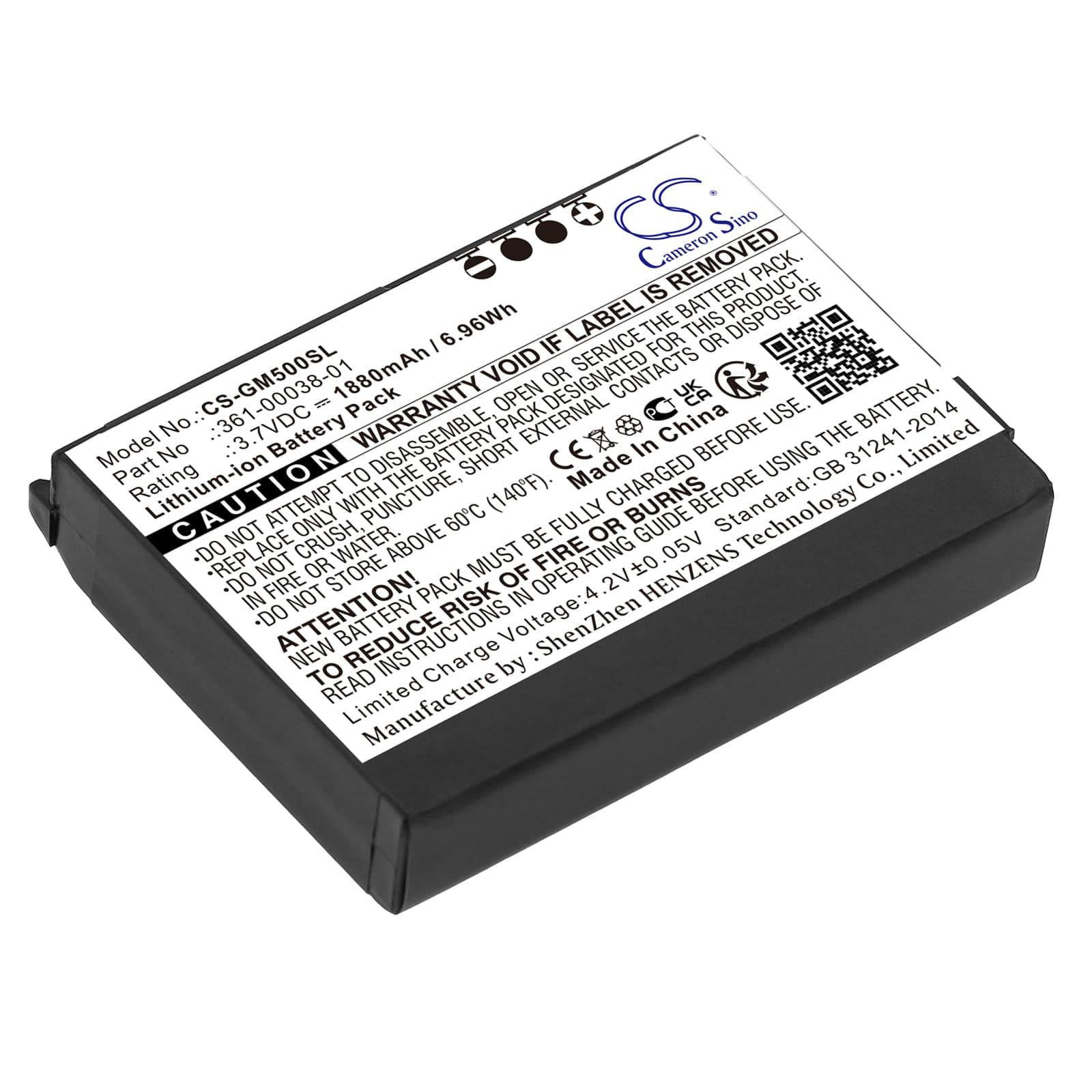

Garmin Nuvi 500 / Zumo 600 Series — 3.7V Li-ion Replacement Battery (361-00038-01)
This is a 3.7V, 1880mAh Li-ion replacement battery for the Garmin Nuvi 500 portable GPS navigator and the Zumo 600, 650, and 660 motorcycle GPS units. It replaces OEM part numbers 361-00038-01 and 010-11143-00. Fit the battery when the original cell no longer holds a charge through a full navigation session.
- Nuvi 500 and Zumo 600 series fit: These units share the same cell footprint, connector pinout, and 3.7V supply rail. The BMS handshake is the same across the range, so one replacement cell covers the full compatibility list without modification.
- Bench tested on actual hardware: We ran this cell on a Nuvi 500 and a Zumo 660. The BMS accepted the cell immediately, the fuel gauge calibrated on the first full charge cycle, and the protection circuit tripped correctly at the low-voltage cutoff threshold.
- Cold-start satellite acquisition after swap: After fitting this cell, power the GPS fully on outdoors before driving. The unit performs a cold start after any full power interruption — first satellite fix takes 5–10 minutes. Once locked, warm starts on subsequent power-ons drop under a minute.
GPS battery draining faster on active navigation than on standby
Active navigation puts two power loads running simultaneously — the GPS receiver continuously polling satellites and the touchscreen backlight at operating brightness. Standby or menu use drops the receiver to a low-power polling interval and often dims the display. On the Nuvi 500, full navigation mode draws noticeably more current than any other operating state. If drain seems faster than expected, lower screen brightness one step; it is the single biggest variable in overall power consumption on this unit.
Nuvi 500 shuts off without a low-battery warning
The on-screen battery indicator on the Nuvi 500 is calibrated against the original cell's discharge curve. A new or replacement cell may discharge slightly differently in the lower voltage range, causing the unit to hit the hard cutoff threshold before the visual warning triggers. This is not a fault with the replacement cell — it is a calibration lag. Run two or three full charge and discharge cycles through active navigation and the indicator will re-calibrate to the new cell's curve. After the second full cycle, low-battery warnings should appear at approximately 3.5V as expected.
