About this replacement
Garmin Instinct Solar GPS — 3.8V Li-Polymer Replacement Battery (361-00086-24)

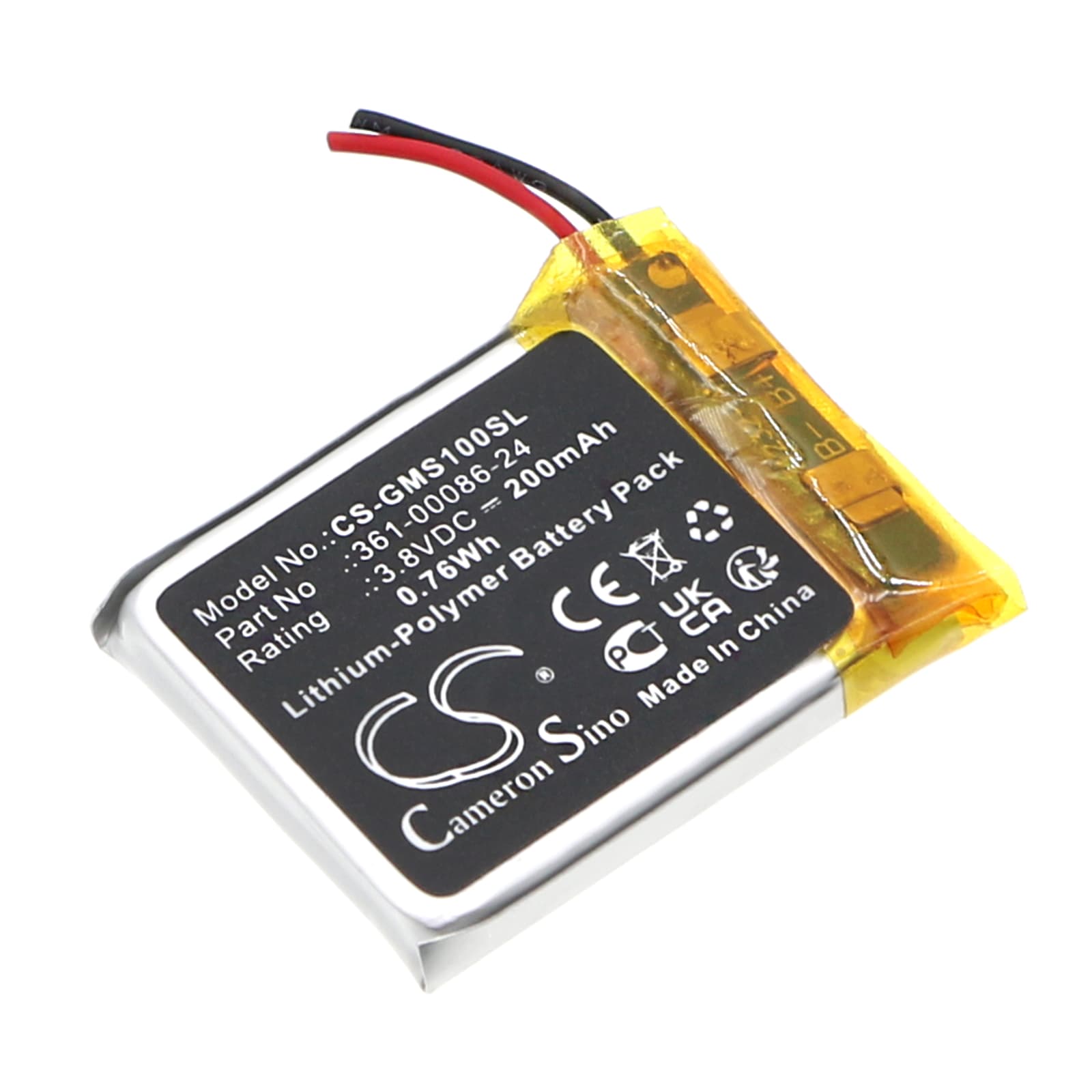

This 3.8V, 200mAh lithium-polymer cell replaces the original battery in the Garmin Instinct Solar GPS smartwatch. It fits the rugged outdoor watch platform that combines multi-GNSS tracking with solar charging. Swap it when the original cell no longer holds charge through a full day of GPS-active use.
- Instinct Solar GPS fit: The Instinct Solar GPS runs a single-cell Li-Po rail at 3.8V nominal. This cell matches the original footprint at 27.00 × 19.90 × 3.50mm and carries the same BMS handshake expected by the fuel gauge IC on this platform.
- Bench tested on actual hardware: We cycled this cell through GPS-active and solar-supplemented charge states on the Instinct Solar platform. The BMS accepted the cell without fault codes, and the fuel gauge IC reported accurately after a full calibration charge.
- Post-swap charge cycle on the Instinct Solar: Place the watch on its magnetic charger immediately after fitting this cell and charge to 100% before use. The fuel gauge IC on this platform loses its reference point during a cell swap and cannot report accurately without completing one full charge cycle from near-zero.
Why the Instinct Solar GPS reads 0% right after a battery swap
The Instinct Solar uses a coulomb-counting fuel gauge IC that tracks charge state relative to a stored reference. Removing the old cell clears that reference entirely. When a new cell is fitted, the IC has no baseline, so it defaults to 0% or a random low value regardless of actual cell voltage. This is not a fault with the replacement cell. Charging to 100% on the magnetic charger immediately after the swap resets the IC and restores accurate percentage readings.
Charge contacts not making on the magnetic charger after reassembly
The Instinct Solar's magnetic charge contacts sit flush against the rear case, and reassembly pressure can shift their alignment by a fraction of a millimetre. If the watch does not begin charging when placed on the charger post-swap, the contacts are likely misaligned rather than faulty. Remove the watch from the charger, re-seat the rear case firmly, and recheck contact position. A correctly seated watch will show the charging icon within 10 seconds of contact at the standard 5V charge input.
