About this replacement
Garmin Nuvi 1200 Series — 3.7V Li-ion Replacement Battery (361-00035-01)

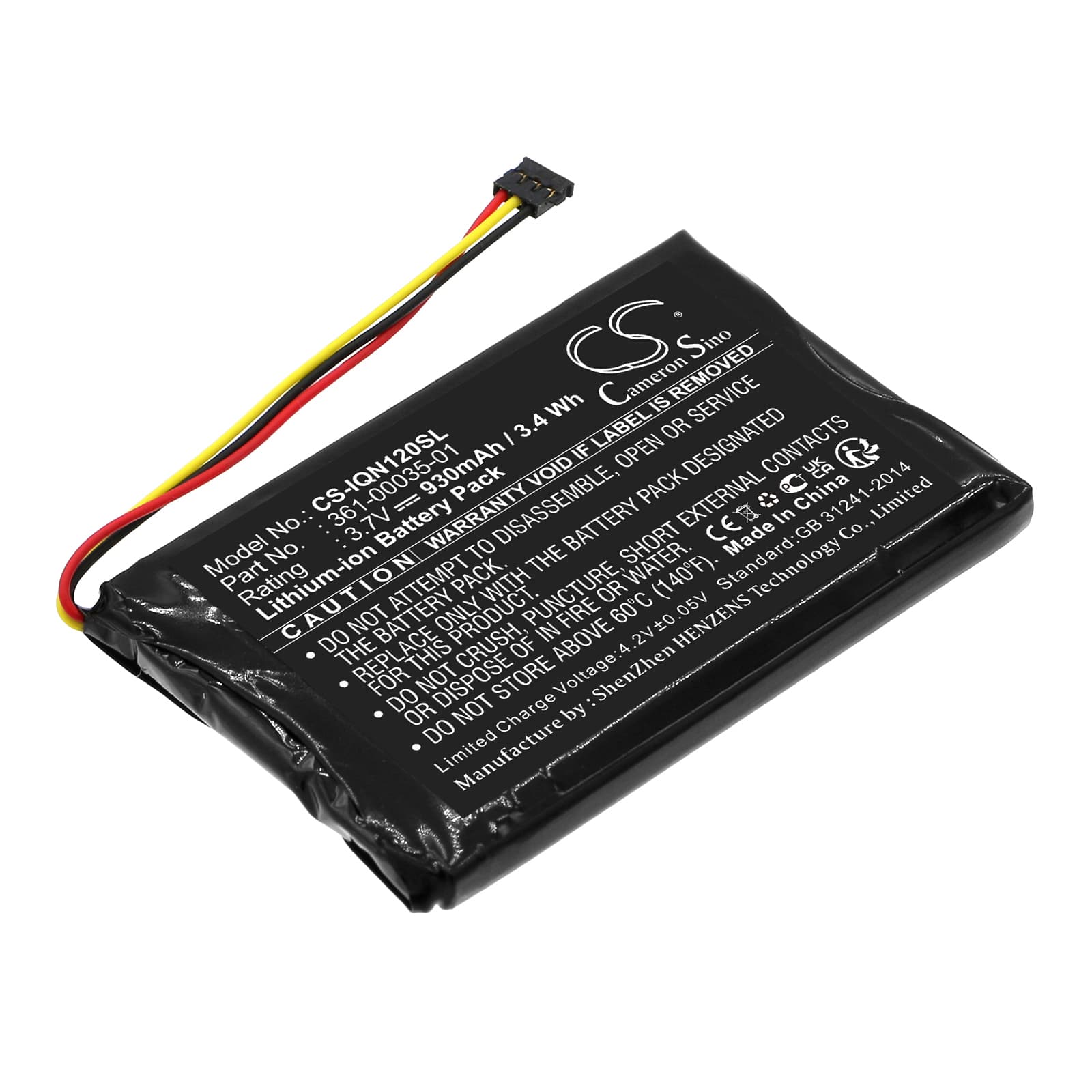

This 3.7V, 930mAh lithium-ion cell replaces OEM part 361-00035-01 in the Garmin Nuvi 1200 portable GPS navigator. It also fits the Nuvi 1205, 1205W, and 1250, among other models in the same series. Dimensions are 52 x 34 x 6mm — match these against your existing cell before fitting.
- Nuvi 1200 series compatibility: These models share the same battery bay dimensions, connector pinout, and 3.7V power rail. The BMS on each unit reads the same charge termination voltage, so one cell covers the full series without modification.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on the Nuvi platform. The BMS accepted the cell without fault codes, charged to full termination voltage, and reported state-of-charge correctly through the device's battery indicator.
- First fix after installation: After fitting this cell, power the GPS on outdoors and allow it to acquire a satellite fix before driving. Removing all power forces a cold start — first satellite acquisition takes 5–10 minutes. Subsequent warm starts drop back under a minute once almanac data is cached.
GPS accuracy reduced at low battery on the Nuvi 1200
When cell voltage drops toward the lower end of the discharge curve, some Nuvi units reduce RF receiver sensitivity to conserve power. This causes positional drift or sluggish map tracking before the low-battery icon appears. It is not a GPS signal problem — it is a power management response. Keeping the cell above 3.5V during navigation maintains full receiver performance.
Nuvi 1200 shuts off without warning at partial charge
After a battery swap, the Nuvi's fuel gauge is uncalibrated — it has no charge history for the new cell. The device may show two or three bars and then cut off abruptly because the voltage-threshold trigger fires before the visual indicator catches up. Run one full charge-to-discharge cycle to let the gauge recalibrate. After that cycle, the low-battery warning should appear at least a few minutes before shutdown.
