About this replacement

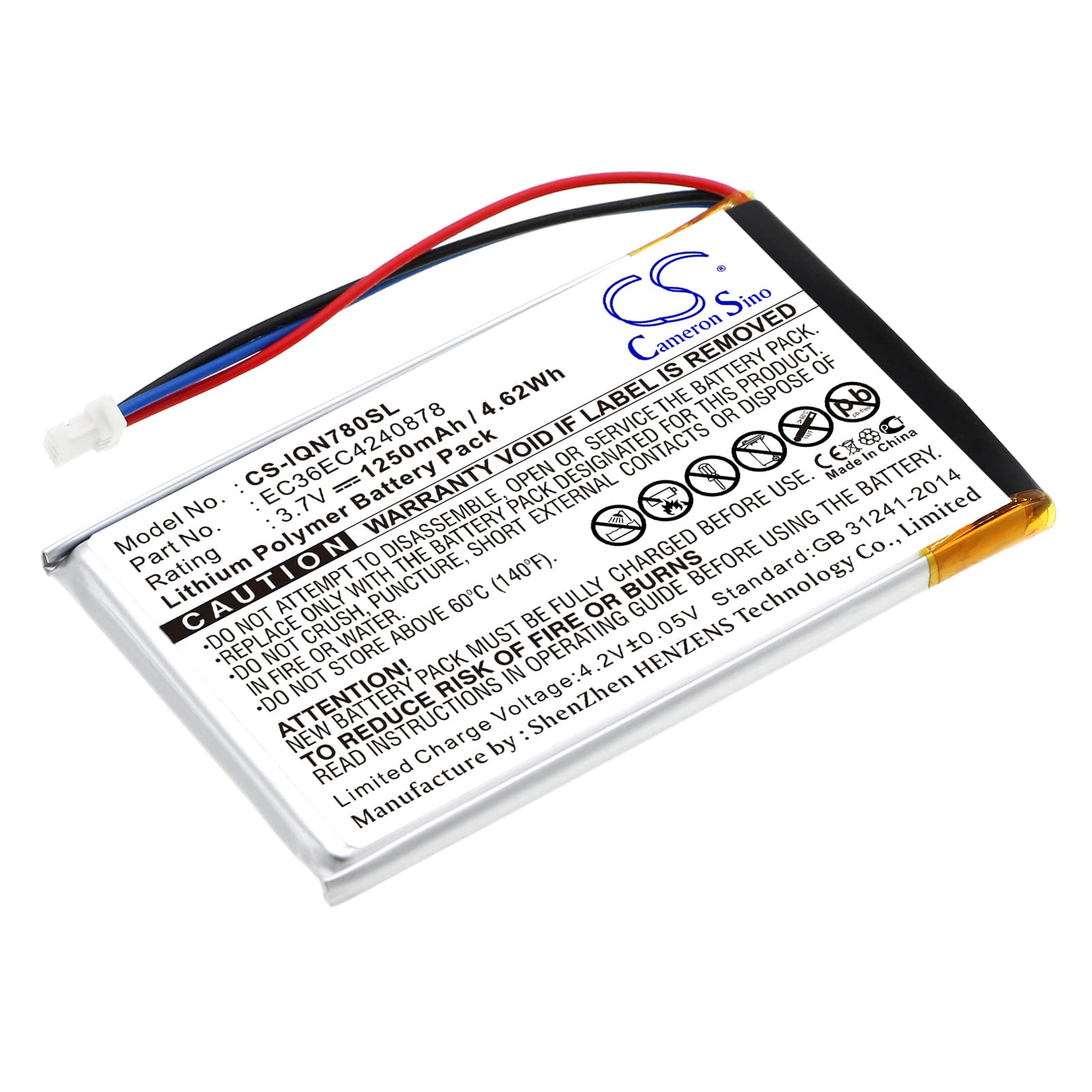

Garmin Nuvi 780 Series — 3.7V Li-Polymer Replacement Battery (EC36EC4240878)
This 3.7V, 1250mAh lithium-polymer cell replaces the original battery in the Garmin Nuvi 780, 780T, 785, and 785T portable GPS navigators. It fits the same physical footprint at 59.00 × 36.50 × 5.50mm and connects directly to the existing battery terminals inside the unit. Capacity figures are taken from our product data, not estimated.
- Nuvi 780, 780T, 785, 785T compatibility: All four models share the same battery bay dimensions, connector orientation, and 3.7V supply rail. The BMS on each unit uses identical charge termination logic, so one cell covers the full sub-series without modification.
- Bench tested on actual hardware: We ran charge cycles on the Nuvi 780 platform and confirmed the BMS accepted the cell without fault flags. Charge termination triggered correctly at capacity ceiling, and the protection circuit responded to simulated over-discharge as expected.
- Cold-start satellite acquisition after fitting: After fitting this cell, power the Nuvi fully on outdoors and let it acquire a satellite fix before driving. GPS units perform a cold start after full power removal — first fix can take 5–10 minutes outdoors with clear sky view, versus under a minute for subsequent warm starts once almanac data is cached.
GPS accuracy reduced at low battery on the Nuvi 780
When cell voltage drops toward the lower threshold, the Nuvi 780 reduces receiver sensitivity to extend operating time. This causes position drift and slower map updates — particularly noticeable on tight urban routing. The fix is straightforward: keep the unit on USB power during long drives, or replace the cell before it cycles below 3.5V under load. A new cell restores the receiver to full sensitivity immediately.
Nuvi 780 shutting off without a low-battery warning
An aged or deeply discharged cell loses the flat discharge curve lithium-polymer cells rely on for accurate state-of-charge reporting. The Nuvi's battery indicator reads higher than the actual remaining voltage, so the unit hits the hardware cutoff threshold — typically around 3.0V under load — with no visible warning. This is not a firmware fault; it is a calibration mismatch between the old cell's degraded curve and the gauge. After fitting a fresh cell, allow one full charge cycle to let the gauge re-calibrate against the new cell's output curve.
