About this replacement

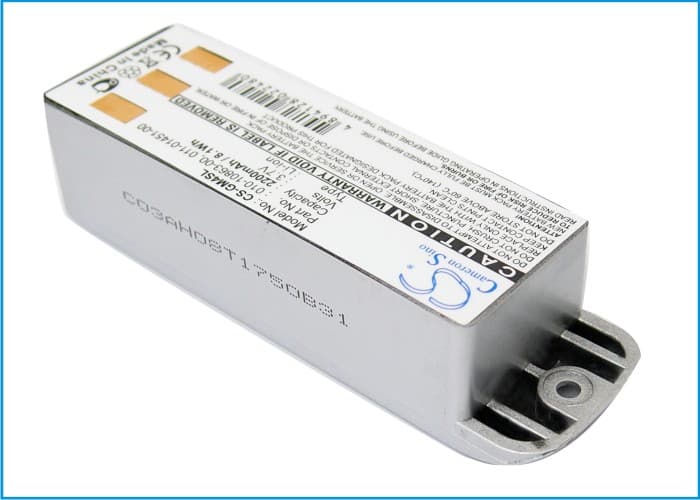

Garmin Zumo 400 / 500 Series — 3.7V Li-ion Replacement Battery (010-10863-00)
This 3.7V 2200mAh Li-ion cell replaces the original battery in the Garmin Zumo 400, 450, 500, and 500 Deluxe motorcycle GPS navigators. It matches OEM part numbers 010-10863-00, 011-01451-00, and 011-01451-03. Fit it when the original no longer holds a full charge through a ride.
- Zumo 400 / 450 / 500 platform fit: These models share the same battery bay dimensions, 3.7V power rail, and connector orientation. The BMS handshake is passive — no proprietary authentication chip — so the cell seats and communicates without any firmware flag or rejection screen.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on a Zumo 500 unit. The BMS held charge termination cleanly at 4.2V and the low-voltage cutoff triggered at 3.0V with no erratic behaviour at either threshold.
- First outdoor power-on after fitting: After installing this cell, take the Zumo outside and let it run a full GPS acquisition before your ride. A cold start after total power removal takes 5–10 minutes to get a solid satellite fix. Subsequent starts are under a minute. Skipping this step on the driveway means it may still be searching when you pull away.
Zumo GPS accuracy dropping at low battery
Some Zumo units reduce receiver sensitivity as cell voltage falls toward the low-voltage cutoff. The GPS antenna draws consistent power, but the receiver processing pipeline gets less of it. You may notice position jumps or a wider accuracy circle on-screen before the unit shuts off. Keeping the cell above 3.4V — charge before longer rides rather than topping up mid-trip — keeps the receiver running at full sensitivity.
Zumo shutting off without a low-battery warning
After a full power interruption, the Zumo's battery indicator loses its calibration reference for the new cell. It may read 30–40% and then cut off abruptly because the actual cell voltage hit the 3.0V shutoff threshold before the indicator caught up. Run two full charge-and-discharge cycles from 100% to auto-shutoff to let the firmware recalibrate its voltage-to-percentage mapping. After that, the warning screen will appear with enough margin to act on it.
