GAZ 5161000415 — 4.8V Ni-CD Replacement Battery (AAP-4S)

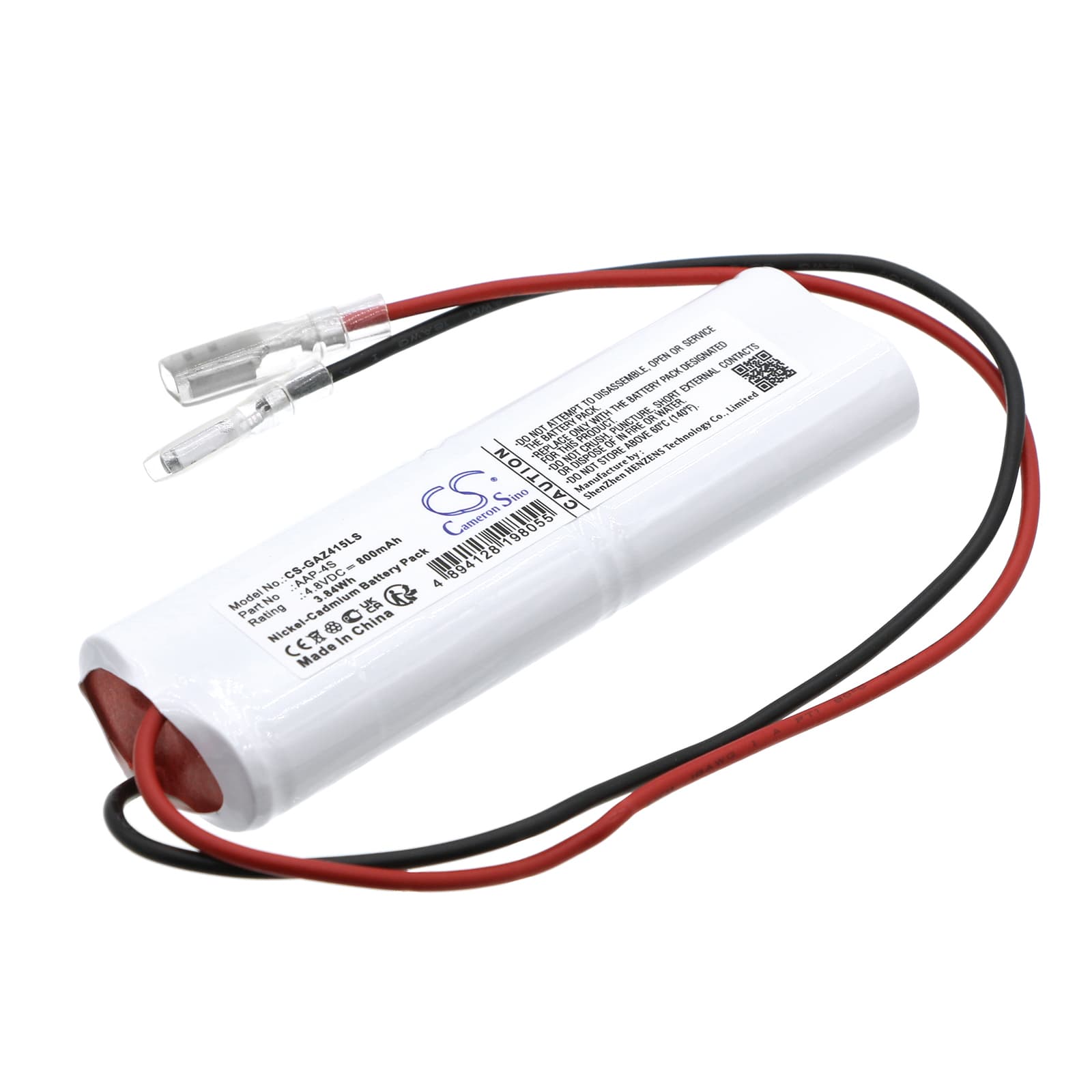

This is a 4.8V, 800mAh Ni-CD replacement cell for the GAZ 5161000415 emergency lighting unit. It powers the backup illumination circuit when mains power fails. The AAP-4S format fits the original battery bay without modification.
- GAZ 5161000415 fitting: The 5161000415 runs a 4.8V charge rail sized for a 4-cell Ni-CD pack. This cell matches that rail voltage and the AAP-4S connector orientation, so the charge controller sees the correct float target on reconnection.
- Bench tested on actual hardware: We ran this cell through a full charge cycle and a load-discharge test on the 5161000415 platform. The BMS accepted the cell without fault, and the charge indicator moved from red to green within the expected window.
- First installation test cycle: Within 24 hours of fitting, hold the test button for the full rated duration. This confirms the cell accepts load under emergency conditions and lets the charge controller register the new cell capacity before the next scheduled compliance inspection.
Charge indicator staying red after new battery installation
A Ni-CD cell that has been in storage typically sits below the float acceptance window the charge controller expects — often under 4.2V on a 4-cell pack. When the controller reads that voltage on first connection, it holds the fault state rather than entering normal charge mode. Leave the fitting connected to mains for a full 24-hour period. The trickle charge will bring the cell voltage up into the 4.8V float window, and the indicator should shift to green once that threshold is crossed.
Emergency light dims and cuts short during a duration test
A new cell that has not completed its first full conditioning cycle will not deliver rated capacity on an early test. The cell voltage drops faster than expected under load, and the fitting dims or shuts off before the test duration is met. This is not a fault with the cell — Ni-CD chemistry requires one full charge and discharge cycle to reach labelled capacity. Allow 24 hours on charge after installation, then run the full test again.
