About this replacement

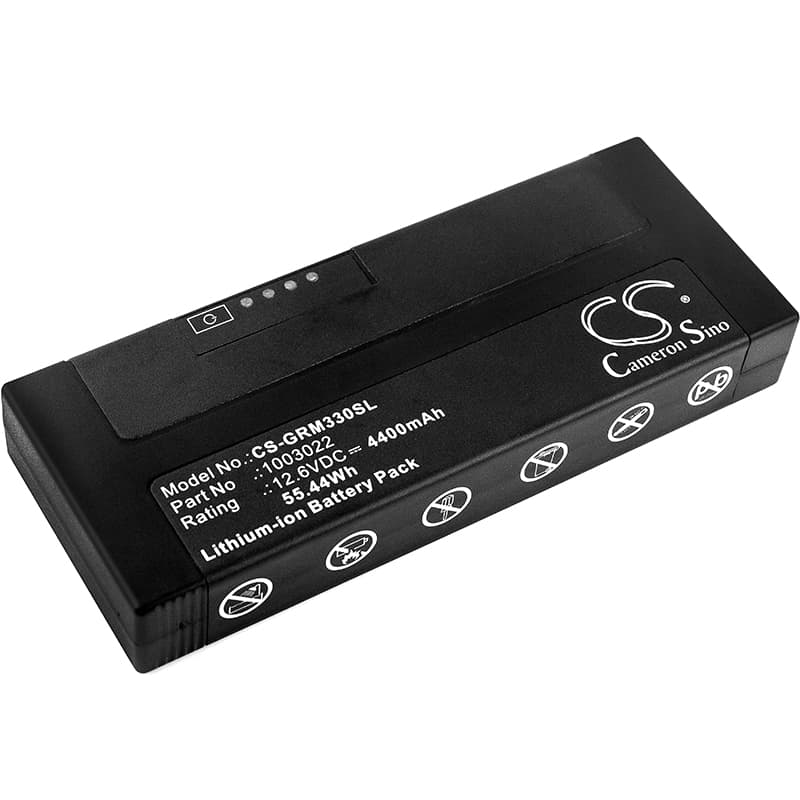

GE Inspection USM33 / Krautkramer USM 33 — 12.6V Li-ion Replacement Battery (1003022)
This 12.6V, 4400mAh Li-ion battery replaces part number 1003022 in the GE Inspection USM33 and Krautkramer USM 33 ultrasonic flaw detectors. These are portable nondestructive testing instruments used to locate material defects and measure wall thickness in metal and composite structures. Voltage and connector match the original pack exactly.
- USM33 and Krautkramer USM 33 fitment: Both nameplates share the same battery bay, connector pinout, and BMS handshake protocol — GE rebranded the Krautkramer line but kept the electrical architecture identical. One pack covers both.
- Bench tested on actual hardware: We cycled this pack through the USM33 boot sequence and probe initialisation. The BMS held the voltage rail steady through the current spike at probe power-up and maintained communication with the instrument's charge indicator throughout discharge.
- Calibration cycle after installation: After fitting this battery, run a full calibration cycle through the instrument menu before field deployment. The USM33 maps battery state during calibration — skipping this step causes premature low-battery warnings during the first measurement session, even with a full charge.
BMS lockout on USM33 packs left unused in a carry case
Li-ion cells self-discharge slowly during storage. If a USM33 battery sits unused for several months, cell voltage can drop below the BMS recovery threshold — typically around 2.5V per cell. At that point, the BMS latches into protection mode and the instrument won't power on, and the charger may show no activity. The pack isn't dead; it needs a recovery charge applied at a low pre-charge current to bring cells back above 3.0V per cell before normal charging resumes. Most GE-compatible chargers handle this automatically if left connected for 20–30 minutes.
USM33 shuts down mid-scan with no low-battery warning
This happens when sustained probe operation draws enough current to cause a momentary voltage sag below the instrument's shutdown threshold, even though the charge indicator showed adequate capacity. It is not a dead battery — it is a voltage-under-load event. Aged cells with elevated internal resistance sag harder under the probe's sustained draw than the instrument's resting-voltage indicator predicts. If the USM33 restarts normally and shows high charge immediately after shutdown, check cell health by noting resting voltage after a full charge — a healthy pack should read at or above 12.4V at rest.
