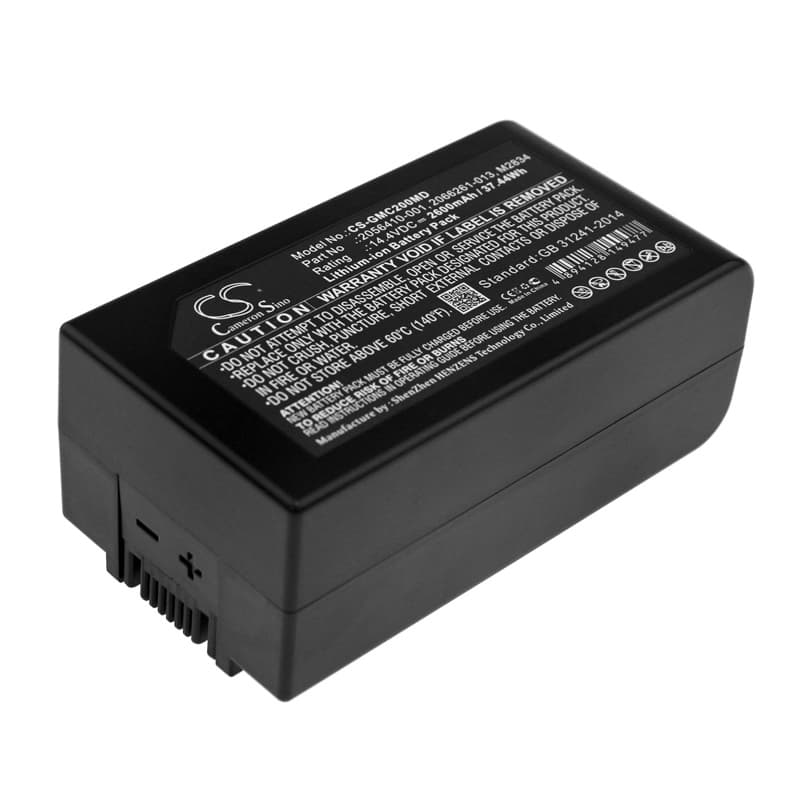

GE MAC 2000 ECG — 14.4V Li-ion Replacement Battery (2056410-001)
This 14.4V, 2600mAh lithium-ion battery replaces the original power cell in the GE MAC 2000 electrocardiograph and its EKG recorder variants. It fits units listed under part numbers 2056410-001, 2056410-002, 2066261-013, 2066261-085, and M2834. Capacity is rated at 37.44Wh — matching the original cell's voltage rail and connector spec.
- MAC 2000 platform compatibility: The MAC 2000, MAC 2000 EKG, and EKG recorder Mac 2000 all share the same 14.4V battery bay, BMS handshake protocol, and connector pinout — one cell fits the entire line without modification.
- Bench tested on actual hardware: We cycled this battery through charge and discharge on the MAC 2000 platform. The BMS completed its charge-acceptance handshake cleanly and held voltage within spec across the discharge curve.
- Post-swap self-test protocol: After installation, allow the MAC 2000 to complete its power-on self-test without interruption. The device runs a BMS verification sequence at startup — cutting power during this cycle stores a false battery fault that persists until the next full reboot.
Device not completing boot sequence on a new battery
The MAC 2000 runs a startup BMS check that compares the cell's reported state-of-charge against an internal threshold before completing the boot sequence. A new cell that sat in storage may report a partial charge, causing the device to stall mid-boot. Connect the MAC 2000 to mains power and allow it to charge the replacement cell fully before attempting a standalone boot. Once the cell reaches 14.4V at the terminals, the boot sequence completes without interruption.
Low battery alarm triggers immediately after confirmed full charge
This happens because the MAC 2000's charge IC applies a conservative capacity threshold calibrated to a broken-in OEM cell. A new replacement cell has not yet completed a learn cycle, so the BMS under-reports available charge and trips the low-battery alarm prematurely. Run one complete charge-to-discharge-to-charge cycle before clinical use. After that first full cycle, the BMS recalibrates its capacity estimate and the alarm clears at the correct threshold.
