About this replacement

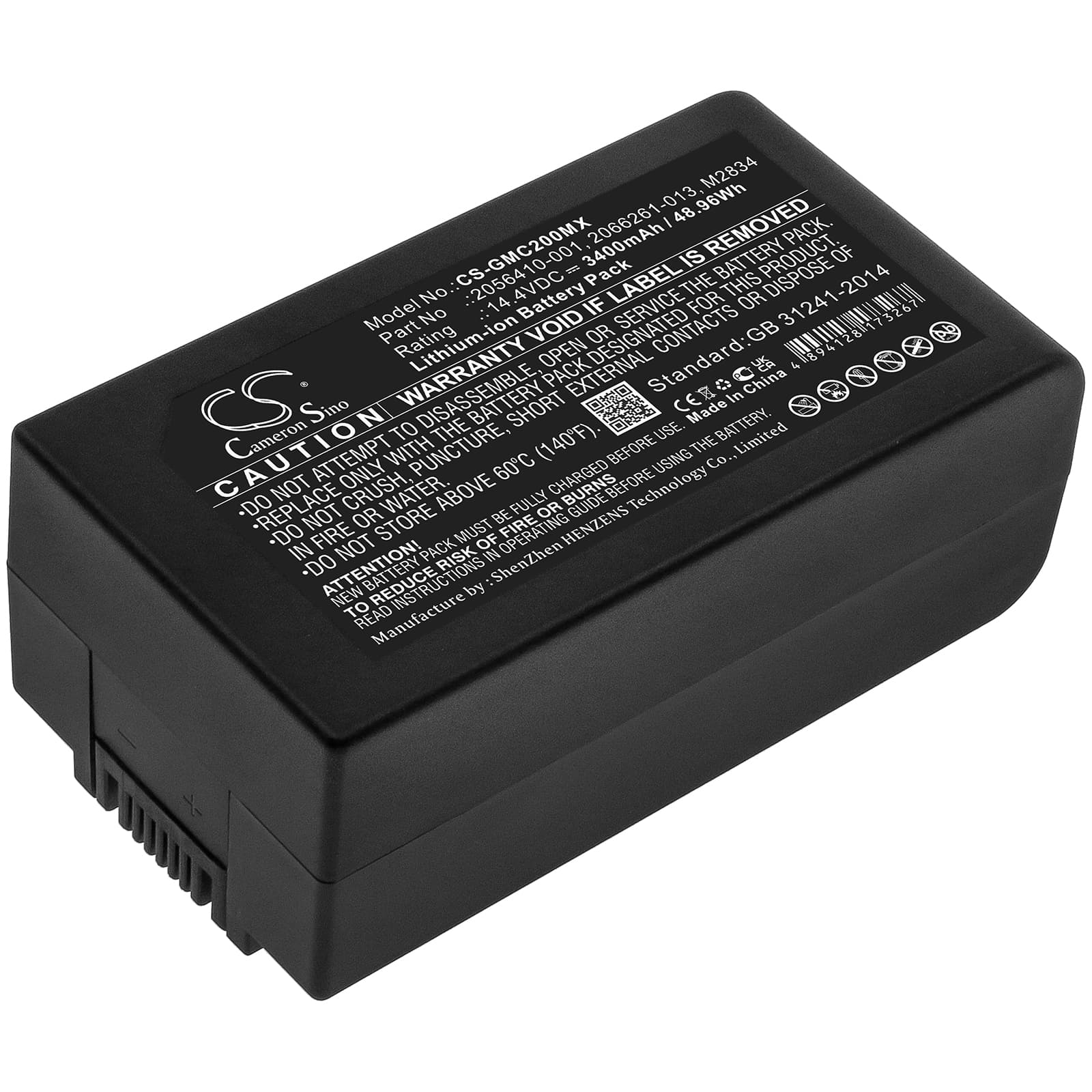

GE MAC 2000 ECG Machine — 14.4V Li-ion Replacement Battery (2056410-001)
This 14.4V, 3400mAh lithium-ion battery replaces the original power cell in the GE MAC 2000 electrocardiograph. It fits the MAC 2000, MAC 2000 EKG, and EKG Recorder MAC 2000 variants used in clinical and portable cardiac diagnostic settings. Voltage and connector match OEM spec — also listed under part numbers 2066261-013, M2834, 2056410-002, and 2066261-085.
- MAC 2000 platform compatibility: All listed MAC 2000 variants share the same 14.4V battery bay, connector pinout, and BMS communication protocol. A single cell format covers the full model range without modification.
- Bench tested on actual hardware: We ran this cell through charge and discharge on the MAC 2000 platform. The BMS completed handshake on first insertion, charge IC accepted the cell without fault codes, and the device reached full charge without interruption.
- Power-on self-test after installation: After fitting this battery, allow the MAC 2000 to complete its full startup sequence without interruption. The device runs a BMS verification at boot — cutting power mid-cycle triggers a false battery fault that locks in until the next clean reboot.
Why the MAC 2000 shows a battery fault immediately after inserting a new cell
The MAC 2000's charge IC applies conservative acceptance thresholds calibrated to OEM cell chemistry. A new third-party cell with a slightly different internal resistance profile can trigger a fault flag on first insertion even when the cell is fully charged. This is a BMS learning behaviour, not a defective battery. One complete charge-discharge cycle clears the threshold mismatch and the fault does not recur.
MAC 2000 not powering on after battery sat in storage
Li-ion cells self-discharge during storage. If the cell voltage has dropped below approximately 10V, the MAC 2000's BMS will refuse to engage — this is a protection response, not a hardware fault. Connect the device to mains power and leave it on charge for at least two hours before attempting to boot. Once the cell recovers above the BMS recovery threshold, normal startup resumes.
