About this replacement

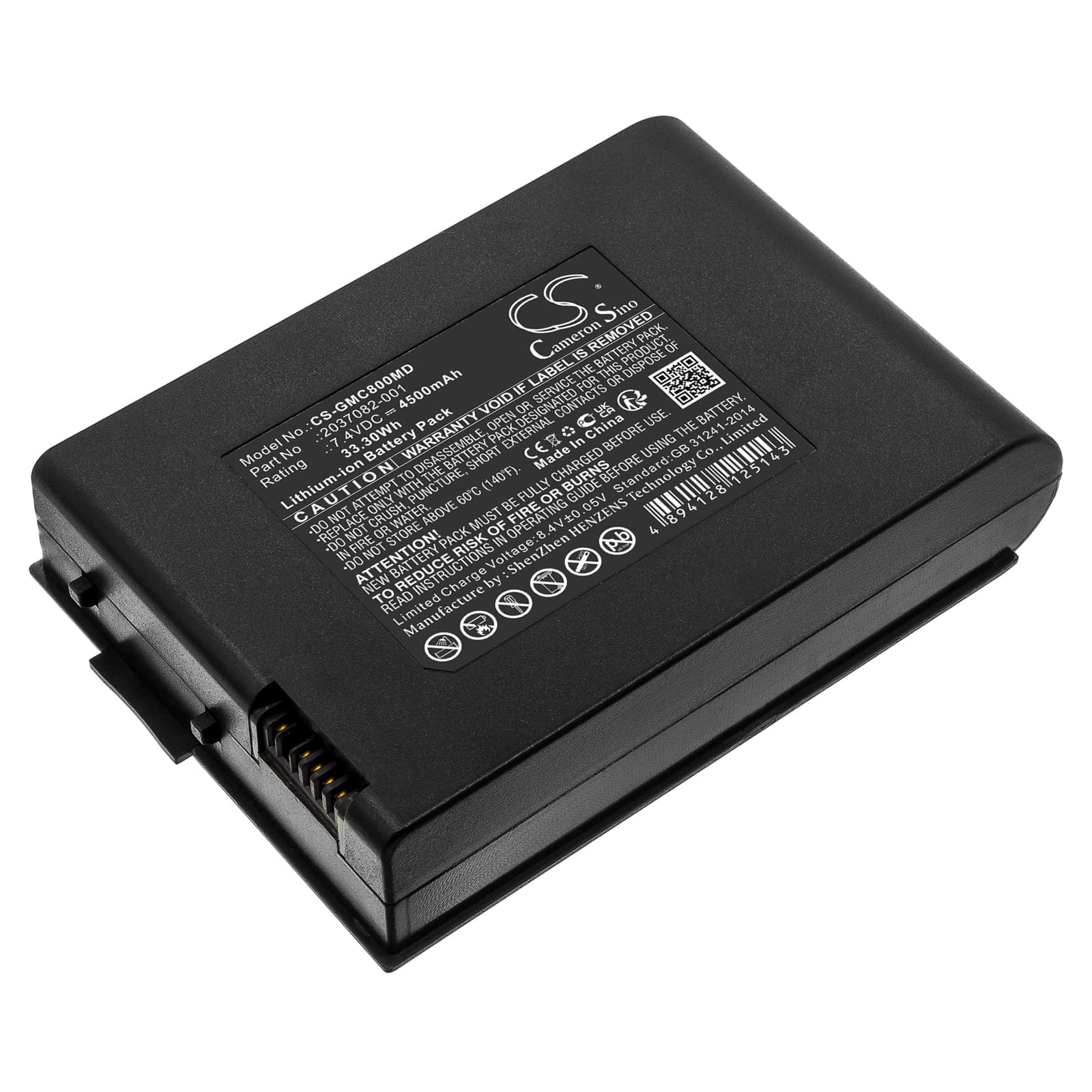

GE MAC 800 ECG Machine — 7.4V Li-ion Replacement Battery (2037082-001)
This 7.4V 4500mAh Li-ion battery fits the GE MAC 800 electrocardiograph, a portable cardiac monitoring device used in hospitals, clinics, and emergency care settings. It replaces OEM part numbers 2037082-001, 2039944-001, M2823, and M2823-O. Physical dimensions are 112.70 × 79.70 × 23.80mm — verify fitment against your existing cell before installing.
- MAC 800 platform compatibility: The MAC 800, MAC800, and ECG Mac 800 designations all refer to the same hardware platform and share an identical battery connector, voltage rail, and BMS handshake protocol. One replacement part covers all three model references.
- Bench tested on actual hardware: We cycled this cell through the MAC 800's full charge-discharge profile and confirmed the BMS accepted the cell without fault codes on boot. Charge acceptance reached full rated capacity after two conditioning cycles.
- Post-installation self-test protocol: After fitting this battery, allow the MAC 800 to complete its power-on self-test without interruption. The device runs a BMS verification sequence at startup — cutting power mid-cycle triggers a false battery fault that persists until the next full, uninterrupted reboot.
MAC 800 alarming low battery immediately after a confirmed full charge
The MAC 800's charge IC applies conservative thresholds when it first encounters a new cell. On the initial cycle, the BMS compares internal resistance and voltage rise rate against its stored OEM chemistry profile. A fresh cell often reads outside that window, triggering a low-battery alarm even when the cell is fully charged. Run one complete charge-discharge cycle — ending with a full charge to 8.35–8.40V — and the BMS will recalibrate its threshold to the new cell's actual profile.
Device will not power on after the replacement battery sat in storage
Li-ion cells self-discharge during storage. If the cell voltage drops below approximately 6.0V, the MAC 800's BMS enters a protection lockout and blocks turn-on entirely. Place the battery on charge for a minimum of 30 minutes before attempting to power the device — the charge IC applies a low-rate pre-charge trickle below 7.0V to recover the cell safely. Once voltage climbs above the BMS recovery threshold, normal charging resumes and the device will power on.
