About this replacement

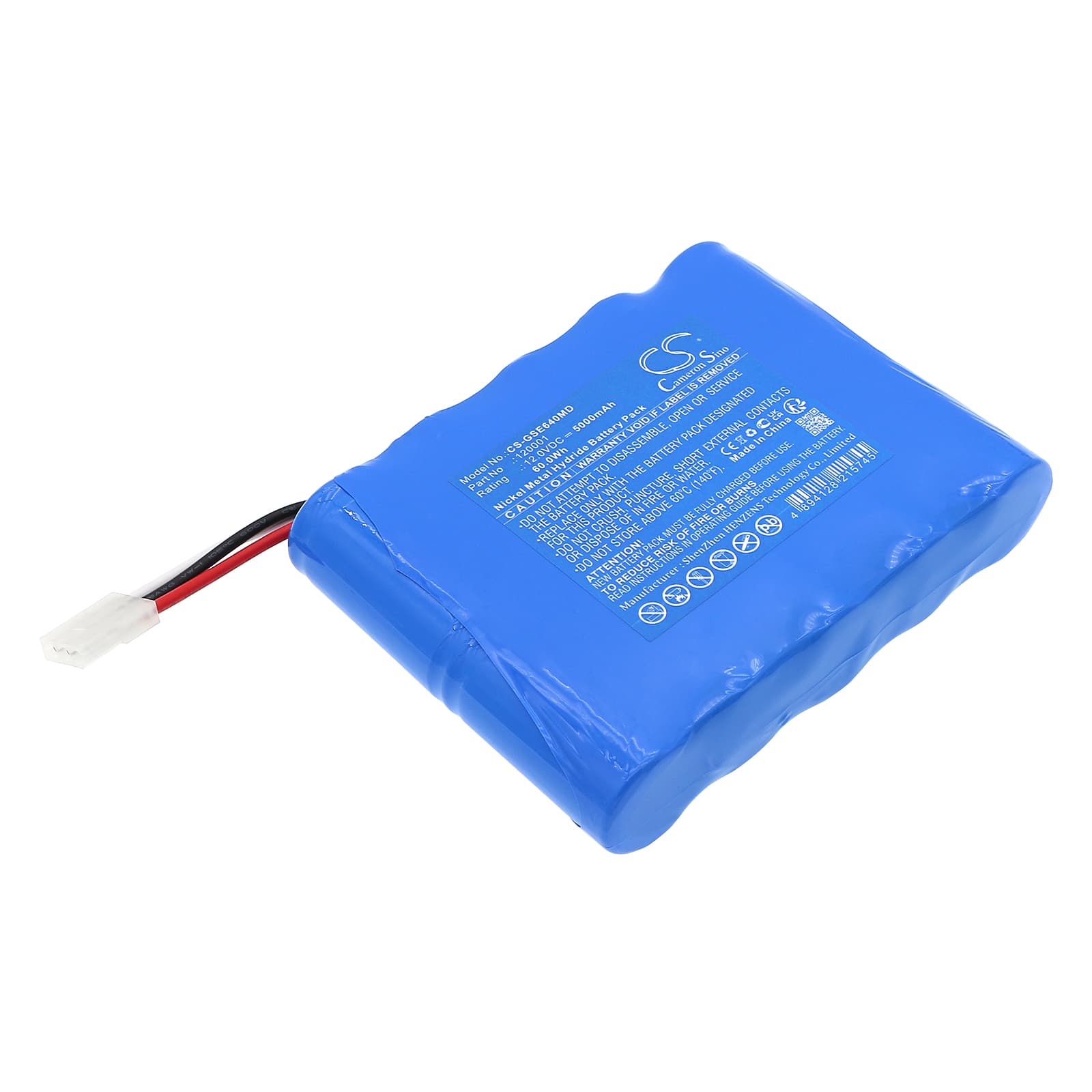

Genesis Sealer Rapid Seal SE640 — 12V Ni-MH Replacement Battery (120001)
This 12V, 5000mAh Ni-MH battery replaces OEM part 120001 and BN123A in the Genesis Rapid Seal SE640 heat sealer. The SE640 is a handheld medical-grade device used in clinical and laboratory settings to seal sterile pouches and packaging. Capacity is rated at 60Wh, matching the original cell specification.
- SE640 platform fit: The SE640 uses a 12V Ni-MH pack with a fixed connector and BMS handshake tied to cell chemistry. Substituting Li-ion or other chemistries will trip the charge IC — this cell matches the original chemistry so the device's charge controller reads it correctly.
- Bench tested on actual hardware: We cycled this pack through the SE640's power-on self-test and charge sequence. The BMS accepted the cell on first contact, completed the self-test without flagging a fault, and the charge indicator advanced normally through each stage.
- Post-installation self-test protocol: After fitting this battery, allow the SE640 to complete its full power-on self-test without interruption. The device runs a BMS verification routine at startup — cutting power mid-sequence logs a false battery fault that persists until a clean reboot cycle clears it.
SE640 shutting off mid-seal cycle in the first ten uses
New Ni-MH cells deliver slightly lower peak current in the first several charge-discharge cycles before the chemistry stabilises. The SE640's sealing element draws a sharp current spike at the moment the heating element activates. If the cell hasn't completed a conditioning cycle, that spike can pull voltage low enough to trip the BMS undervoltage cutoff. Run two full charge-discharge cycles before clinical use and the cutoff threshold will no longer be reached under normal sealing load.
Charge indicator stalled below 100% on first charge
