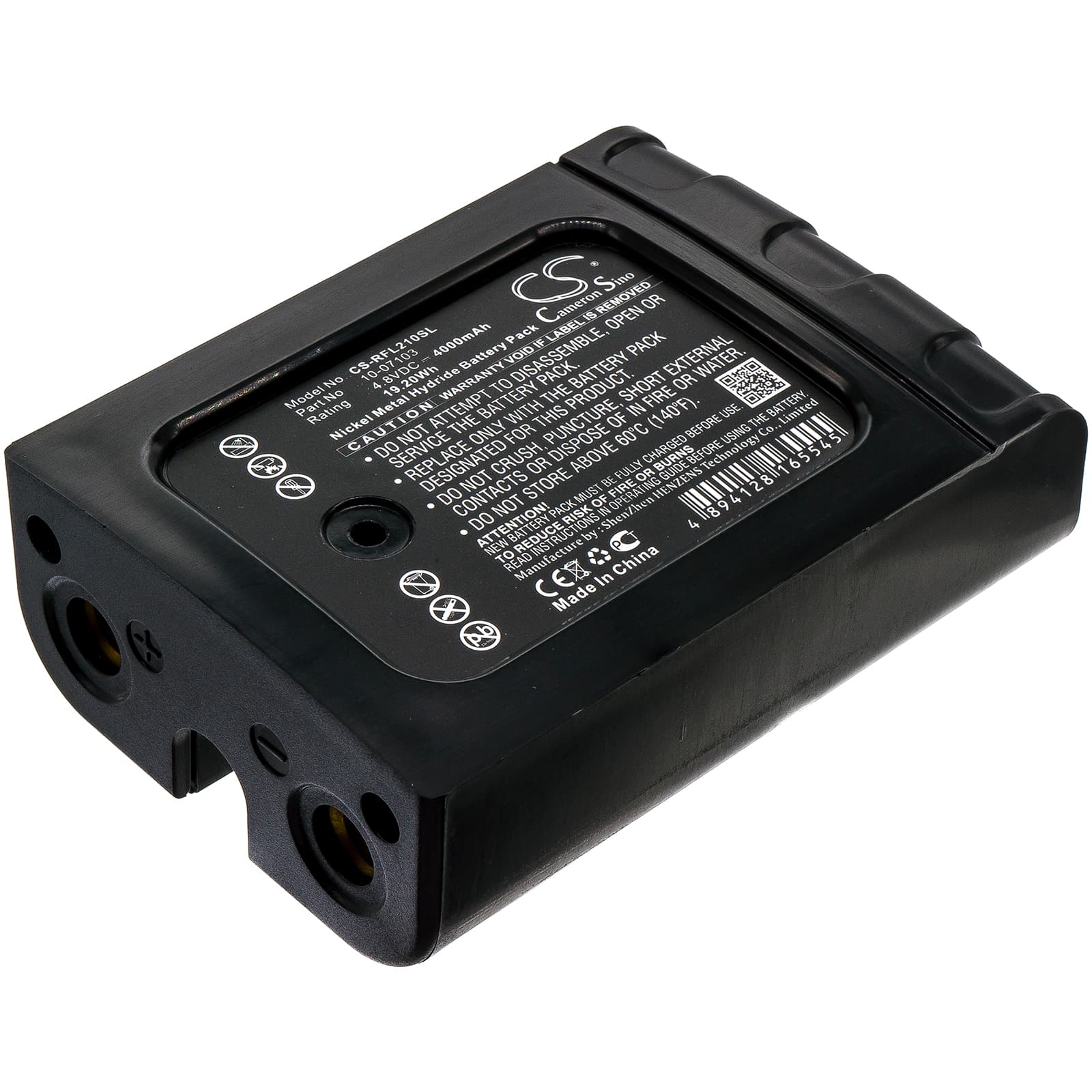

Geo-Fennel Rotationslaser FL 210 — 4.8V Ni-MH Replacement Battery (10-07103)
This is a 4.8V, 4000mAh Ni-MH battery pack for the Geo-Fennel Rotationslaser FL 210 rotary laser level. It replaces OEM part number 10-07103. The FL 210 uses this pack for grade measurement, horizontal and vertical alignment, and general site levelling work.
- FL 210 platform fit: The Rotationslaser FL 210 runs a fixed 4.8V rail with a specific connector orientation and cell count. This pack matches that voltage rail and connector, so the instrument's power management circuit recognises the pack without triggering a charge fault on startup.
- Bench tested on actual hardware: We cycled this pack through the FL 210's charge circuit and monitored BMS behaviour at startup, during motor spin-up for the rotating head, and under sustained sensor load. The pack held voltage without triggering low-battery cutoff during the rotation phase.
- Post-install calibration on the FL 210: After fitting a new pack, run a full calibration cycle through the FL 210's instrument menu before field deployment. The instrument maps battery state during that cycle. Skip it and the low-battery indicator fires prematurely on your first measurement session — not a fault, just an unmapped pack.
BMS lockout after the FL 210 sat unused in a carry case for months
Ni-MH cells self-discharge over time. A pack stored inside a closed carry case for several months can drop below the BMS recovery threshold — typically around 3.6–4.0V total for a 4-cell pack. When that happens, the charger may not initiate a charge cycle because the BMS presents the pack as unresponsive. Some chargers have a recovery or "boost" mode that trickle-charges at low current until the cells climb back above threshold. If yours does not, a charger with a conditioning cycle is the fix. Do not leave the pack in the instrument between site visits for extended periods — that drains the cells further through the instrument's own standby draw.
FL 210 display showing erratic battery percentage after fitting a replacement pack
The FL 210 reads battery state by comparing cell voltage against stored thresholds — it does not use a coulomb counter. A fresh Ni-MH pack has a flatter discharge curve than a worn original, so the instrument's percentage indicator can jump around or show full charge then drop suddenly in the first few cycles. This is the instrument recalibrating its internal voltage map to the new cells. Run two to three full charge-discharge cycles through normal field use and the indicator stabilises. After the third cycle, check that resting voltage reads at or above 4.8V off the charger.
