About this replacement

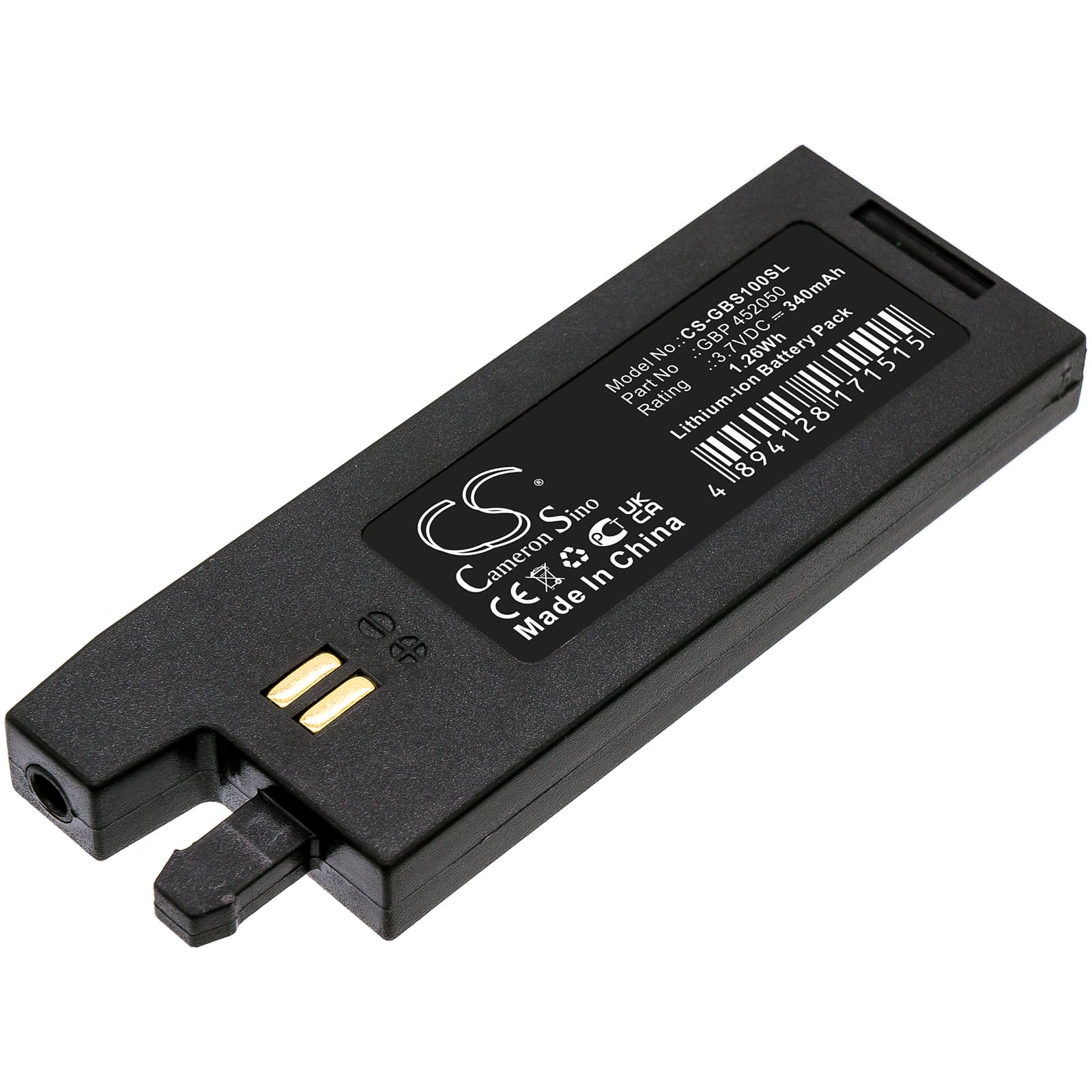

Gibson G-FORCE Auto-Tuner — 3.7V Li-Polymer Replacement Battery (GBP 452050)
This 3.7V 340mAh Li-Polymer battery replaces the original cell in the Gibson G-FORCE Auto-Tuner and compatible automatic tuning systems. It fits the G-FORCE, GForce, Min-ETune, and Tronicaltune platforms. When the original cell degrades, the tuner loses the stable voltage it needs to drive the string motors and hold accurate pitch references.
- G-FORCE and Min-ETune compatibility: These tuning systems share the same 3.7V Li-Polymer cell format, connector pitch, and BMS handshake. Swapping to a mismatched cell — even at the same nominal voltage — can cause the tuner to misread string tension or fail to complete a tuning cycle.
- Bench tested on actual hardware: We cycled this battery through full charge and discharge passes on compatible tuning hardware. The BMS accepted the cell without fault flags, and the tuner completed string-drive sequences across all six positions without voltage dropout.
- Chemistry match matters on auto-tuners: The G-FORCE voltage reference circuit is calibrated around Li-Polymer's flat discharge curve. Installing a different chemistry shifts the reference point mid-cycle, producing tuning drift even when the battery reads "charged." Always replace like-for-like.
Why the G-FORCE stops mid-tune before the battery indicator drops
Li-Polymer cells don't fail uniformly. An aged cell can hold a surface charge that reads as adequate voltage at rest, then sag the moment the string motors draw current. The G-FORCE motor driver requires a stable voltage window to complete each string pass — when the cell sags below that threshold under load, the system aborts the cycle rather than risk a false tune. The display may still show bars because the voltage recovers the instant the load drops. If the tuner stalls mid-sequence on a cell that looks charged, the cell's internal resistance has risen too far and the battery needs replacing.
Tuner display flickering with digits dropping out
Flickering digits on the G-FORCE display are a direct symptom of end-of-life voltage sag, not a screen fault. As the cell approaches depletion, the display driver can't sustain consistent power, causing segments to drop or flash. This happens before the low-battery icon appears because the icon threshold is set conservatively. If digits are unstable, check cell voltage — a reading below 3.5V under light load confirms the battery is due for replacement.
