About this replacement

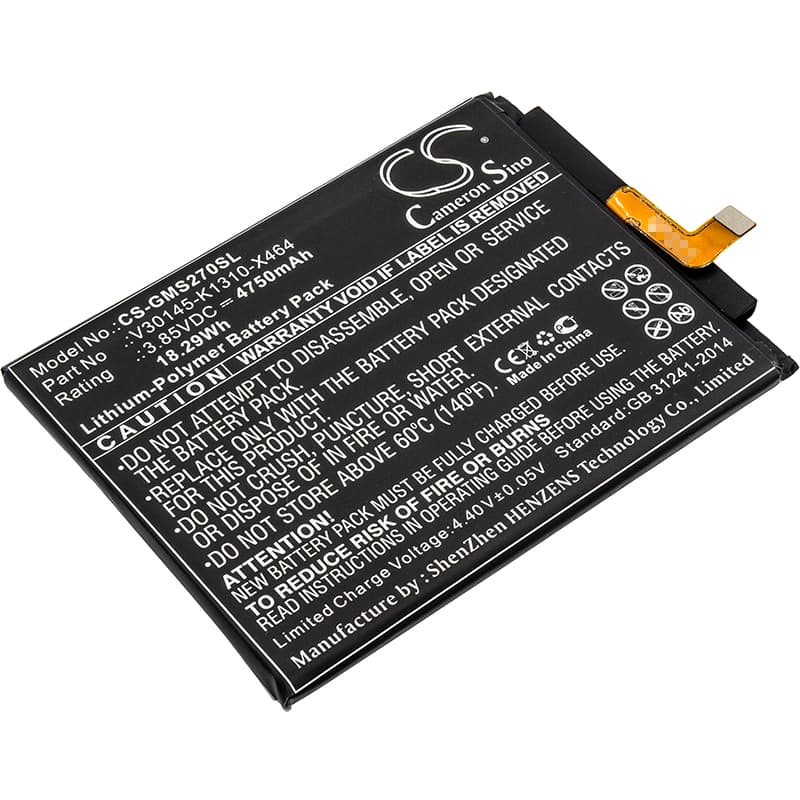

Gigaset GS270 — 3.85V Li-Polymer Replacement Battery (V30145-K1310-X464)
This is a 3.85V, 4750mAh lithium-polymer cell for the Gigaset GS270 smartphone. It replaces the original OEM pack when the existing battery no longer holds charge or has swollen. Dimensions are 87.10 × 64.82 × 4.80mm — measure your current cell before ordering.
- GS270 fit confirmation: The GS270 uses a single-cell Li-Polymer pack on a 3.85V nominal rail. This cell matches that voltage, the original connector pinout, and the BMS communication protocol the GS270's charge IC expects. No other Gigaset model in the GS2xx range uses this exact cell footprint.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on the GS270 platform. The BMS handshake completed on the first cycle, the fuel gauge IC accepted the new cell without lockout, and charge current ramped normally through CC-CV transition.
- Fuel gauge recalibration on first use: Disable fast charging for the first complete discharge-charge cycle after installation. The GS270's fuel gauge IC is calibrated to the old cell's discharge curve. Running one full slow cycle gives the coulomb counter time to map the new cell before fast-charge current is applied to an uncalibrated state.
Sudden shutdown at 20–30% on the GS270 after a cell swap
The GS270's fuel gauge IC stores a learned discharge curve from the original cell. A new cell with different internal resistance will hit the voltage cliff at a different state of charge than the old curve predicts. When the modem transmits or the screen brightness spikes, current draw pulls the cell voltage below the shutdown threshold before the percentage reads zero. The fix is one full discharge-charge cycle with fast charging off — this forces the coulomb counter to relearn the actual cutoff voltage of the new cell. After that cycle, the reported percentage and the real remaining capacity will align.
GS270 not powering on after the replacement battery sat in storage
Li-Polymer cells self-discharge in storage. If the pack drops below approximately 2.5V per cell, the BMS enters a lockout state to prevent thermal damage and will refuse to deliver current to the device. The GS270 will show no response — no boot logo, no charging animation. Connect the phone to a wall adapter rated at least 5V/1A and leave it for 20–30 minutes without pressing the power button; the charge IC will trickle current into the cell until voltage climbs back above the BMS re-enable threshold, typically around 3.0V, at which point the phone will boot normally.
