About this replacement

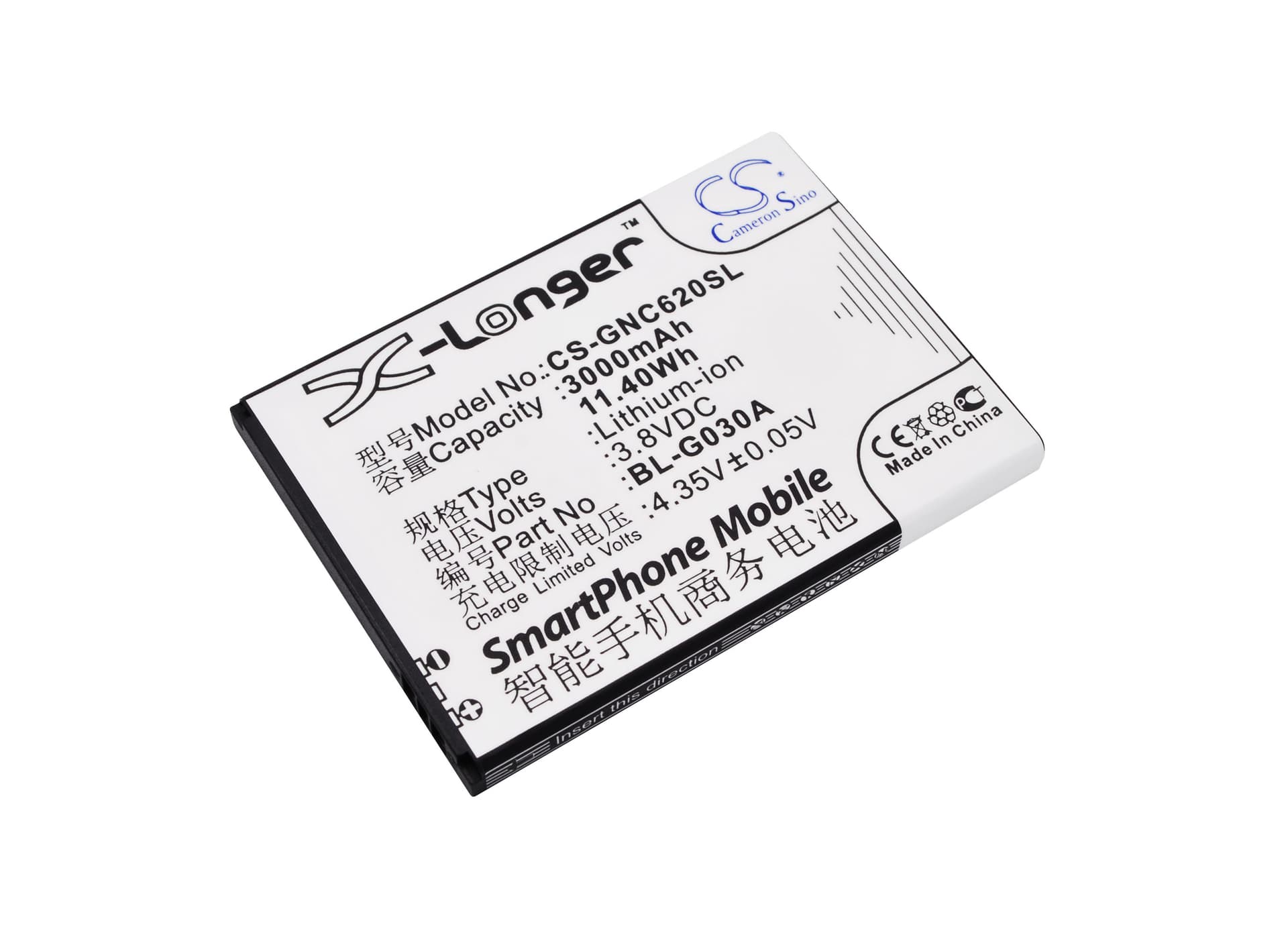

GIONEE GN181 / C620 / C620s — 3.8V Li-ion Replacement Battery (BL-G030A)
This is a 3000mAh Li-ion cell at 3.8V nominal, built to the BL-G030A spec for the GIONEE GN181, C620, and C620s smartphones. It replaces the original cell when capacity has faded through repeated charge cycles or the battery no longer holds a usable charge. Capacity and energy rating match the factory spec at 3000mAh / 11.4Wh.
- GN181, C620, and C620s compatibility: These three models share the same battery bay dimensions, connector pinout, and BMS handshake protocol — all accept the BL-G030A cell without modification.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on a controlled bench rig. The BMS accepted charge current correctly, protection thresholds triggered at expected low-voltage cutoff, and the cell reached rated capacity within two full cycles.
- First-cycle fast charge disable: On first use after installation, turn off fast charging for one full discharge-charge cycle. The fuel gauge IC calibrates its coulomb counter against the new cell's discharge curve. Running high-current fast charge before calibration completes can cause the percentage meter to read incorrectly from the start.
Sudden shutdown at 20–30% on the GN181 after a cell swap
A fresh Li-ion cell has a steeper voltage-discharge curve than a worn cell. The GN181's fuel gauge IC was calibrated to the old, degraded curve, so it misreads remaining charge on the new cell. When the modem transmits or the screen peaks in brightness, current draw spikes. If the IC thinks 25% remains but the actual cell voltage is closer to 3.5V under load, the protection circuit trips and the phone shuts off. One complete discharge to auto-off followed by a full uninterrupted charge brings the coulomb counter back in line with the new cell's actual curve.
USB fast charge not activating on the first cycle after replacement
Some GIONEE handsets gate fast-charge negotiation through a BMS handshake that checks cell impedance on first contact. A new cell at factory state of charge can present higher impedance than the charge IC expects, so the device falls back to standard 5V / 1A charging. This is not a fault in the battery or the charger. Run one full standard-speed charge cycle first — cell impedance drops as the chemistry fully wets — and fast charging typically re-enables automatically on the next plug-in without any further action.
