About this replacement

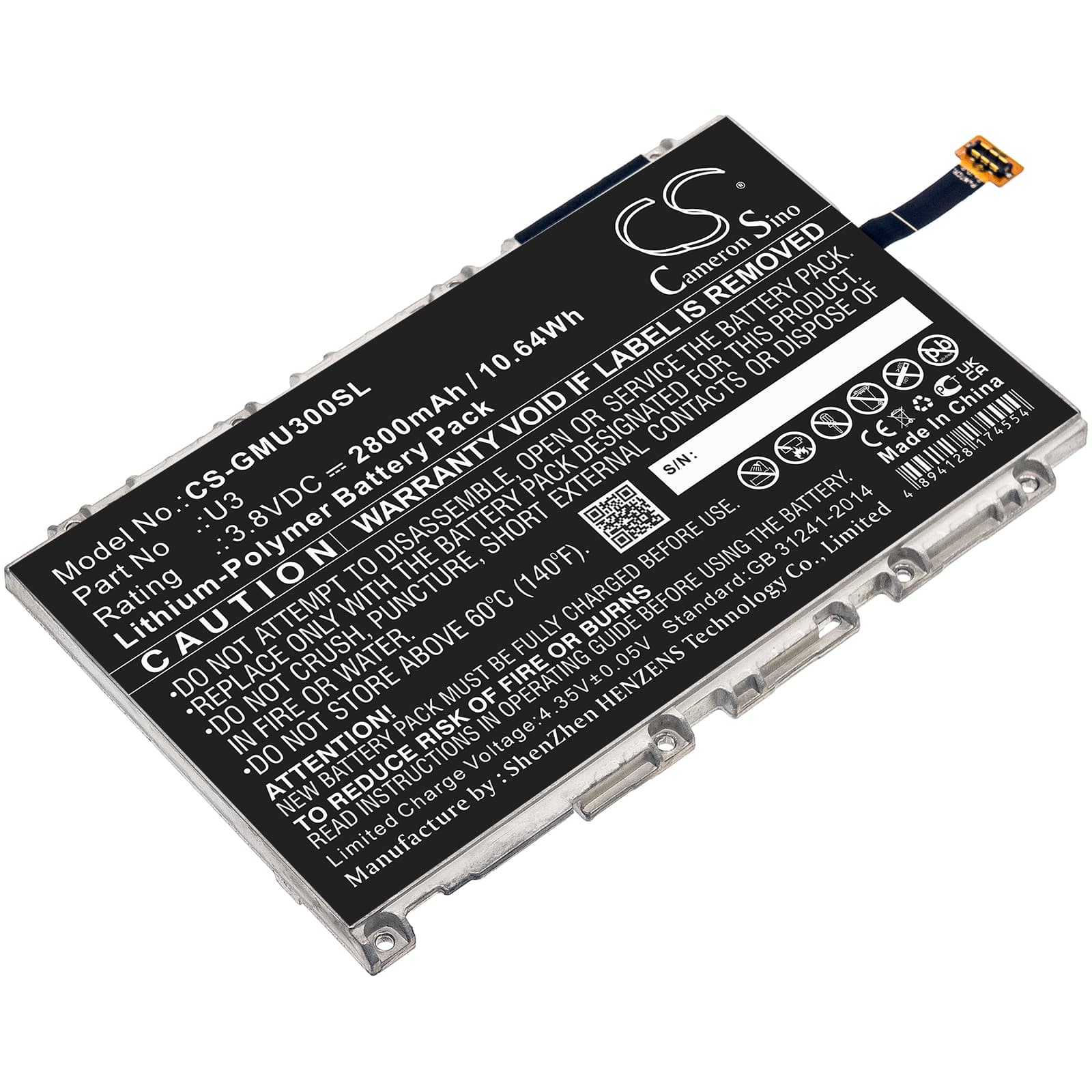

GlocalMe U3 / GLMU19A02W — 3.8V Li-Polymer Replacement Battery
This 3.8V, 2800mAh Li-Polymer battery replaces the original cell in the GlocalMe U3 and GLMU19A02W portable WiFi hotspot. The original battery degrades with charge cycles, reducing the hotspot's ability to sustain combined modem and WiFi load. Swapping it restores full capacity to the power system.
- U3 and GLMU19A02W compatibility: Both models share the same 3.8V power rail, physical cell dimensions (100.50 × 61.40 × 6.30mm), and connector layout — the same replacement cell fits either unit without modification.
- Bench tested on actual hardware: We ran this cell under combined modem and WiFi draw to verify the BMS holds voltage within spec. The protection circuit held stable across the load cycle with no cutoff events.
- Ventilation during extended sessions: Keep the U3 in an open, ventilated spot when running for long periods. When connected devices are far away, the cellular radio increases output power — sustained heat at the cell shortens its cycle life faster than anything else on this device.
Why the U3 drops connected devices mid-session under full load
The U3 runs two power-hungry systems simultaneously — the cellular modem and the WiFi radio. When multiple devices are connected and the hotspot is working hard, combined current draw spikes. If the battery cell has aged below a functional capacity threshold, its internal resistance rises and voltage sags under that peak draw. The BMS reads the sag as a low-voltage event and trips the cutoff to protect the cell, dropping all connected devices instantly.
U3 won't power on after sitting unused for weeks
Li-Polymer cells self-discharge during storage — the U3 draws a small standby current even when off, accelerating that drain. If the cell voltage falls below approximately 3.0V, the BMS locks out the power circuit and the device won't respond to the power button. Connect the hotspot to a charger and leave it for at least 30–60 minutes before attempting to power on — this gives the BMS enough charge to re-enable the output circuit and allow a normal boot.
