About this replacement

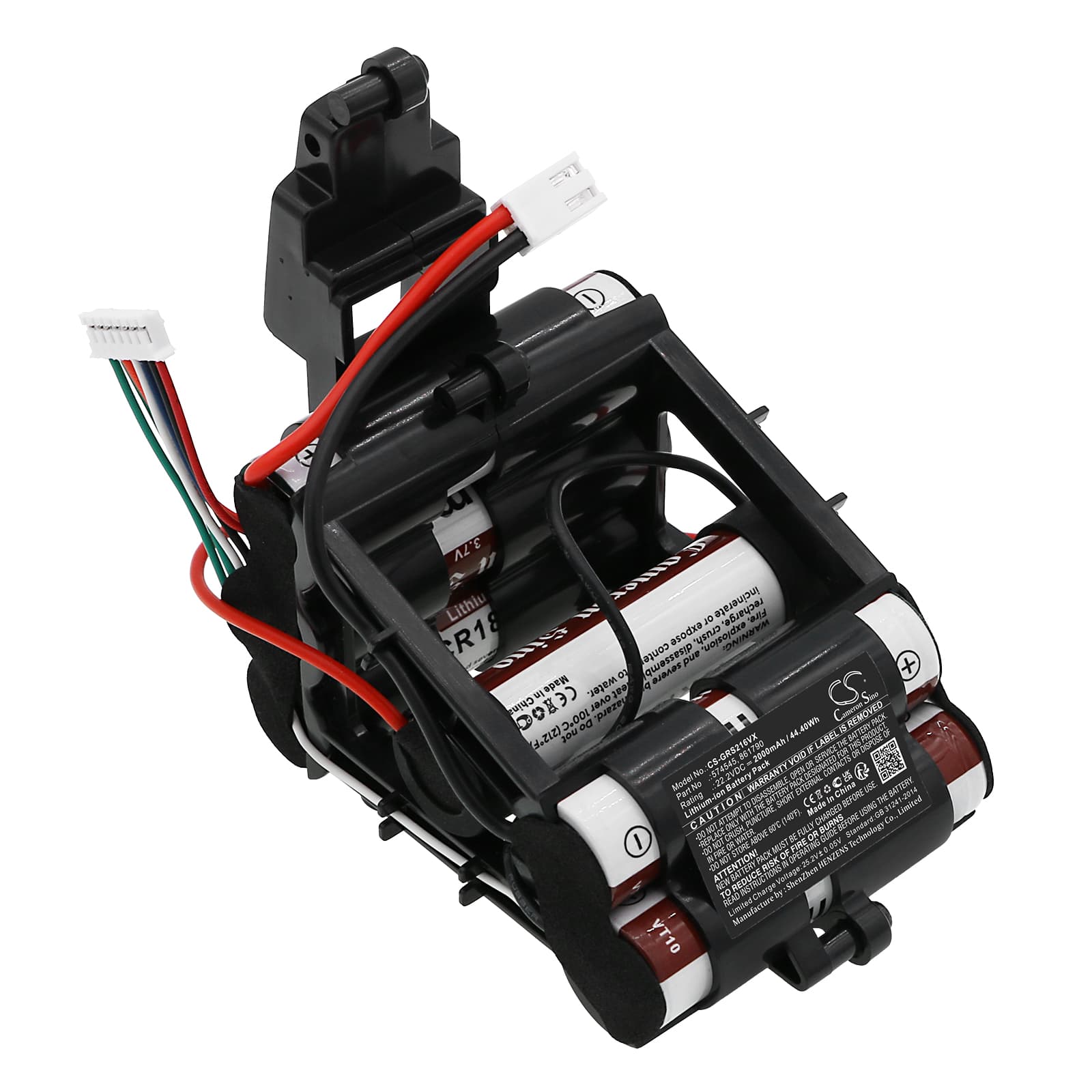

Gorenje SVC216F Series — 22.2V Li-ion Replacement Battery (574545)
This is a 22.2V, 2000mAh lithium-ion replacement battery for the Gorenje SVC216F cordless stick vacuum and related models including the SVC216FGD, VC2932GS, and SVC216FMB. It replaces OEM part numbers 574545 and 861790. The original cell pack degrades after repeated charge cycles — this replacement restores the vacuum's motor voltage to factory spec.
- SVC216F family compatibility: All models in this group share the same 22.2V six-cell Li-ion pack configuration and connector pinout. The BMS communication protocol is consistent across the SVC216F, SVC216FGD, SVC216FMB, and VC2932GS — the vacuum's charge circuit and motor controller recognise the replacement cell without modification.
- Bench tested on actual hardware: We ran this pack through full charge and discharge cycles on a 22.2V vacuum platform. The BMS engaged overcurrent protection correctly under simulated motor-start surge and released cleanly once load normalised. Cell balance across all six cells stayed within 20mV at full charge.
- Dock charging habit on cordless stick vacuums: Do not leave this vacuum on the charging dock permanently. Continuous trickle charging accelerates capacity fade in Li-ion packs faster than any other single factor. Charge to full, then remove from the dock.
Suction dropping on the SVC216F before the battery indicator hits low
This happens when the motor draws more current than rated — usually caused by a partially blocked filter or full dustbin, not a weak battery. The pack voltage sags under the elevated load, which the vacuum interprets as low charge and reduces motor speed. Clean the filter and empty the bin first. If suction recovers immediately, the battery was fine — the restriction was causing the false low-voltage signal.
Motor cutting out mid-clean and restarting after a few seconds
This is a BMS overcurrent trip, not a motor fault. When suction airflow is restricted — blocked filter, clogged brush roll, or pinched hose — the motor draws a sustained high current that breaches the BMS cutoff threshold. The BMS shuts the pack down to protect the cells, then resets once current demand drops. Clear the restriction, then hold the power button for three seconds to reinitialise after the BMS resets.
