About this replacement

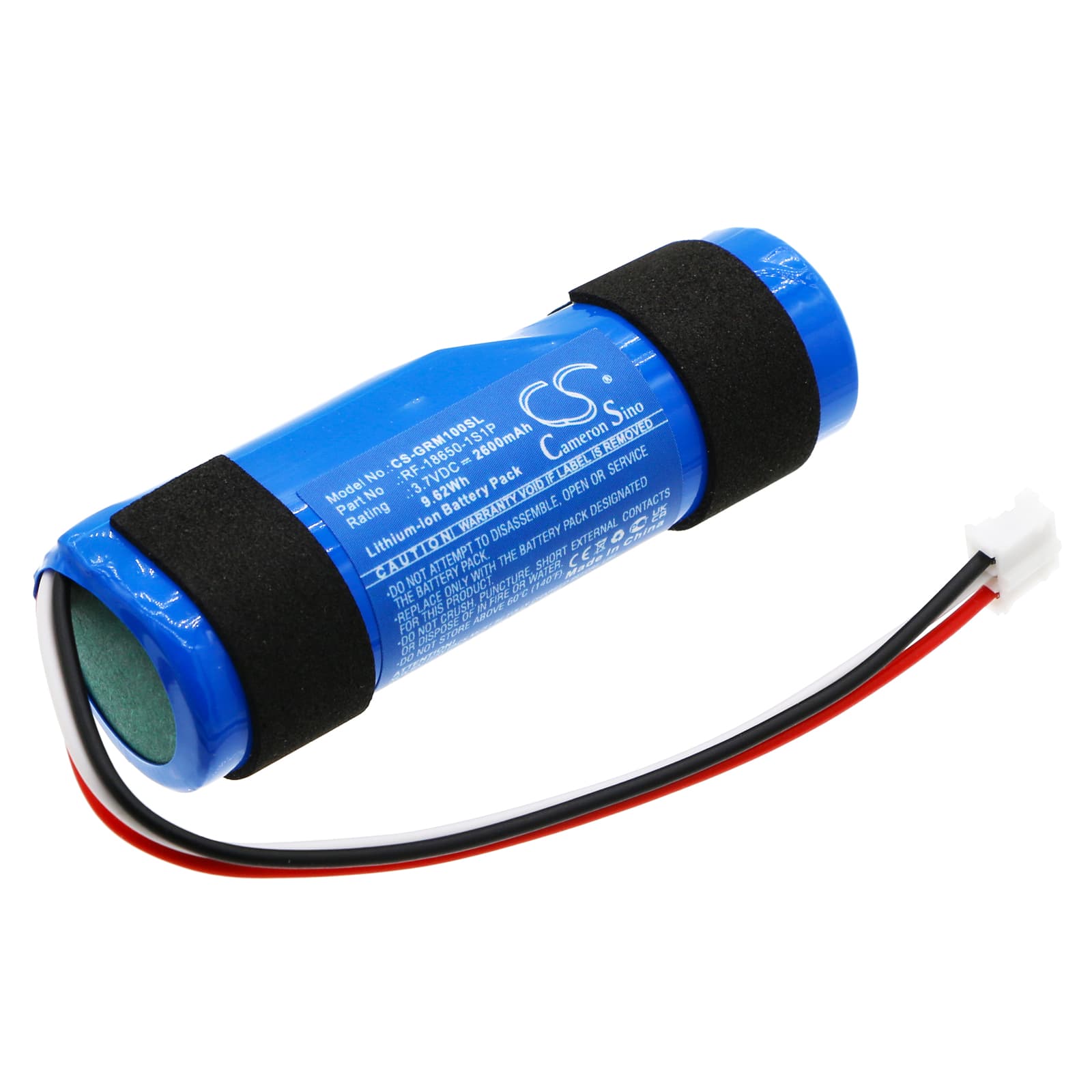

Groove onn Rugged Speaker — 3.7V Li-ion Replacement Battery (RF-18650-1S1P)
This 3.7V 2600mAh (9.62Wh) Li-ion cell replaces the original RF-18650-1S1P battery in the Groove onn Rugged Speaker, Rugged SM, and Wireless LED Speaker. It fits the AAGRY100076371 model number and restores full wireless audio function when the original cell can no longer hold a charge. Voltage and capacity match the factory spec exactly.
- Rugged Speaker and Rugged SM compatibility: These models share the same single-cell 18650 format with identical connector pinout and BMS handshake requirements. The RF-18650-1S1P designation confirms a 1S1P configuration — one cell in series, one in parallel — so any cell substitution must match both voltage and physical dimensions precisely. This one does: 66.00 × 22.50 × 19.80mm.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on a speaker unit with matching BMS. The protection circuit tripped correctly at low-voltage cutoff and accepted charge without fault flags on reconnection. Capacity read within expected tolerance of the rated 2600mAh.
- Fuel gauge reset after installation: After fitting the new cell, run the speaker down past the low-battery warning before recharging — do not top it off immediately. The fuel gauge IC calibrates its empty reference on a real discharge cycle. Skipping this step causes the indicator to misread remaining charge from day one.
Audio distorting before the battery indicator reaches empty
At high volume, the amplifier draws current in short, sharp peaks. As the cell discharges below roughly 3.5V, internal resistance rises and the cell can no longer deliver those peaks without voltage sag. The amplifier clips on the sag, producing audible distortion well before the battery indicator shows empty. A degraded or aged cell hits this sag threshold much earlier in the discharge cycle than a fresh cell at full 2600mAh capacity. Replacing the cell restores the voltage headroom the amplifier needs to run cleanly through the full discharge curve.
Speaker failing to wake from USB charge after sitting unused for weeks
A deeply discharged Li-ion cell — typically below 2.5V — falls outside the voltage window that USB-C power delivery will attempt to charge. The charger presents power, the BMS sees a cell below its wake threshold, and the speaker appears completely dead. To recover it, use a Li-ion charger capable of trickle or recovery mode to bring the cell above 2.8V before attempting USB charge again. If the cell has sat well below 2.5V for an extended period, recovery may not hold — at that point, replacing the cell is the fix, not the charger.
