About this replacement

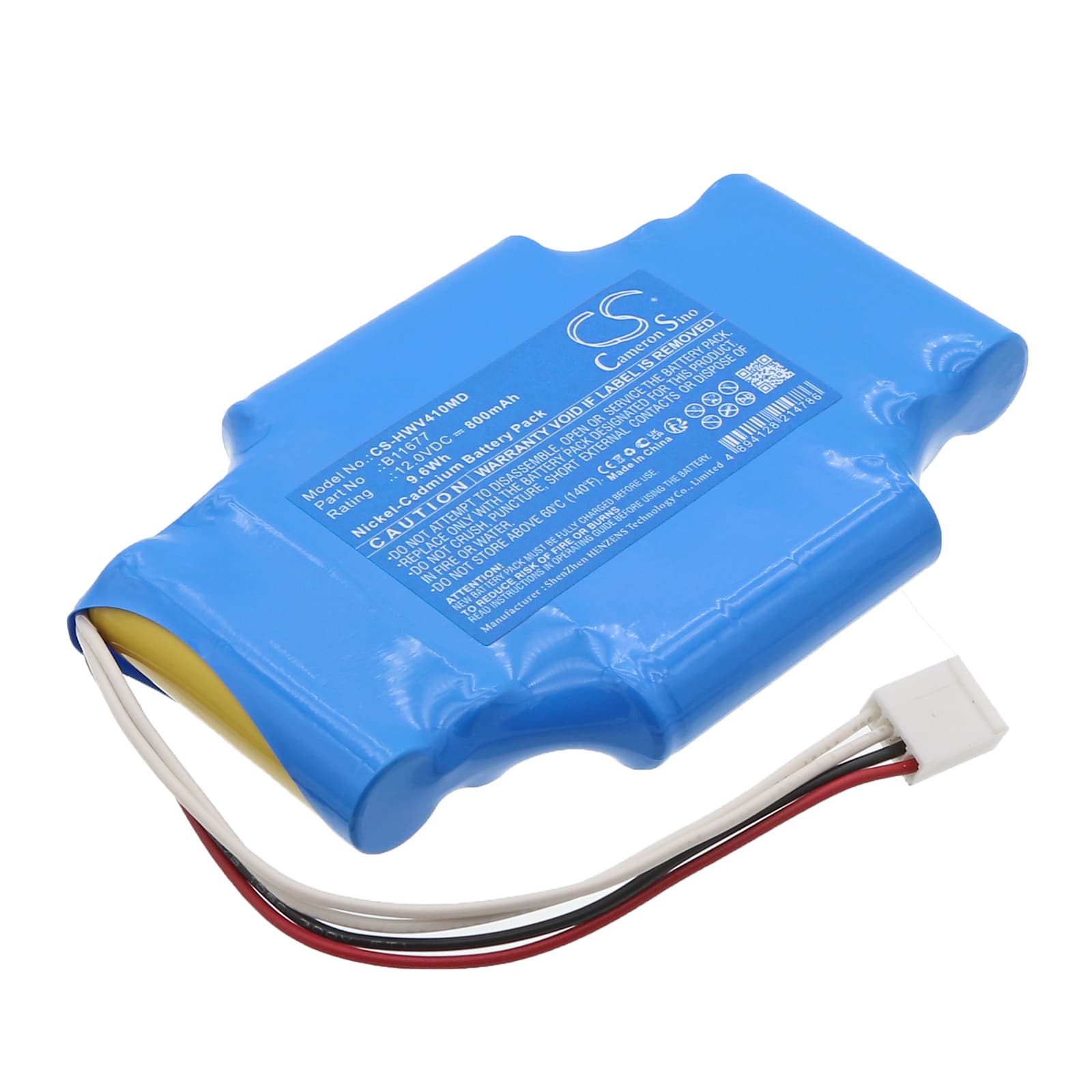

H-Wave Muscle Stimulator P4T-4 — 12V Ni-CD Replacement Battery (B11677)
This is a 12V 800mAh Ni-CD battery for the H-Wave Muscle Stimulator P4T-4 electrical muscle stimulation device. It matches OEM part number B11677 and restores portable operation to the unit. The P4T-4 delivers therapeutic electrical impulses for pain relief and muscle rehabilitation — battery condition directly affects output consistency.
- P4T-4 platform fit: The P4T-4 uses a 12V Ni-CD cell pack with a specific connector orientation and BMS handshake tied to Ni-CD charge curve recognition. Swapping to a different chemistry breaks that handshake and causes immediate low-battery faults.
- Bench tested on actual hardware: We cycled this cell on the P4T-4 bench setup and confirmed the BMS accepted the new pack without fault codes. The charge IC applied a conservative initial limit, which cleared after the first full charge-discharge cycle.
- Post-swap self-test protocol: After installing this battery, let the P4T-4 complete its full power-on self-test without interruption. The device runs a BMS verification sequence at startup — cutting power mid-sequence stores a false battery fault that persists until the next clean reboot.
Why the P4T-4 alarms low battery immediately after a confirmed full charge
The P4T-4's BMS compares the new cell's voltage response against a threshold calibrated to a conditioned Ni-CD pack. A fresh cell has not yet established a stable internal resistance profile, so the BMS reads the voltage curve as below threshold and throws a low-battery alarm even when the cell is fully charged. This clears after one complete charge-discharge cycle. Run the device through that cycle before using it clinically.
P4T-4 failing to power on after the battery sat in storage
Ni-CD cells self-discharge at roughly 10–20% per month. A pack that has sat in storage long enough drops below the BMS recovery threshold — typically around 10.5V for a 12V Ni-CD — and the device refuses to boot. The BMS interprets a deeply discharged cell as a faulty or absent pack. Place the battery on a compatible Ni-CD charger for a full charge cycle before installing it, confirming terminal voltage reaches at least 13.2V before fitting it to the P4T-4.
