Haier P50U1 / S50U1 / Z50U1 — 14.4V Li-ion Replacement Battery (S11-Li-144-2600)

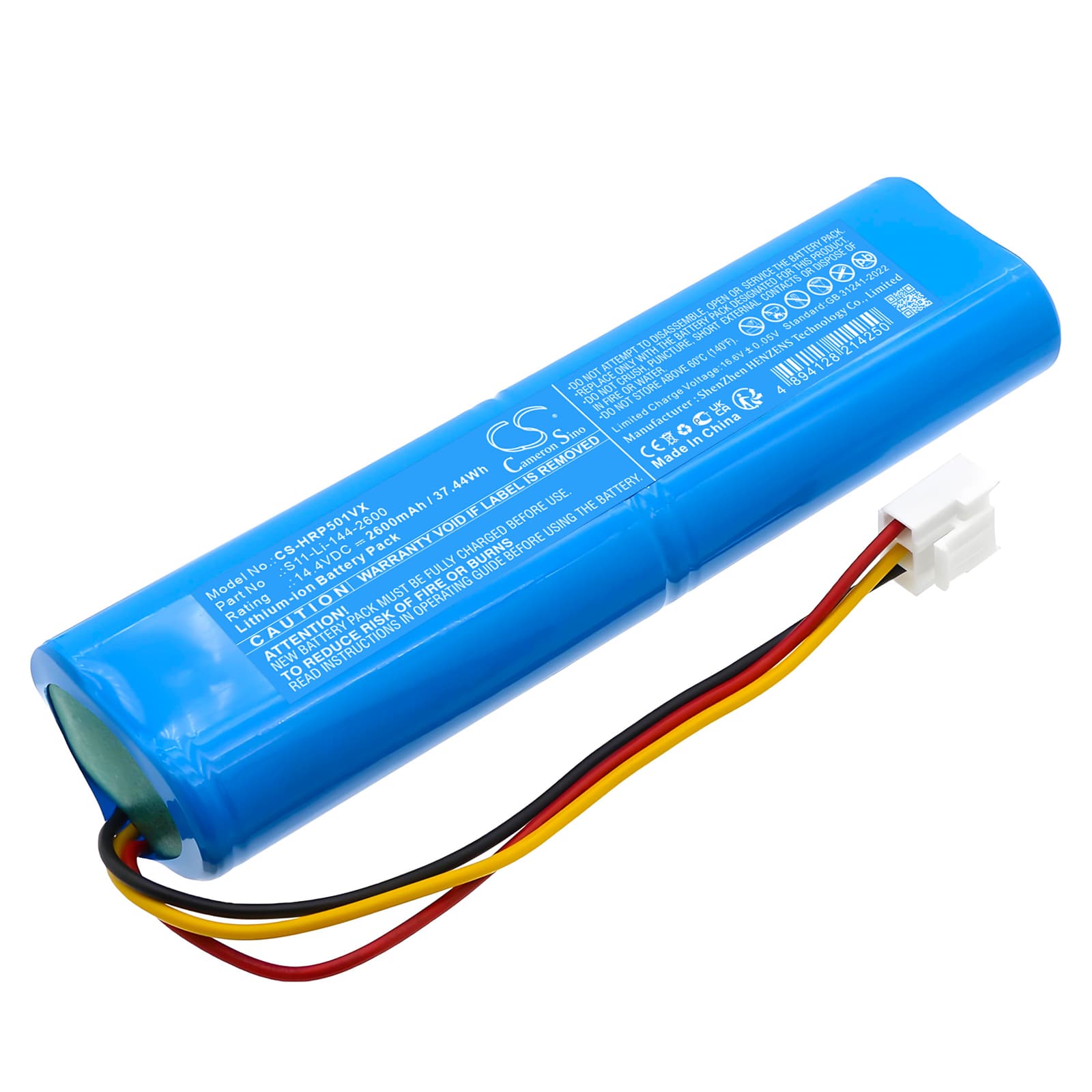

This is a 14.4V 2600mAh (37.44Wh) Li-ion replacement battery for the Haier P50U1, S50U1, and Z50U1 cordless handheld vacuum cleaners. It replaces OEM part number S11-Li-144-2600 and installs directly into the battery compartment of all three models. Order this when the original cell no longer holds charge or the vacuum dies shortly after leaving the dock.
- P50U1, S50U1, and Z50U1 compatibility: All three models share the same 14.4V battery rail, connector pinout, and BMS handshake protocol. A single cell revision covers the full range — no model-specific variant is needed.
- Bench tested on actual hardware: We cycled this cell through repeated motor-start and sustained-draw loads. The BMS held protection thresholds correctly and did not trip on normal suction cycles across hard floor and carpet settings.
- Dock charging habit for these models: Do not leave the P50U1 or its siblings sitting on the charging dock permanently. Continuous trickle charge accelerates capacity fade on this cell chemistry far faster than charge-on-depletion use. Charge fully, then remove from the dock.
Cordless vacuum losing suction before the battery indicator reaches low
The battery indicator on these Haier models reads state-of-charge at rest voltage, not under load. When the motor draws hard against a blocked filter or dense carpet, cell voltage sags below the motor's operating threshold before the indicator registers low. The result is noticeably weaker suction while the display still shows partial charge. Clean or replace the filter first — a restricted airway forces the motor to pull more current, which deepens voltage sag on every cycle and speeds up apparent capacity loss.
Motor cuts out mid-clean then recovers after a few seconds
This is a BMS overcurrent trip, not a dead battery. When suction is blocked — a clogged filter, a hair wrap on the brush roll, or a hard seal against upholstery — current draw spikes past the cell's protection threshold and the BMS opens the circuit. After a few seconds the BMS resets and the motor restarts. Clearing the blockage stops the trip from recurring. If cut-outs continue on a clean, unobstructed vacuum, measure resting pack voltage — a healthy 14.4V cell should read above 15.5V fully charged.
