About this replacement

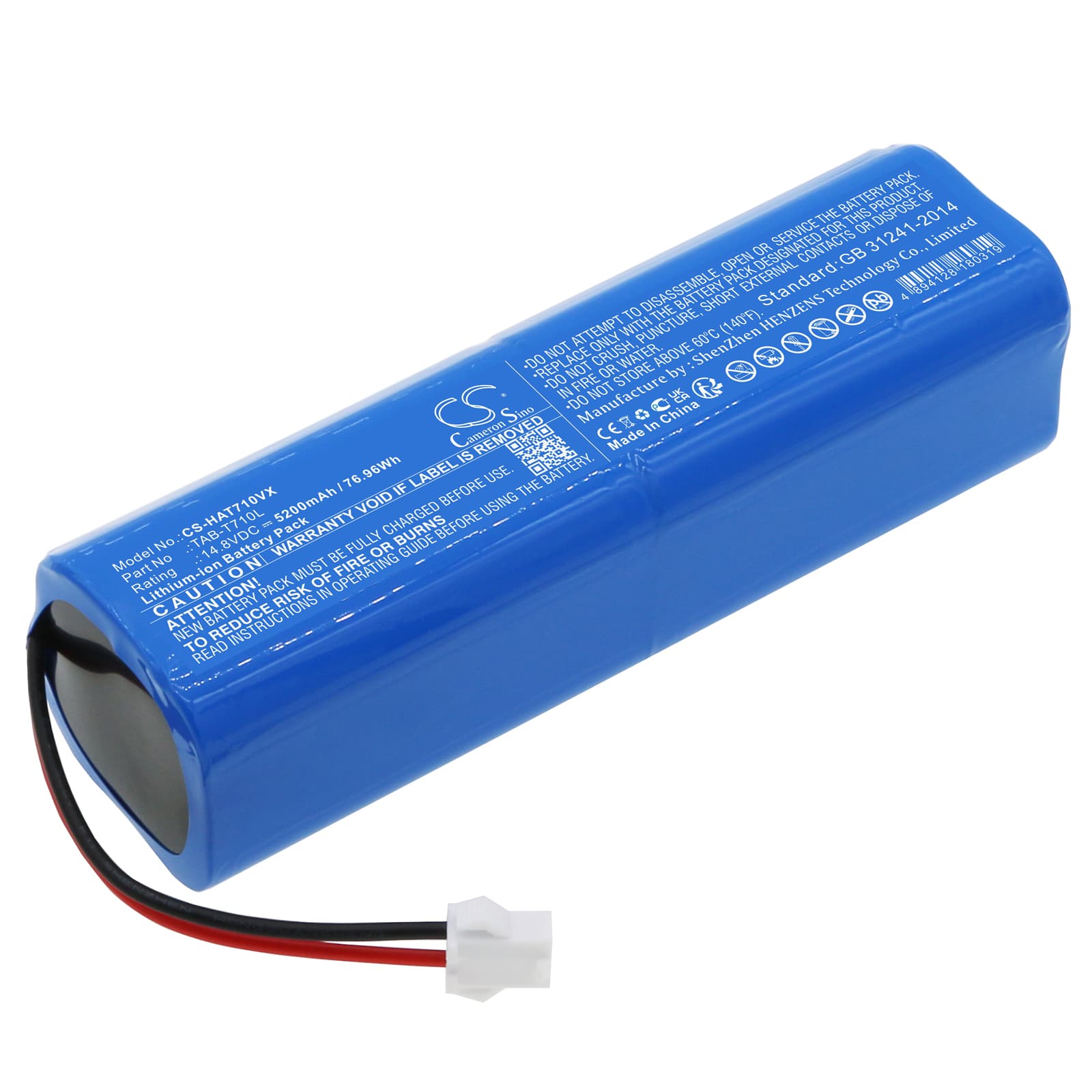

Haier TP53 / TT53 Series — 14.8V Li-ion Replacement Battery (TAB-T710L)
This is a 14.8V, 5200mAh Li-ion battery for the Haier TP53, TT53, and TT53 Pro cordless stick vacuums. It replaces OEM part number TAB-T710L. Capacity is rated at 76.96Wh — identical to the original cell configuration these vacuums shipped with.
- TP53 and TT53 platform fit: These models share the same 14.8V four-cell Li-ion architecture, battery bay dimensions, and BMS handshake protocol — one battery covers the full range without modification.
- Bench tested on actual hardware: We ran this battery through repeated motor-start cycles on the TP53. The BMS held stable under sustained suction load and tripped correctly when airflow was deliberately blocked — no false cutoffs under normal use.
- Dock charging habit on cordless vacuums: Do not leave the vacuum sitting on the charging dock permanently. Continuous trickle charging degrades Li-ion cell capacity faster than regular charge-and-remove cycles. Charge to full, then pull it off the dock.
Suction dropping before the battery indicator reaches low
On the TP53 and TT53, suction loss often hits well before the battery LED shows a low warning. The motor draws harder when the filter is partially blocked, pulling more current than the BMS is rated to sustain at full throttle. Voltage sags under that elevated draw, and the motor slows — even though the cells still hold charge. Clean or replace the filter first. If suction recovers, the battery was not the problem.
Motor cutting out mid-clean and recovering after a pause
This cutout-and-recover pattern is a BMS overcurrent trip, not a failed battery. When restricted airflow forces the motor to sustain a high-current draw, the BMS shuts the output rail to protect the cells. A short pause resets the trip and power returns. Check the filter and brush roll for blockages first — if the cutouts stop after clearing them, the BMS is working as intended. If cutouts continue with a clean filter, measure resting voltage across the terminals; it should read 16.0–16.8V on a full charge.
