About this replacement

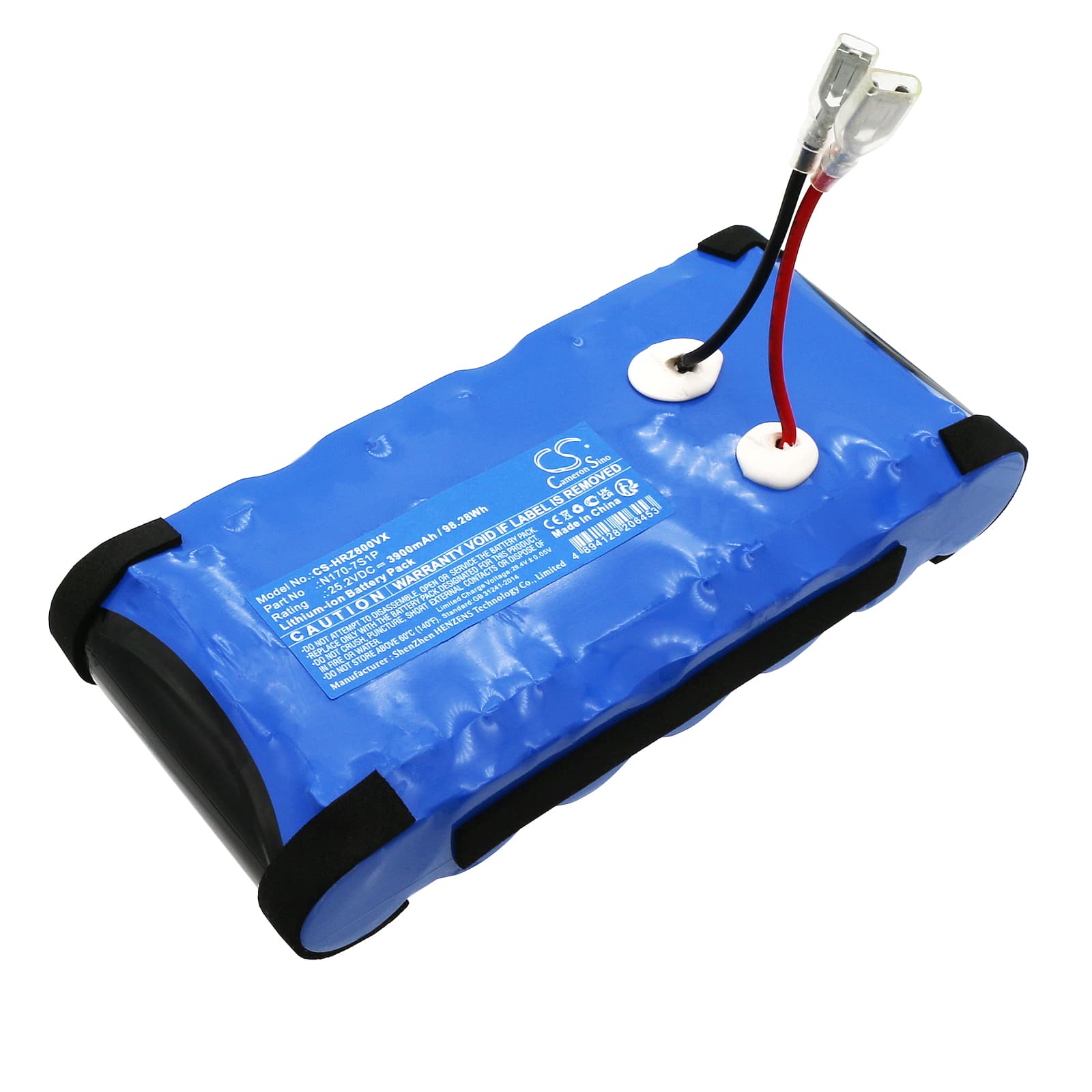

Haier Z9 Pro Series — 25.2V Li-ion Replacement Battery (N170-7S1P)
This is a 25.2V, 3900mAh lithium-ion battery pack for the Haier Z9 Pro cordless stick vacuum. It also fits the E9-ProU1, Z10-WU1, and Z8, among others — all models that share the N170-7S1P form factor and BMS handshake. Capacity is 98.28Wh.
- Z9 Pro, E9-ProU1, Z10-WU1, Z8 compatibility: These models share the same 25.2V cell configuration, connector pinout, and BMS communication protocol. Swapping the N170-7S1P pack between any of them does not require re-pairing or firmware changes — the handshake is handled at the BMS level.
- Bench tested on actual hardware: We ran this pack through full charge and discharge cycles on the Z9 Pro platform. The BMS held cell balancing across the 7S cell string without tripping overcurrent protection under sustained motor load at max suction mode.
- Dock charging habit on cordless stick vacuums: Do not leave the Z9 Pro sitting on the charging dock permanently. Continuous trickle charge accelerates capacity fade on this cell configuration. Charge to full, then remove the vacuum from the dock until the next use.
Suction dropping before the battery indicator reaches low on the Z9 Pro
This happens when the motor draws more current than the BMS expects — usually caused by a partially blocked filter or brush roll, not a failing battery. The pack's BMS interprets sustained high draw as a stress event and steps down voltage to the motor before the fuel gauge triggers. Clean the filter and check the brush roll for hair wrap first. If suction recovers, the battery is not the cause. If suction remains weak with a clean filter, check cell voltage at rest — a healthy pack should read above 24V off charge.
Motor cuts out mid-use then restarts on its own
This is a BMS overcurrent trip, not a power switch fault. When restricted airflow forces the motor to work harder, current draw spikes past the BMS cutoff threshold and the pack shuts output to protect the cells. The BMS resets after a few seconds, which is why the vacuum restarts without you doing anything. Check the filter, inlet, and brush roll for blockages before assuming the battery is faulty. If cut-outs continue with clean airflow, the original pack's cells may have degraded below the minimum voltage threshold — at that point, replacement is the correct fix.
