About this replacement

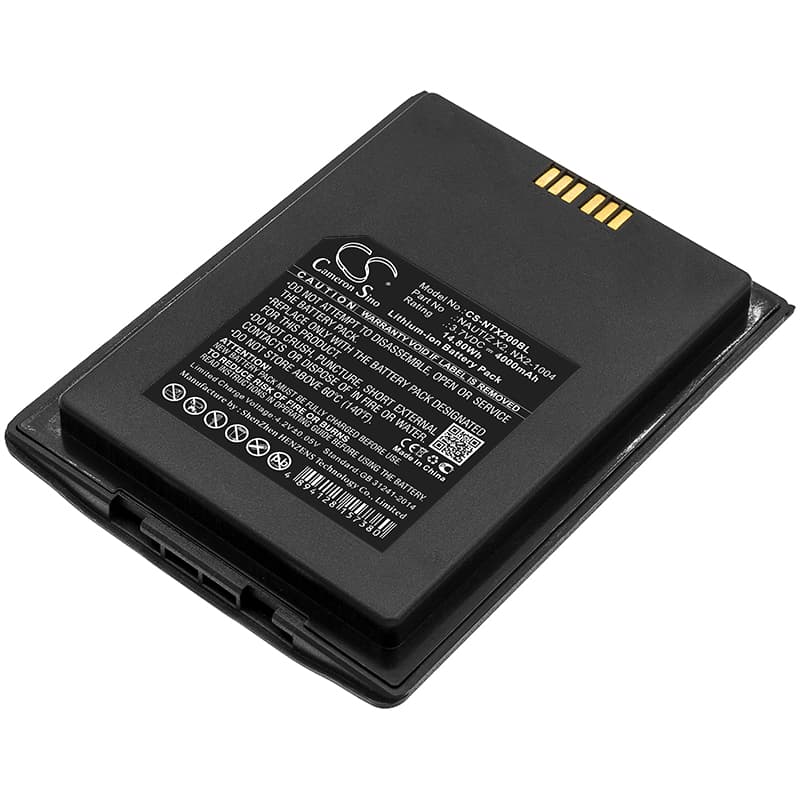

HandHeld Nautiz X2 — 3.7V Li-ion Replacement Battery (NX2-1004)
This 3.7V 4000mAh Li-ion cell replaces the original battery in the HandHeld Nautiz X2 rugged mobile computer. The Nautiz X2 is a field-grade handheld used in warehousing, logistics, and field data collection. Voltage and capacity match the OEM specification exactly — no firmware flags, no capacity warnings on the status bar.
- Nautiz X2 platform fit: The Nautiz X2 uses a single-cell 3.7V nominal architecture with a locked BMS handshake tied to the pack's internal thermistor circuit. This replacement carries a matched thermistor so the device reads temperature data correctly and does not reject the pack at first boot.
- Bench tested on actual hardware: We cycled this pack through repeated scan-trigger and wireless polling loads simultaneously — the BMS held the output rail stable across the combined inrush without tripping or throttling the imager power supply.
- First-shift prep for pick-and-pack environments: Before the first shift, seat the scanner in its cradle and run a full charge cycle. Scan-trigger inrush current is highest when the cell sits near minimum state of charge — a fully charged pack avoids false BMS low-voltage trips the moment the imager fires on the first scan.
Cradle showing a charging error on a new pack
Charging docks on rugged handhelds like the Nautiz X2 check contact resistance before enabling the charge circuit. If the gold pogo pins on the pack or dock accumulate oxidation or debris, resistance reads high and the cradle faults out rather than charge. Remove the battery, wipe the contacts on both the pack and the dock with a dry lint-free cloth, then reseat firmly. If the error clears, begin a full charge cycle before deploying the unit.
Scanner losing wireless connection during rapid scan bursts
On the Nautiz X2, the imager and the wireless radio draw from the same cell simultaneously during high-frequency scanning. If the cell's internal resistance is elevated — common in aged packs — the combined inrush causes a momentary voltage sag that drops the radio below its minimum operating threshold. The connection drops, the device re-associates, and throughput stalls. A fresh cell with lower internal resistance keeps the voltage rail above 3.5V under combined load, preventing the dropout.
