About this replacement

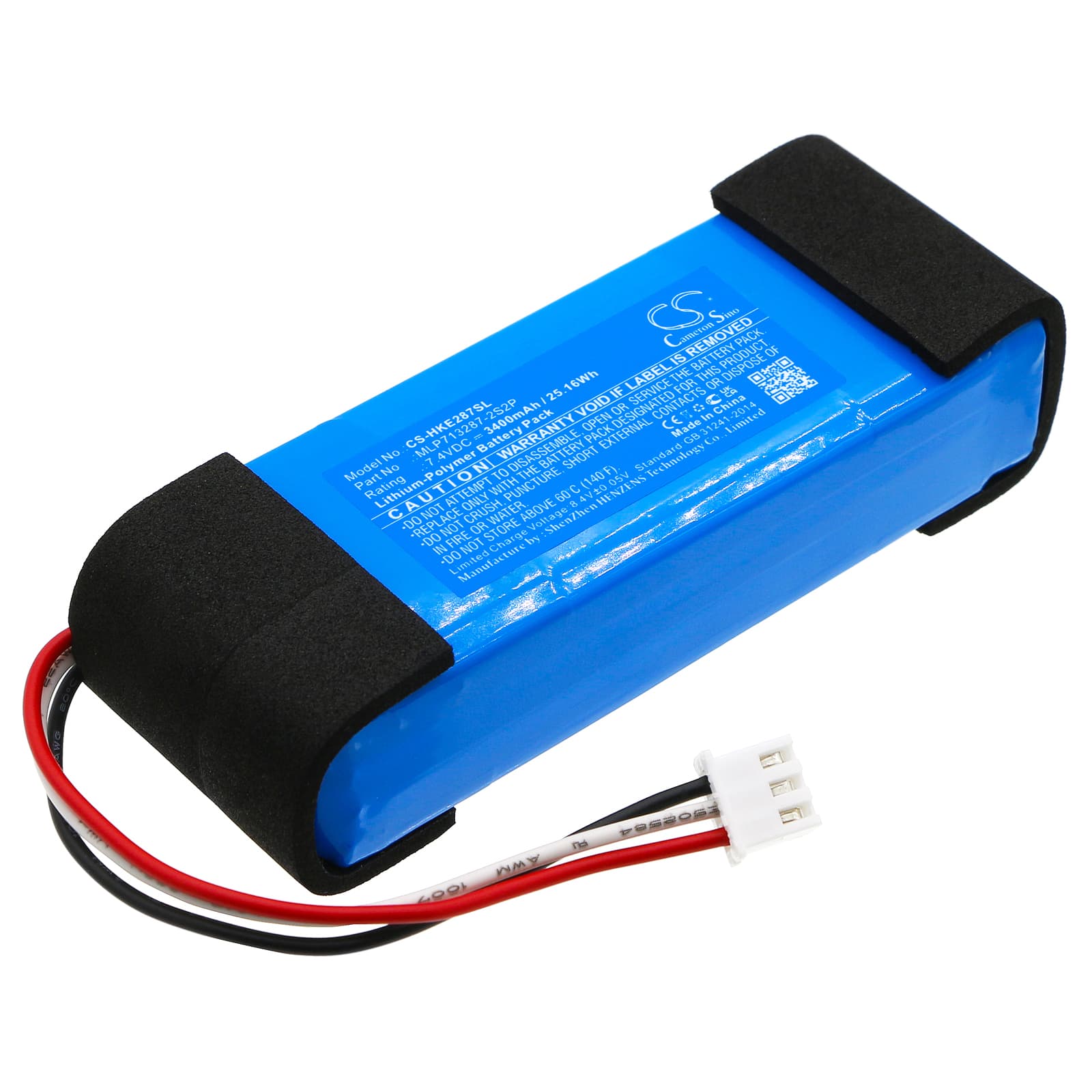

Harman/Kardon Esquire — 7.4V Li-Polymer Replacement Battery (MLP713287-2S2P)
This 7.4V, 3400mAh Li-Polymer battery replaces the MLP713287-2S2P cell in the Harman/Kardon Esquire portable Bluetooth speaker. It restores wireless operation when the original pack no longer holds a usable charge. Dimensions are 90.80 × 32.00 × 24.00mm — confirm clearance before fitting.
- Esquire platform fit: The Esquire uses a 2S2P lithium-polymer configuration at 7.4V nominal. This replacement matches that cell arrangement, connector pinout, and BMS handshake so the speaker's charge indicator reads correctly after swap.
- Bench tested on actual hardware: We cycled this pack through charge and discharge on the Esquire platform. The BMS held voltage within spec across the amplifier and Bluetooth radio draw, and the charge circuit accepted the pack without fault flags.
- Monthly discharge cycle for Esquire users: If the Esquire sits on a desk and gets topped off constantly, let it run below 20% at least once a month before recharging. Continuous shallow cycling causes fuel gauge drift on the 2S2P pack — the indicator starts reading full when the cell is not.
Audio distorting before the battery indicator reaches empty
The Esquire's amplifier needs a clean voltage rail above roughly 6.8V to drive the drivers without clipping. As the 2S2P pack ages, internal resistance rises and voltage sags under amplifier load — even when the indicator still shows one or two bars. The result is audible distortion at moderate-to-high volume before the speaker actually shuts down. A fresh pack at 7.4V nominal eliminates the sag and pushes the distortion threshold back to near-empty.
Esquire won't wake from USB charge after sitting unused for weeks
Li-Polymer cells self-discharge at roughly 2–5% per month. Leave the Esquire stored without a charge for two months or more and the pack can drop below the USB-C minimum acceptance voltage — the charger sees a dead cell and won't initiate current flow. To recover the pack, connect to a 5V USB source and hold the power button for 10–15 seconds. If the BMS doesn't re-initialise within two minutes, the cell has dropped below the safe recovery threshold and replacement is the correct fix.
