About this replacement

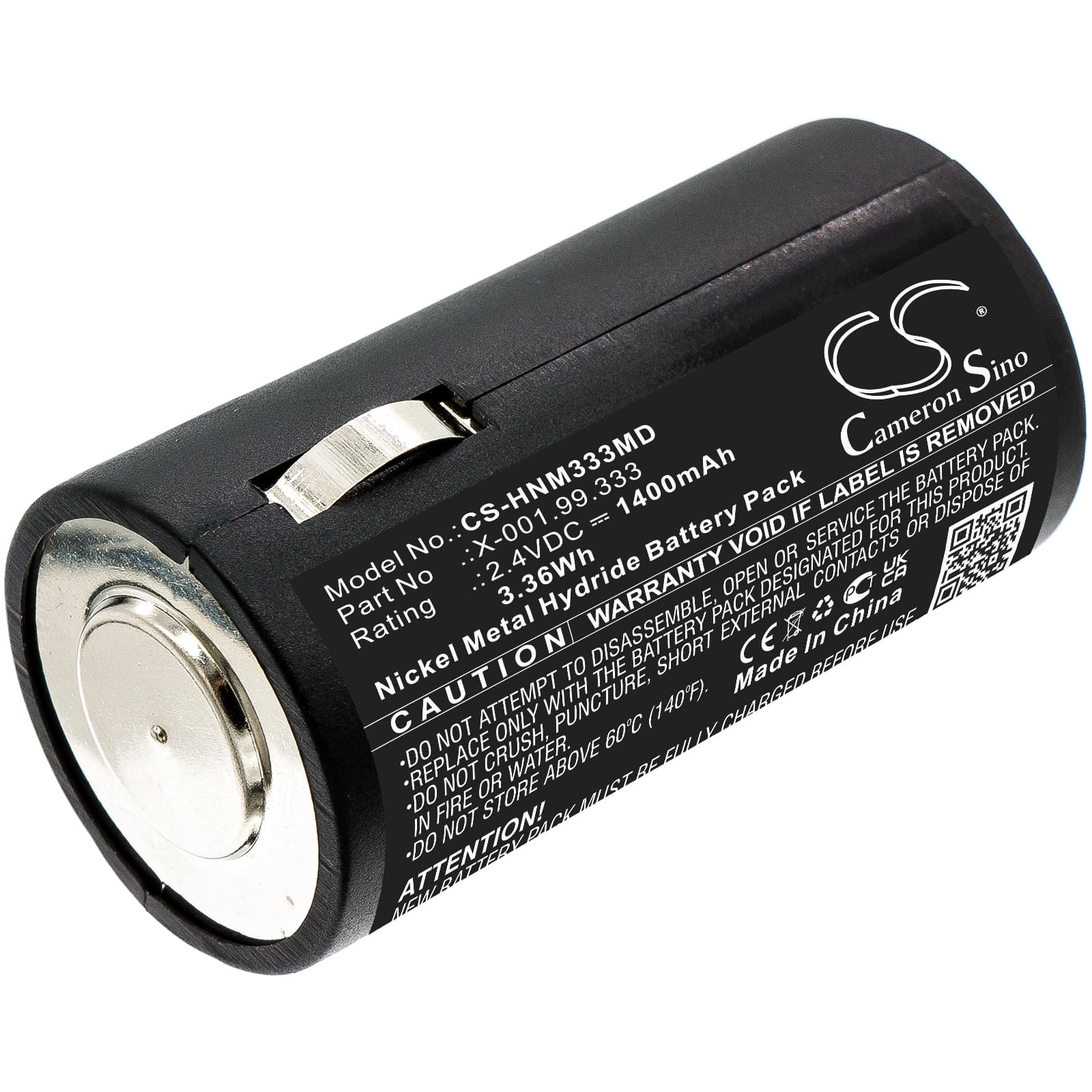

Heine Old S2Z Handles — 2.4V Ni-MH Replacement Battery (X-001.99.333)
This is a 2.4V, 1400mAh Ni-MH replacement battery for Heine Old S2Z diagnostic instrument handles. It fits the handle body used with Heine otoscopes and ophthalmoscopes in clinical settings. Voltage and cell format match the original X-001.99.333 specification.
- Old S2Z handle fit: The Old S2Z handle series uses a fixed 2.4V two-cell Ni-MH configuration with a specific connector and BMS handshake. Swapping chemistry or voltage outside this spec triggers a fault condition on the handle's charge controller, so cell matching matters here more than it does in consumer tools.
- Bench tested on actual hardware: We cycled this cell through the S2Z handle's charge circuit and confirmed the BMS accepted the new cell without fault flags. Charge termination triggered correctly at full capacity, and the handle completed its power-on self-test without interruption on the first full cycle.
- First-use protocol on medical diagnostic handles: After fitting this battery, let the handle run its full power-on self-test sequence without switching it off mid-cycle. The S2Z charge controller runs a BMS verification pass at startup — interrupting it before completion locks in a false battery fault that will persist until the next complete reboot and full charge cycle.
Why the S2Z handle alarms low battery immediately after a confirmed full charge
The S2Z charge controller uses a delta-V termination curve calibrated to the original cell's internal resistance profile. A new replacement cell has a slightly different resistance signature on the first charge, which can cause the controller to read remaining capacity as lower than actual. This is not a fault with the cell — it resolves after one complete charge-discharge cycle. Run the handle to normal shutdown, then charge fully to 2.4V before returning it to clinical rotation.
Handle will not power on after the replacement cell sat in storage
Ni-MH cells self-discharge during storage, and a deeply discharged cell can drop below the BMS recovery threshold — typically under 1.0V per cell — at which point the S2Z controller will not initiate a charge cycle at all. Place the handle on its charger base and leave it connected for a minimum of 30 minutes without interruption. This allows the charge IC to apply a low-current recovery trickle before switching to the main charge profile. If the charge indicator shows no activity after 30 minutes, check the charger contact pins for oxidation.
