About this replacement

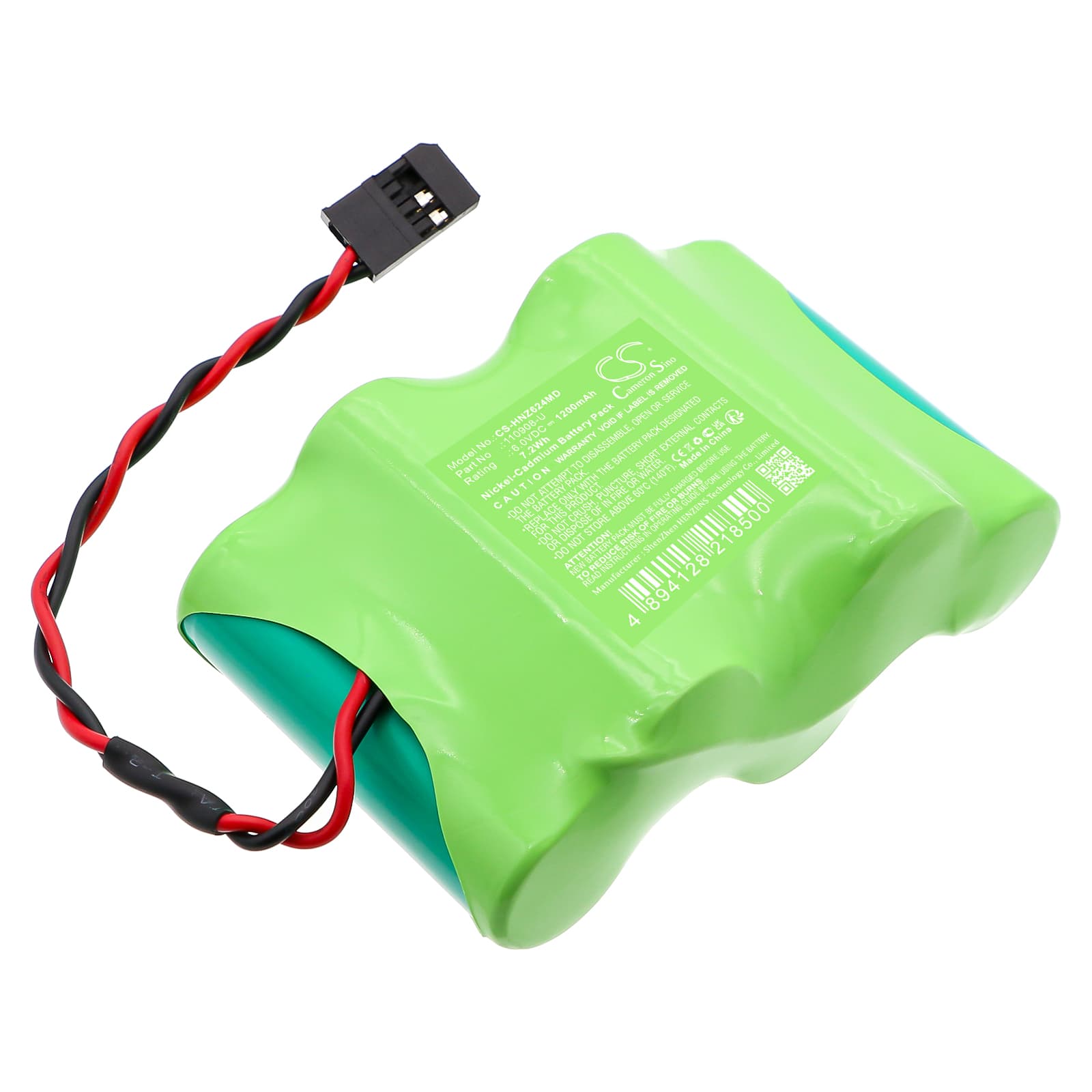

Heine X-004.99.641 / X-04.99.623 / X-04.99.624 — 6V Ni-Cd Replacement Battery (110908-U)
This is a 6V 1200mAh Ni-Cd battery for Heine handheld diagnostic instruments, including otoscopes and related examination devices. It fits the X-004.99.641, X-04.99.623, X-04.99.624, and battery box handle units. Capacity is 7.2Wh, matching the OEM specification for these instrument handles.
- X-004.99.641 and related handle compatibility: These Heine handles share the same 6V Ni-Cd power rail, connector footprint, and BMS handshake requirement. Swapping between handle models in this family does not require a different cell configuration — voltage and connector are consistent across the range.
- Bench tested on actual hardware: We cycled this cell through charge and discharge under the instrument's typical load profile. The BMS accepted the cell, completed its verification handshake, and held voltage within the expected window across the full discharge curve.
- First-cycle self-test protocol: After installing this battery, allow the instrument to complete its full power-on self-test without interrupting the startup sequence. Heine diagnostic handles run BMS verification at startup — cutting power during this window registers a false battery fault that persists until the next full reboot.
Why the Heine handle shows a low battery alarm immediately after a confirmed full charge
Heine diagnostic instruments use a BMS threshold calibrated to the internal resistance profile of a conditioned OEM cell. A new replacement cell starts with a higher internal resistance than a broken-in cell, and the BMS reads this as a low-charge condition even when the cell is at full voltage. This is not a fault with the battery — it is the BMS applying its conservative detection logic to an unconditioned cell. Running one complete charge-discharge cycle allows the BMS to recalibrate its baseline and the alarm clears. After that first cycle, the instrument reads charge state accurately.
Device will not power on after the battery sat unused in storage
Ni-Cd cells self-discharge at roughly 1–2% per day. A battery left in storage for several weeks can drop below the BMS recovery threshold — typically around 5.4V for a 6V Ni-Cd pack — at which point the instrument will not respond to the power button at all. This is not a dead cell; it is a BMS lockout state triggered by undervoltage. Place the battery on charge for a minimum of 14 hours using the Heine-compatible charger to allow the charge IC to trickle the cell back above the recovery threshold before the BMS re-enables the output. Once the pack reads above 5.8V on a multimeter, the instrument should power on normally.
