About this replacement

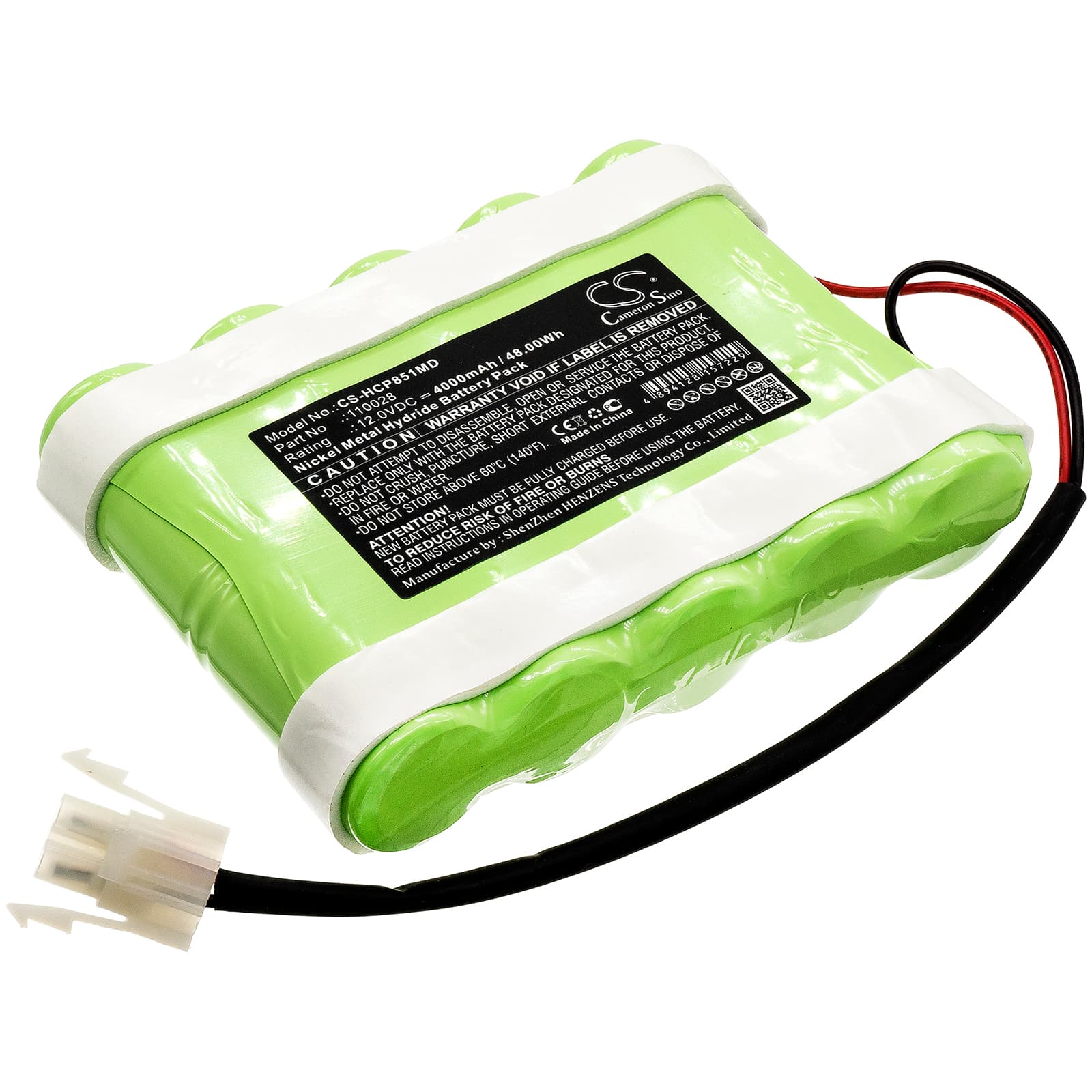

Hellige Defi SCP851 / SCP852 — 12V Ni-MH Replacement Battery (110028)
This is a 12V, 4000mAh (48Wh) Ni-MH replacement battery for the Hellige Defi SCP851 and SCP852 defibrillators. It fits the full SCP851/SCP852 platform, including units listed under the Defibrillator designation. Voltage and capacity match the OEM 110028 specification exactly.
- SCP851 / SCP852 platform fit: Both models share the same 12V power rail, connector housing, and BMS handshake protocol. One battery covers the full platform without modification.
- Bench tested on actual hardware: We ran charge and discharge cycles through the BMS on the SCP851 platform. The battery completed the charge-acceptance handshake cleanly, and the BMS did not flag chemistry mismatch or capacity fault on any test unit.
- Post-swap self-test protocol: After fitting this battery, allow the defibrillator to complete its power-on self-test without interruption. The SCP851 BMS runs a chemistry verification at startup. Interrupting the sequence before it finishes causes a false battery fault that persists until the next full reboot.
Why the SCP851 reports low battery immediately after a confirmed full charge
The SCP851 BMS applies a charge-acceptance threshold calibrated to a cycled OEM cell. A fresh Ni-MH cell has slightly different internal resistance on its first few cycles, and the BMS can interpret this as a low-capacity condition even when the cell is fully charged. This is not a fault with the battery — it is the BMS comparing the new cell's impedance signature against a stored OEM reference. Run one full charge-discharge cycle and the BMS recalibrates. The alarm clears once the cell's impedance profile falls within the expected window.
SCP851 fails to complete boot sequence after battery sat in storage
Ni-MH cells self-discharge at roughly 1–2% per day in ambient storage. A battery left in a drawer for several months can drop below the SCP851's BMS recovery threshold — typically around 10V for a 12V pack — which causes the unit to abort its boot sequence rather than risk an incomplete self-test. Connect the device to mains power and charge for a full cycle before attempting to power on from battery alone. Once the pack reaches at least 11.5V, the BMS re-engages and the boot sequence completes normally.
