About this replacement

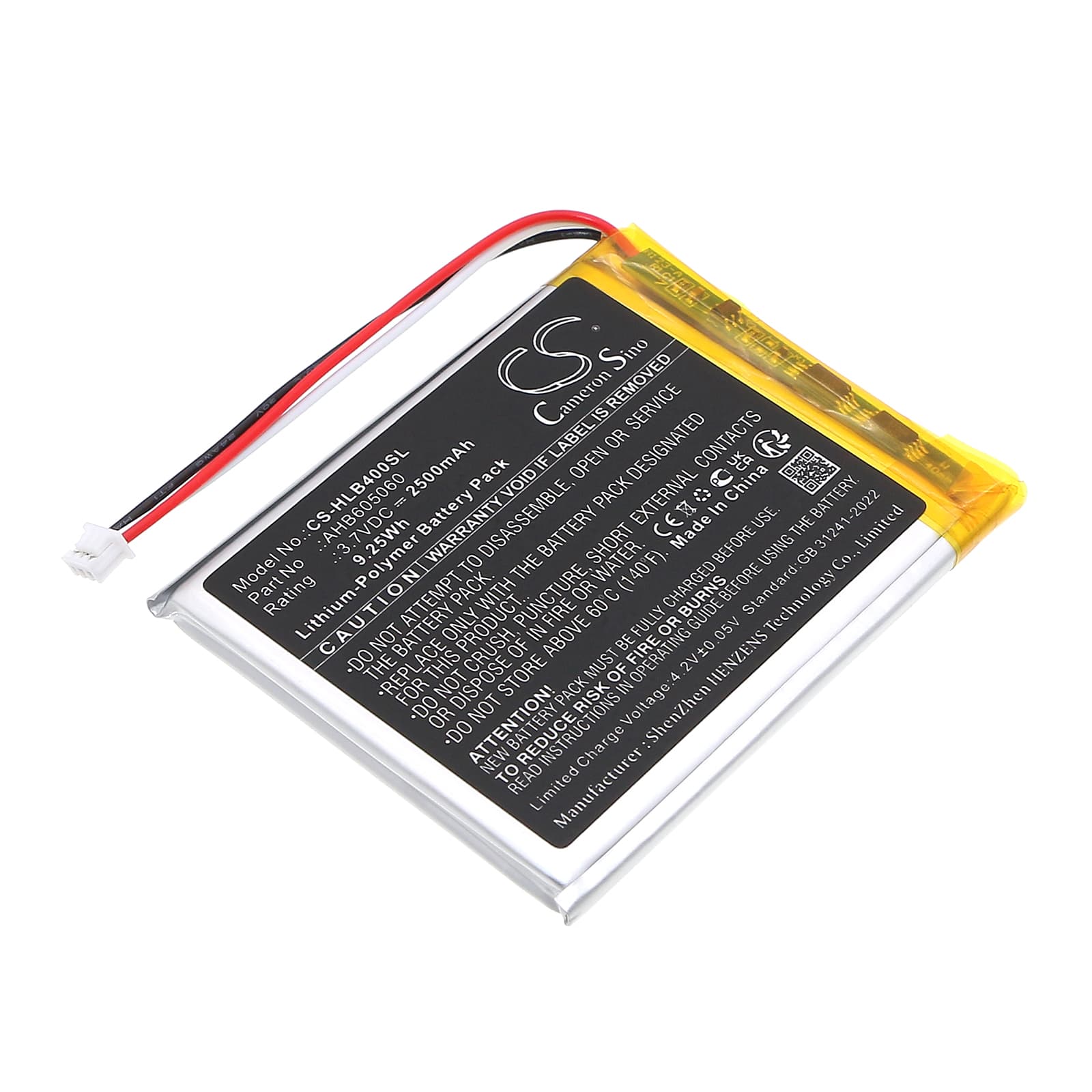

HelloBaby HB40 / HB50 / HB6351 Monitor — 3.7V Li-Polymer Replacement Battery (AHB605060)
This 3.7V 2500mAh Li-Polymer battery replaces the OEM AHB605060 cell in the parent unit of the HelloBaby HB40, HB50, and HB6351 baby monitor systems. It powers the handheld display that receives wireless audio and video from the nursery camera. Capacity matches the original: 2500mAh / 9.25Wh.
- HB40, HB50, and HB6351 compatibility: All three models share the same parent unit housing and draw from the same 3.7V single-cell architecture. The AHB605060 part number covers all three because the connector pinout, BMS voltage thresholds, and physical footprint — 60.60 × 50.00 × 6.20mm — are identical across the range.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on the parent unit PCB. The BMS accepted charge termination at 4.2V without fault flags. Discharge cutoff triggered correctly before the screen dimmed — no unexpected shutdowns during testing.
- Re-pair the wireless link after installation: Baby monitor parent units lose their stored camera pairing when the battery is fully removed. After fitting this battery, power on the parent unit and follow the HelloBaby manual pairing sequence — typically holding the pair button on the camera unit until the parent unit confirms signal lock.
Parent unit not connecting to camera unit after battery swap
Swapping the battery cuts all power to the parent unit, which clears the active wireless session with the camera. The HB40 series does not store pairing state in non-volatile memory on the parent unit side — it re-establishes the link at boot from a live handshake. Power both units on, then press and hold the pair button on the camera unit until the parent display shows the video feed. If the link fails on first attempt, move the units within one metre of each other and retry.
Night vision feed drops or goes dark shortly after battery replacement
The IR LEDs on the camera unit pull more current at night, and that load is sensitive to the parent unit's receive radio staying stable — but the more common cause is the new battery arriving partially discharged from storage. If night vision drops within the first hour of use, the cell voltage has likely sagged below the threshold the radio module needs to maintain a clean signal lock. Charge the parent unit to 100% before the first overnight session. A full charge brings the cell to 4.2V and gives the radio enough headroom to hold the IR-mode data stream.
