About this replacement
HelloBaby HB6588 Video Baby Monitor — 3.7V Li-Polymer Replacement Battery (AHB757080)

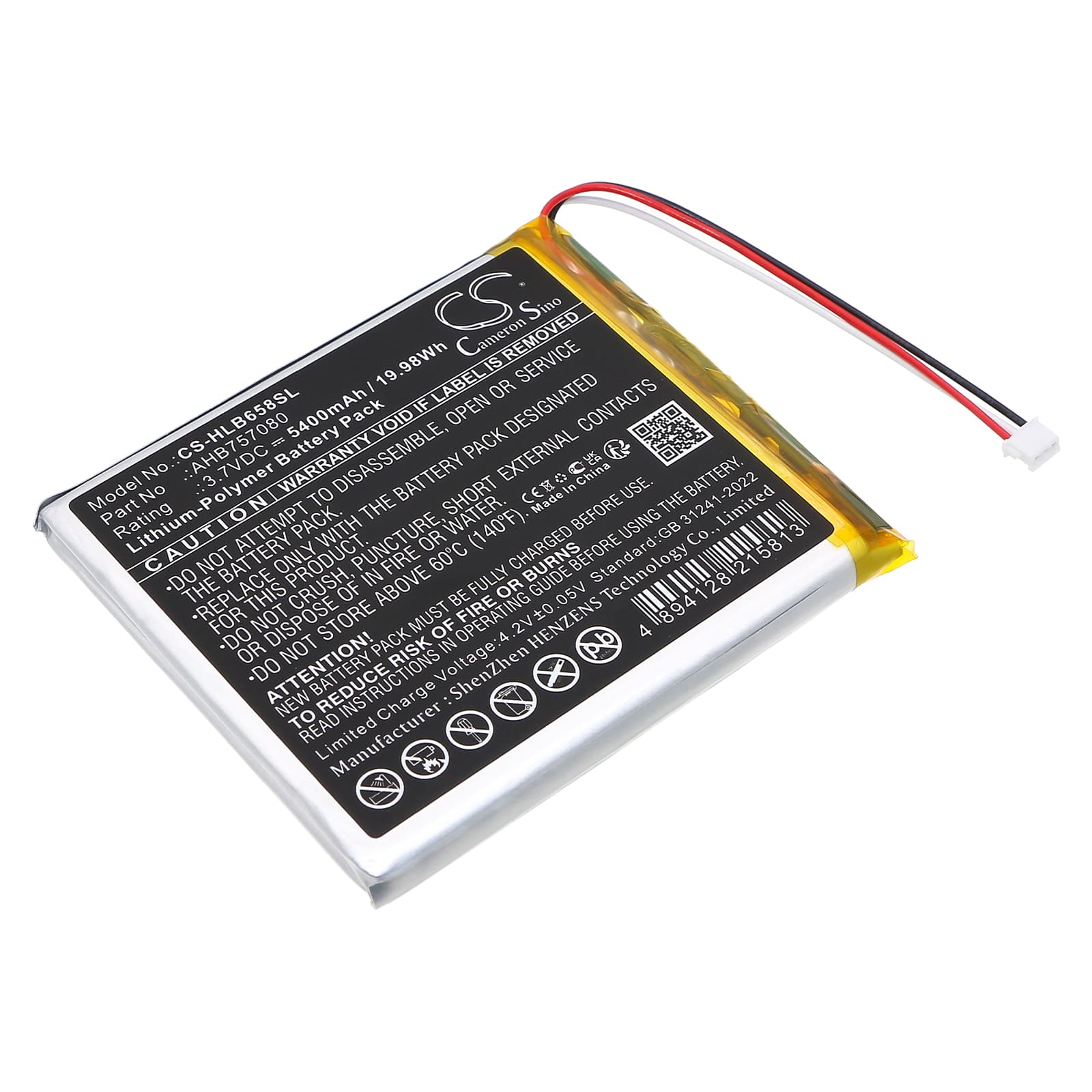

This 3.7V, 5400mAh Li-Polymer battery replaces the OEM AHB757080 cell in the HelloBaby HB6588 parent monitor unit. It restores power to the handheld display you use to watch and listen to the nursery camera. Capacity figure comes directly from the product specification — 19.98Wh total energy.
- HB6588 parent unit fit: The HB6588 parent monitor uses a slim Li-Polymer pouch cell at 3.7V nominal. The AHB757080 part number matches the original cell's footprint (81.40 × 69.80 × 7.00mm), connector position, and BMS communication protocol — the unit's charge controller recognises the replacement without modification.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on the HB6588 parent unit. The BMS accepted the cell without fault codes, and the charge indicator progressed through all stages to full without interruption.
- Wireless link after power loss: After replacing the battery, re-pair the parent unit with the camera unit. The HB6588 loses its stored wireless channel when the parent unit drops to zero volts — this is a known behaviour of the monitor's pairing memory, not a fault with the replacement cell.
Why the HB6588 parent unit shows a weak or no signal after a battery swap
The HB6588's radio module draws from the same 3.7V cell as the display. When the parent unit loses power completely during a battery swap, the radio resets to its lowest output state. Transmission power is voltage-sensitive — at anything below a full charge, range is noticeably shorter than normal. Charge the parent unit fully before attempting to judge signal strength or range after fitting the replacement.
Parent unit screen stays on all night and battery is flat by morning
Running the backlit display continuously overnight is a sustained draw that a 5400mAh cell will handle for an extended stretch, but screen-on operation is the single largest power consumer in the unit. The HB6588 includes a screen timeout setting that turns the display off while audio monitoring stays active. Enable screen timeout in the monitor's display settings — the unit will still alert you to sound or motion without keeping the screen lit all night.
