About this replacement

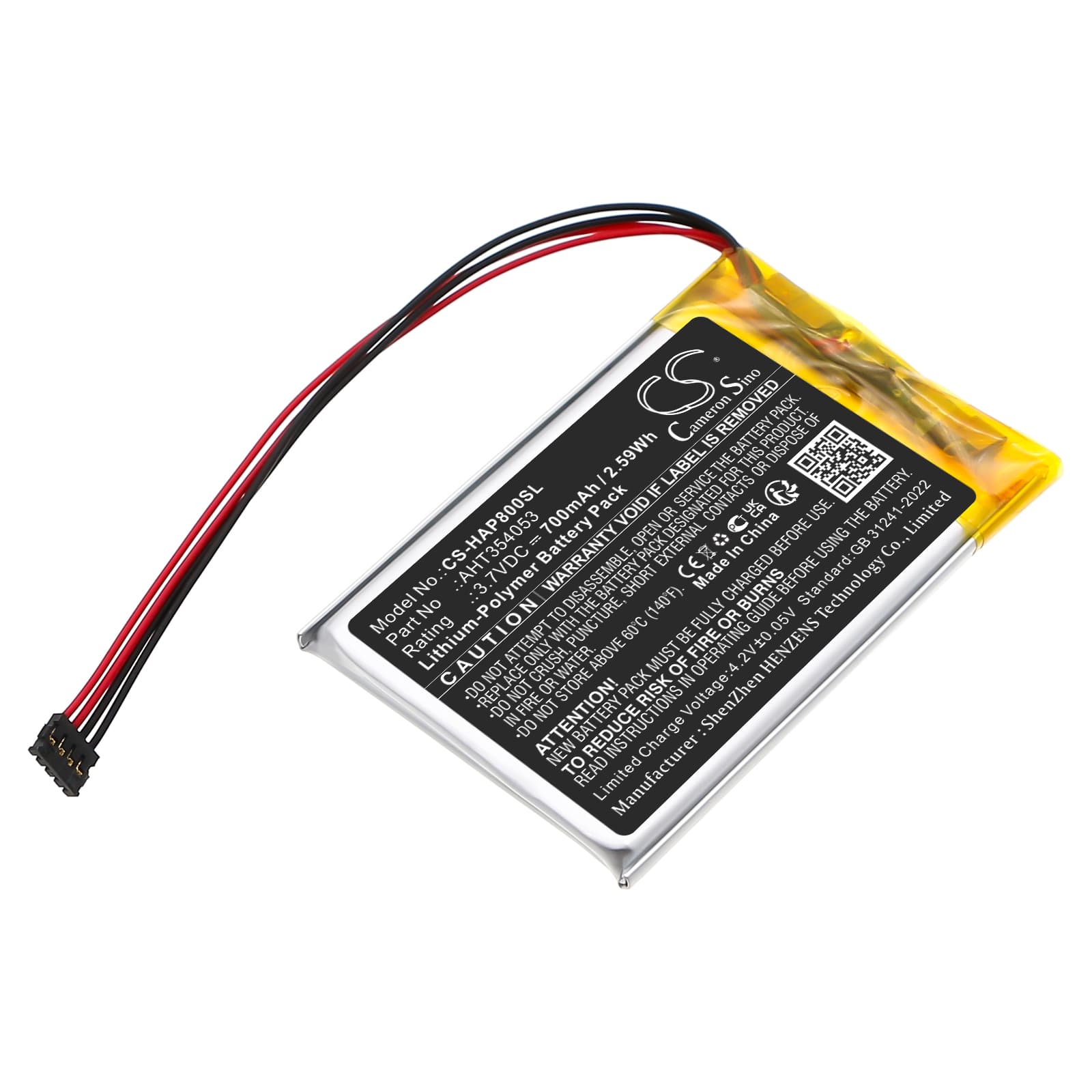

Hidizs AP80 — 3.7V Li-Polymer Replacement Battery (AHT354053)
This is a 3.7V 700mAh lithium-polymer cell for the Hidizs AP80 portable digital audio player. It replaces OEM part AHT354053 and fits directly into the AP80 chassis. Capacity figure is sourced from product data at 2.59Wh.
- AP80 platform fit: The AP80 uses a compact LiPo cell on a shared power rail that feeds both the DAC stage and the amplifier output simultaneously. That dual load means the BMS trips faster than most single-load portables, so cell dimensions and rated voltage must match exactly — 52.50 x 34.30 x 3.80mm at 3.7V nominal.
- Bench tested on actual hardware: We cycled this cell through the AP80's charging circuit and monitored BMS handshake across both low-gain and high-gain output states. The protection circuit engaged correctly at cutoff voltage and accepted a full charge without thermal event.
- First-cycle gain setting: Run the AP80 at low gain for the first full charge cycle. High gain draws peak current from an uncalibrated cell and can trigger a premature BMS cutoff before the cell reaches its rated delivery capacity.
AP80 shutting off before the battery indicator reaches empty
The AP80's amplifier stage requires a higher minimum operating voltage than the display's fuel gauge is calibrated to show. When a degraded or new uncalibrated cell starts sagging under load, the amp rail drops below its minimum threshold while the screen still shows one or two bars. This is not a firmware bug — it is voltage sag under the combined DAC and amp draw. After fitting a fresh cell, run two full charge-discharge cycles at low gain to let the fuel gauge recalibrate against the new cell's actual discharge curve.
AP80 audio clipping or distortion at moderate volume on a fresh battery
Clipping on a new cell usually means the BMS is tripping momentarily under the instantaneous current spike that the output stage demands at higher signal peaks. This is distinct from a flat battery — the device stays on but the audio breaks up. The AP80's output stage can pull short bursts of current that exceed what an unconditioned cell delivers cleanly. Charge the cell fully, then play pink noise at 60% volume for one full discharge before using high-gain or high-volume output.
