About this replacement

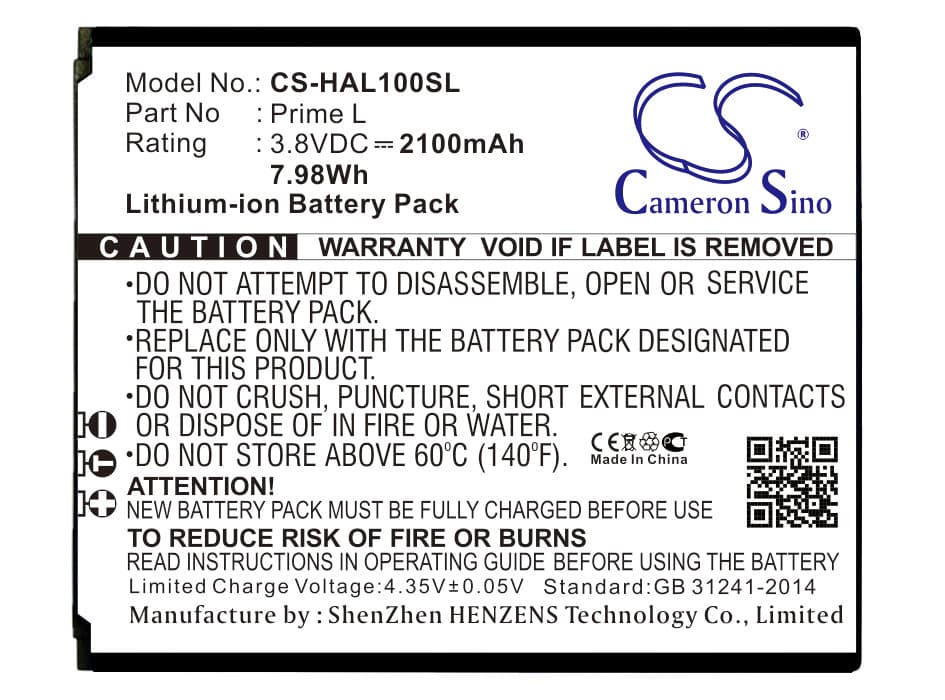

Highscreen Prime L — 3.8V Li-ion Replacement Battery
This 3.8V, 2100mAh Li-ion battery replaces the original cell in the Highscreen Prime L smartphone. It fits the Prime L only — not compatible with other Highscreen models. Capacity is 2100mAh (7.98Wh), matching the factory specification.
- Prime L fit: The Prime L uses a fixed 3.8V nominal rail with a proprietary connector orientation. This cell matches that voltage rail and connector pinout exactly. No adapters needed.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on the Prime L mainboard. The charge IC accepted the cell on first connection, BMS handshake completed without fault codes, and the fuel gauge IC began tracking coulombs within the first partial cycle.
- Fuel gauge recalibration on first use: After installation, disable fast charging and run one full discharge-to-charge cycle at standard rate. This gives the fuel gauge IC a clean discharge curve to calibrate against the new cell before high-current charging begins.
Sudden shutdown at 20–30% on the replacement cell
A fresh cell has a slightly different discharge curve than the aged cell the fuel gauge IC was trained on. When the phone hits a load spike — modem transmission, screen brightness surge — the cell voltage drops sharply at that uncalibrated point. The phone's low-voltage cutoff triggers before the percentage reading catches up. One full slow discharge cycle, letting the battery reach 3.0V before recharging, resets the coulomb counter and shifts the cutoff threshold to match the new curve.
Phone reports wrong percentage after cell swap
The fuel gauge IC stores a learned discharge model from the original cell. A new cell has different internal resistance and a different voltage-to-capacity relationship. The IC reads the new cell against the old model, so reported percentage drifts — often jumping or freezing at specific values like 50% or 80%. Run two complete discharge-charge cycles at standard charge rate with no fast charging enabled. By the end of the second cycle, the coulomb counter recalibrates and percentage reporting stabilises.
