About this replacement

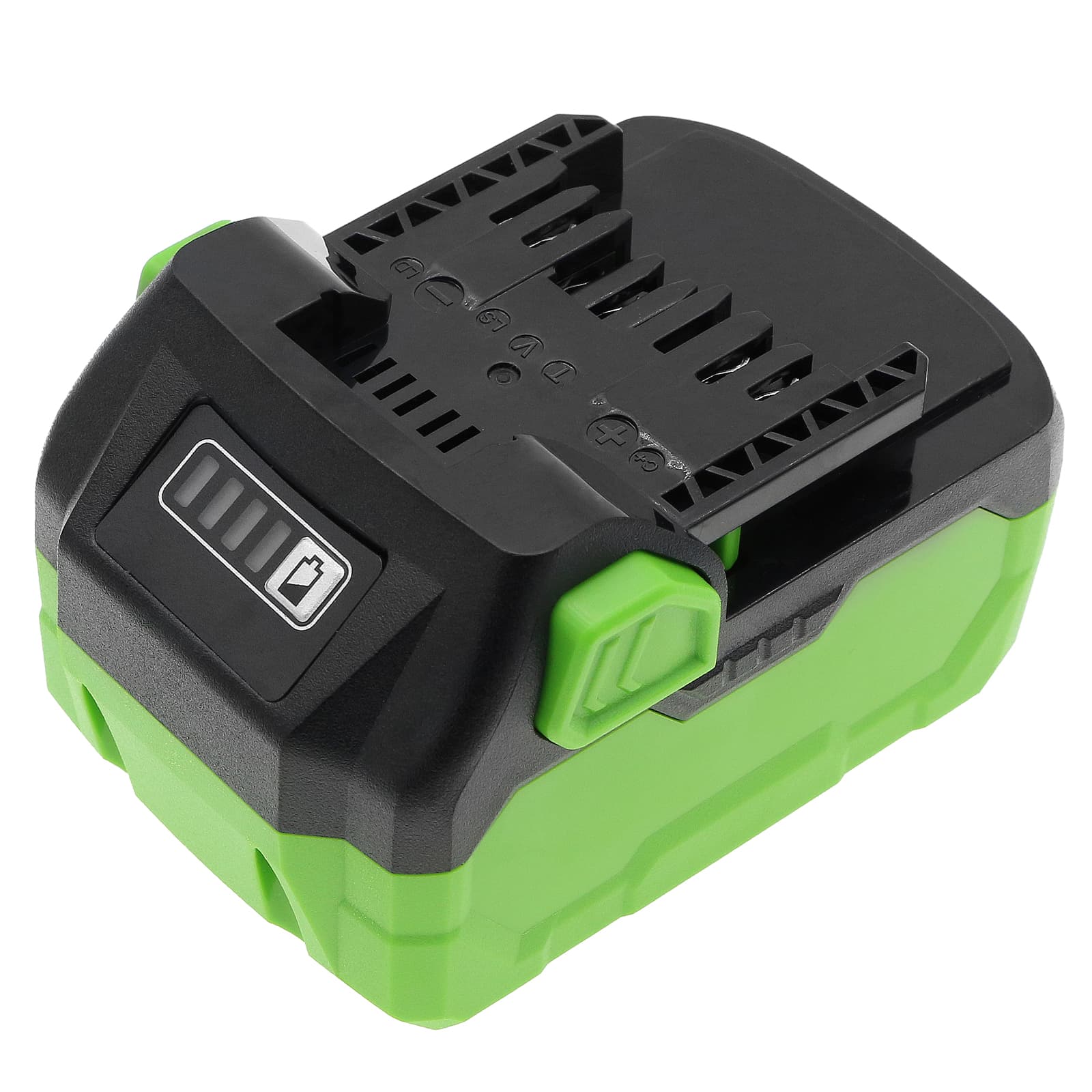

HiKOKI UB18DJL Series — 18V Li-ion Replacement Battery (BSL36B18)
This 18V Li-ion battery replaces the BSL36B18 and BSL36A18 packs across the HiKOKI 18V platform. It fits the UB18DJL, UB18DJL(L0Z), WF18DSL, WF18DSL(H4Z), and over 75 additional 18V HiKOKI tools. Capacity is 5000mAh (90Wh).
- 18V HiKOKI platform fit: The UB18DJL, WF18DSL, and related models share the same 18V rail voltage, physical slide-in connector, and BMS communication protocol. That shared architecture is why one pack spans the full 18V lineup — the cells, contact pins, and handshake logic are identical across these tools.
- Bench tested on actual hardware: We ran this pack on a UB18DJL under repeated trigger-pull cycles. The BMS handled motor-start inrush current without tripping, held rail voltage within spec through full torque cycles, and returned accurate charge-state data to the charger on each reconnect.
- Break-in on first use: On first use, run the drill at half load for two cycles before full torque applications. This lets the BMS profile the motor's inrush current draw and set accurate overcurrent protection thresholds before you push the pack hard.
BMS cutoff on motor-start inrush surge
When you pull the trigger on a drill or impact driver, the motor draws a brief current spike — sometimes 3–5× the running current — before it reaches operating speed. If the BMS overcurrent threshold is set conservatively or the cells are cold, that spike can trip the protection circuit and cut the pack off instantly. This is not a faulty battery; it's the BMS doing exactly what it's there to do. Let the pack warm to room temperature, re-seat it firmly in the tool, and try a slow trigger pull first to ramp the current draw gradually.
Charger not recognising a pack that's been in storage
Li-ion cells self-discharge during storage. If the pack sits long enough, cell voltage drops below the threshold most chargers use to accept a new charge cycle — typically around 2.5V per cell. The charger sees voltage too low to safely charge and either blinks red or does nothing at all. To recover the pack, leave it on the charger for 15–20 minutes; most HiKOKI chargers include a soft-start or wake-up mode that trickle-charges cells up to the acceptance voltage before switching to full charge. If the charger still won't engage after 30 minutes, check each cell group — any cell below 2.0V will hold the entire pack from charging.
