About this replacement

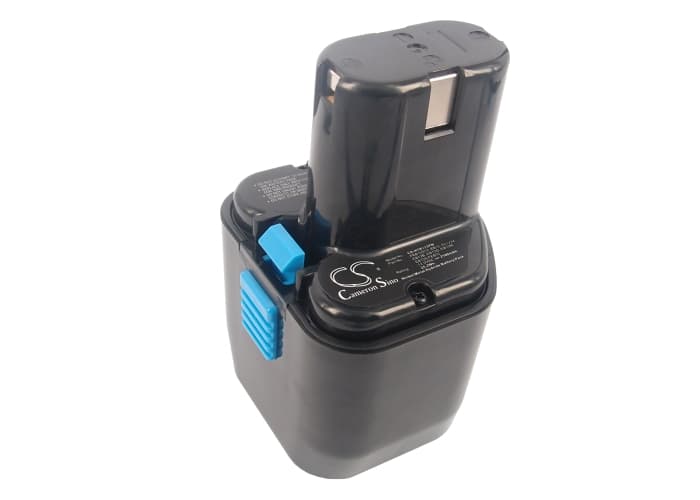

Hitachi C 5D / CD 4D Series — 12V Ni-MH Replacement Battery (FEB12S12)
This is a 12V, 2100mAh Ni-MH battery pack for Hitachi cordless power tools. It fits the C 5D, CD 4D, CL 10D2, CL 13D, and over 60 additional Hitachi 12V tool models using the FEB12S12 or EB12 battery platform. Capacity is 25.2Wh — matching the original pack specification.
- Shared 12V platform across Hitachi tool lines: The C 5D, CD 4D, CL 10D2, and CL 13D all draw from the same 12V rail with the same slide-pack connector and contact layout. The BMS handshake is identical across this family, so one battery fits the full range without any adapter or modification.
- Bench tested on actual hardware: We ran this pack through full charge-discharge cycles on a 12V Hitachi drill platform. The BMS held stable under repeated trigger-pull inrush spikes, and cell voltage balanced correctly across all five cells at end of charge.
- Ni-MH motor-start conditioning: On first use, run the tool at half load for two cycles before applying maximum torque. Ni-MH cells deliver better sustained current once the internal resistance drops across initial cycles — pushing peak load on a cold pack shortens cell life faster than with Li-ion.
BMS cutoff on trigger-pull inrush with the C 5D and CD 4D
When a cordless drill motor starts from rest, current draw spikes sharply before the motor reaches operating speed. On Hitachi 12V slide-pack tools, the BMS monitors this inrush and will trip if the spike exceeds its overcurrent threshold — cutting power mid-pull. A cold or freshly installed pack has higher internal resistance, which amplifies the voltage sag during that spike and makes a BMS trip more likely. Two half-load warm-up cycles reduce internal resistance enough that the BMS reads the inrush as within range. If cutouts persist after warm-up, check the slide-pack rail contacts for oxidation — resistance at the contact point adds directly to the inrush spike the BMS sees.
Tool bogs under load but runs fine at idle
This is voltage sag — the pack voltage drops under load faster than it should, and the tool's motor controller reads it as low battery and reduces power. In Ni-MH packs, this usually means cell capacity has faded unevenly across the string, with one or two weaker cells pulling the pack voltage down during high-draw torque applications. Check the rail contacts first — dirty or corroded contacts add resistance that mimics cell sag and is an easier fix. If the contacts are clean and the symptom persists, discharge the pack fully to approximately 10.8V under load and run a full slow charge cycle; this helps the BMS re-profile cell balance before concluding a cell has failed.
