About this replacement

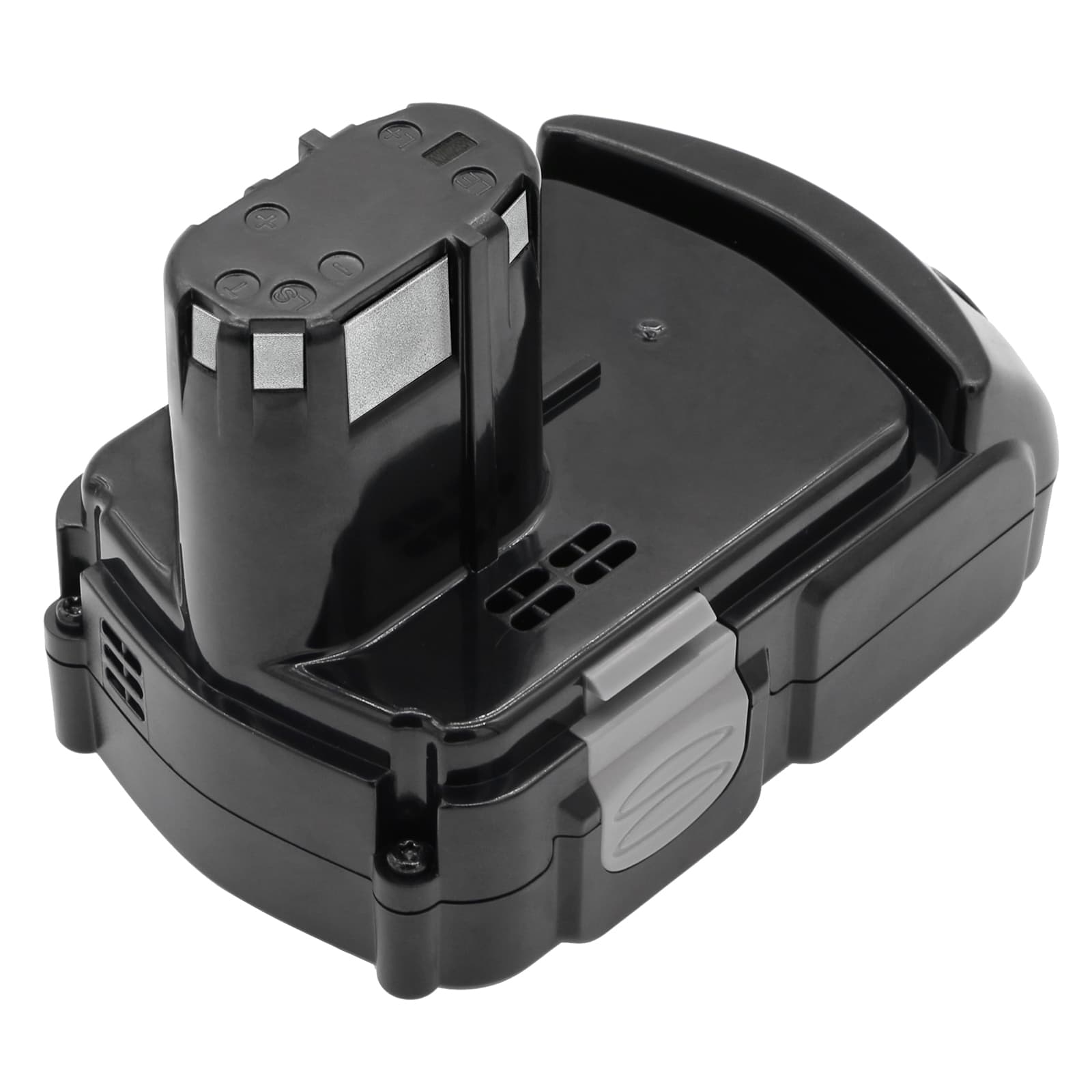

Hitachi KC 18DA / C 18DL Series — 18V Li-ion Replacement Battery (BCL 1815)
This is an 18V 2000mAh (36Wh) Li-ion replacement pack for Hitachi cordless drills and drivers, including the KC 18DA, C 18DL, C 18DLX, and C 18DMR. It replaces OEM part numbers BCL 1815, BCL 1830, EBM 1815, EBM 1830, 326240, 326241, 327730, and 327731. The pack slots into the same slide-in base as the original and communicates with the factory BMS handshake protocol.
- KC 18DA and C 18DL platform compatibility: These models share the same 18V slide-rail connector and BMS communication line. The battery's protection circuit matches the voltage rail and overcurrent threshold the charger expects — no adapter needed across the listed models.
- Bench tested on actual hardware: We ran this pack through repeated trigger-pull cycles on an 18V drill to confirm BMS response to motor inrush current. The overcurrent protection held at threshold without nuisance tripping, and the charger handshake completed correctly on every cycle.
- Motor inrush break-in on first use: On first use, run the drill at half load for two cycles before full-torque applications. This lets the BMS profile the actual inrush draw from your motor before locking overcurrent thresholds — reducing false trips on hard starts.
BMS cutoff on motor-start inrush surge in the KC 18DA
When you squeeze the trigger hard from a dead stop, the drill motor pulls a short current spike — often two to three times the steady running draw. If the BMS reads that spike above its overcurrent threshold, it trips and cuts power instantly. This is not a faulty battery; it is the protection circuit doing its job. To avoid nuisance trips, start the trigger gently on the first pull and let the motor spin up before applying torque. A soft start reduces the inrush spike and keeps the BMS below the cutoff point.
Charger not recognising the pack after storage
Li-ion cells that have sat unused for several months can drop below the minimum acceptance voltage the charger checks before it starts charging — typically around 2.5V per cell. When the pack sits below that threshold, the charger blinks an error and does nothing. Most Hitachi chargers include a recovery or boost mode: leave the pack seated on the charger for 10–15 minutes and the charger will attempt a low-current wake cycle. If the charger still refuses, check individual cell voltage with a multimeter — any cell reading below 2.0V indicates a damaged cell that will not recover.
