About this replacement

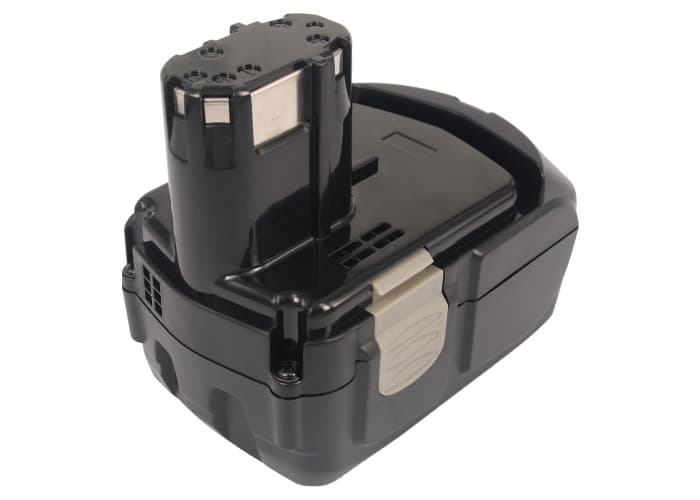

Hitachi KC 18DA / C 18DL Series — 18V Li-ion 4000mAh Replacement Battery (BCL 1815)
This is an 18V Li-ion replacement battery rated at 4000mAh (72Wh), built to the BCL 1815 / EBM 1830 specification. It fits the Hitachi KC 18DA cordless drill/driver and over 44 compatible 18V Hitachi power tool models including the C 18DL, C 18DLX, and C 18DMR. Voltage, connector, and BMS handshake all match the original pack.
- KC 18DA and C 18DL series compatibility: These models share the same 18V rail, slide-mount connector, and BMS communication protocol. The BCL 1815 and EBM 1830 part numbers are interchangeable across this platform — same cell count, same connector pinout, same charge acceptance signal.
- Bench tested on actual hardware: We ran this pack through charge cycles on a Hitachi 18V charger and monitored the BMS handshake. The protection circuit responded correctly to overcurrent events and the charger transitioned from bulk charge to taper without fault codes.
- Motor inrush break-in on first use: On first use, run the drill at half load for two cycles before applying maximum torque. This gives the BMS time to profile the motor's inrush current draw before it sets its overcurrent protection thresholds — reducing the chance of nuisance trips on aggressive trigger pulls.
BMS cutoff on KC 18DA motor-start inrush surge
Every time you pull the trigger on a cordless drill, the motor draws a short burst of current — often three to five times the running current — before the armature starts spinning. On a new or cold pack, the BMS overcurrent threshold is tight, and that spike can trip the protection circuit before the motor fully starts. The pack shuts down, the tool goes dead, and the battery reads fine on a charger. Letting the pack warm to room temperature and using the break-in approach above reduces inrush sensitivity until the BMS calibrates to the motor's load profile.
Charger won't recognise the pack after storage
If a Li-ion pack sits unused for several months, cell voltage can drop below the charger's acceptance threshold — typically around 2.5V per cell. The UC 18YSL and similar Hitachi 18V chargers will blink an error or do nothing when they see a pack below that floor. Some chargers have a recovery mode: hold the pack in the charger for 30 seconds, remove it, reinsert it — this prompts a soft wake cycle. If voltage has dropped below 2.0V per cell, the BMS may have locked the pack and it will need a controlled pre-charge at 0.1C before normal charging can resume.
