About this replacement

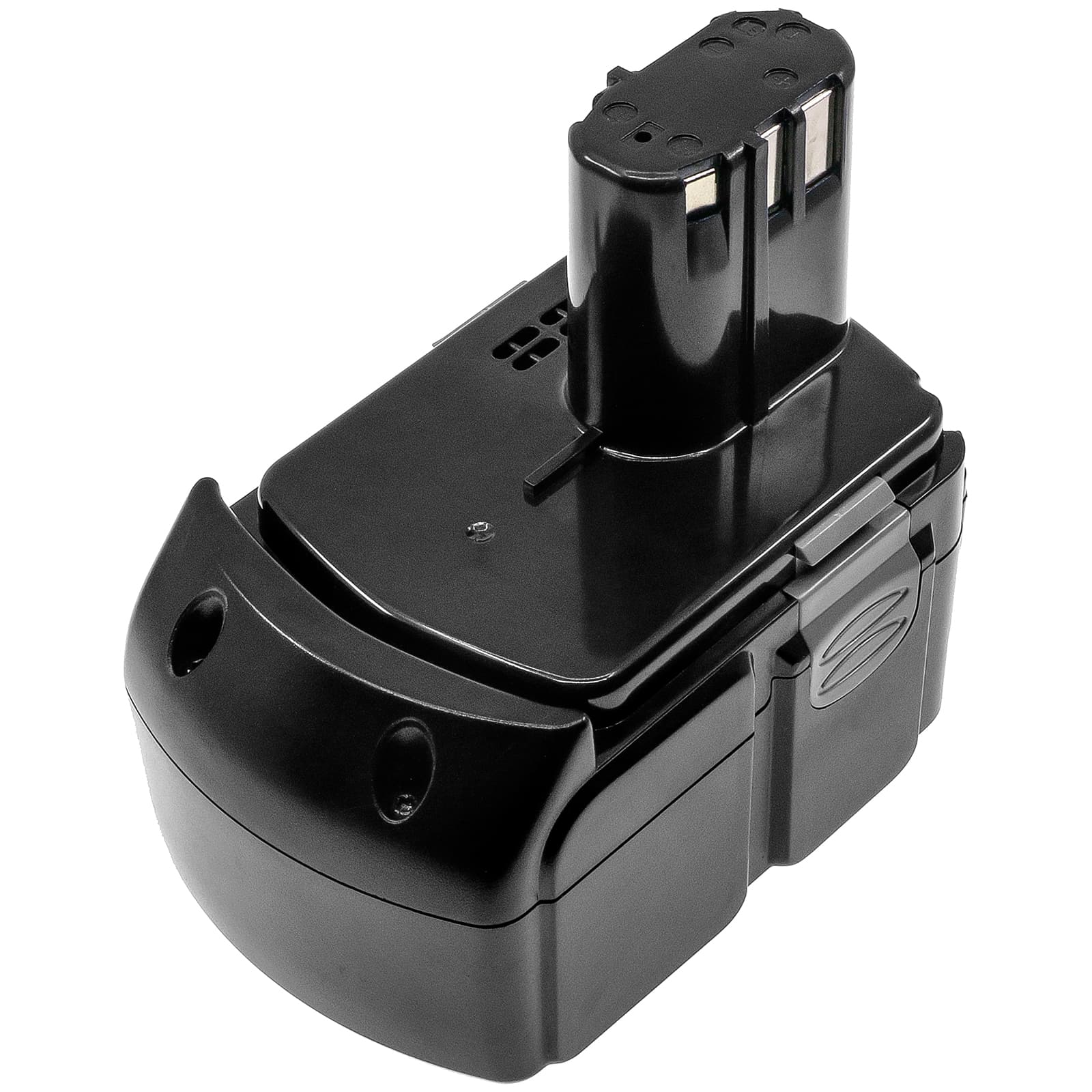

Hitachi KC 18DA / C 18DL Series — 18V Li-ion 5000mAh Replacement Battery (BCL 1815)
This is an 18V Li-ion battery rated at 5000mAh (90Wh), replacing OEM part numbers BCL 1815, EBM 1830, BCL 1830, and EBM 1815. It fits the Hitachi KC 18DA cordless drill/driver and over 44 compatible Hitachi 18V platform models including the C 18DL, C 18DLX, and C 18DMR. The connector footprint and BMS handshake protocol match the original Hitachi 18V slide-pack format.
- Hitachi 18V platform compatibility: These models share the same 18V rail voltage, slide-in connector, and BMS communication protocol. A single pack runs across drills, drivers, saws, and rotary tools in the same platform without any adapter.
- Bench tested on actual hardware: We ran this pack on the KC 18DA and C 18DL under repeated load cycles. The BMS handled motor-start inrush current without false overcurrent trips and held rail voltage within spec throughout sustained drilling.
- Break-in procedure for motor-start protection: On first use, run the drill at half load for two cycles before applying maximum torque. This lets the BMS profile the motor's inrush current draw and set accurate overcurrent thresholds before heavy-duty use begins.
BMS cutoff on trigger-pull inrush surge in 18V drills
When you pull the trigger on a cordless drill, the motor draws a spike of current — often three to five times the running draw — for the first fraction of a second. If the BMS reads that spike as a fault, it cuts power instantly. This pack's overcurrent threshold is calibrated for Hitachi 18V motors, so it distinguishes a normal inrush spike from a genuine short-circuit event. A BMS that trips on every trigger pull usually indicates either a depleted pack with high internal resistance, or a new pack that hasn't completed its initial cell-profiling cycles.
Charger showing no response or blinking red on a new pack after storage
Li-ion cells drop below charger acceptance voltage — typically around 2.5V per cell — after extended storage. Most Hitachi chargers refuse to begin a charge cycle on a pack below that threshold and blink red or show no activity. The fix is to briefly connect and disconnect the pack from the charger three to four times in quick succession; some chargers enter a recovery or trickle-charge mode on the third attempt. If the charger still won't accept the pack, check each cell group with a multimeter — any group reading below 2.5V needs a controlled trickle charge to 3.0V per cell before the main charge cycle will start.
