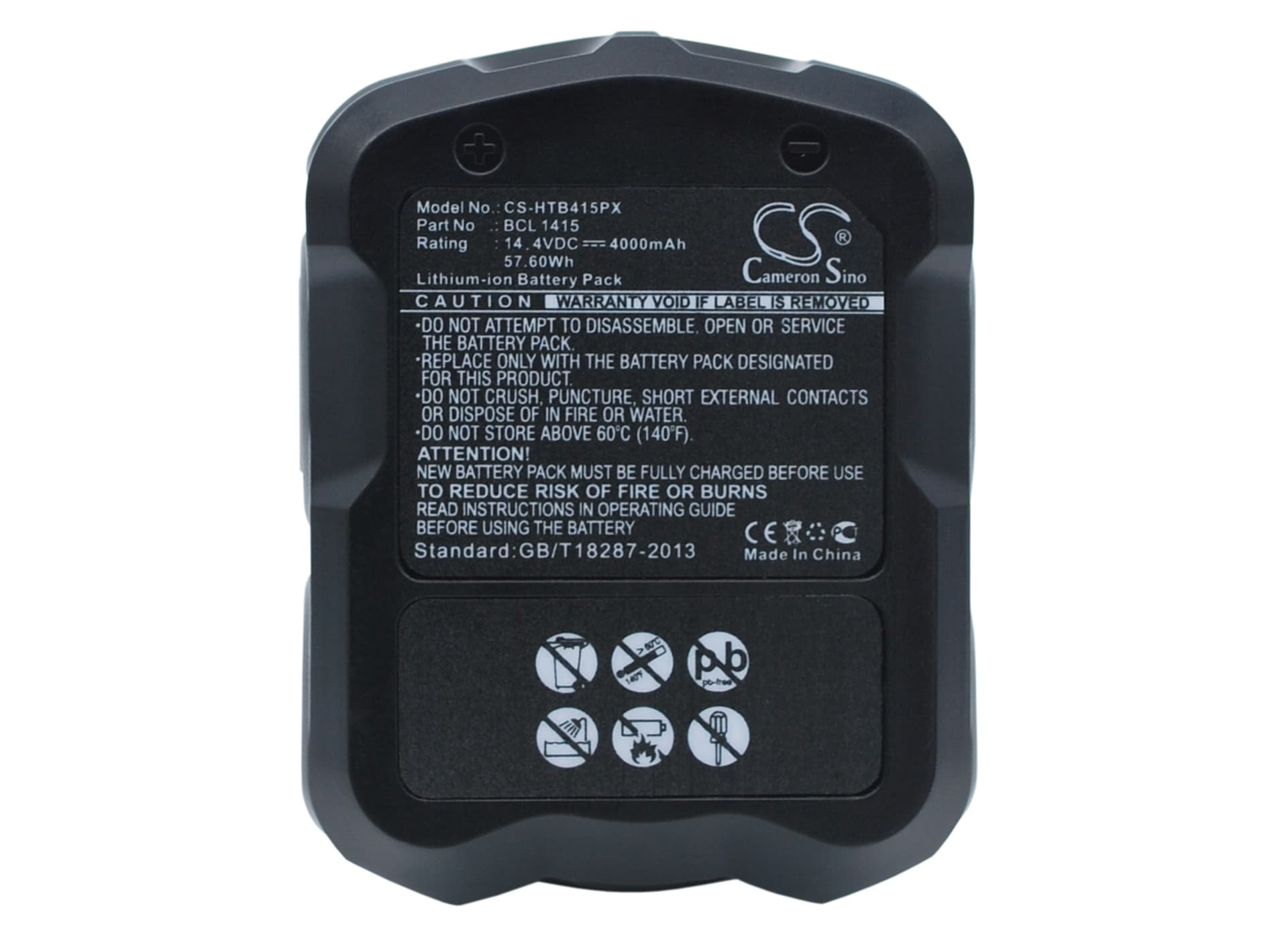

Hitachi CJ 14DL / DS 14DFL Series — 14.4V Li-ion Replacement Battery (BCL 1415)
This is a 14.4V, 4000mAh (57.6Wh) lithium-ion battery built to replace the BCL 1415 and BCL 1430 packs. It fits the Hitachi CJ 14DL cordless jigsaw, DS 14DFL drill driver, DH 14DL rotary hammer, and over 39 additional 14.4V Hitachi tools sharing the same slide-rail platform. Voltage and connector match OEM spec — no adapters needed.
- 14.4V slide-rail platform compatibility: The CJ 14DL, DS 14DAF2, DS 14DFL, and DH 14DL all draw from the same 14.4V cell architecture and use the same multi-contact slide-rail connector. The BMS handshake protocol is consistent across the lineup, so one pack covers the full platform without modification.
- Bench tested on actual hardware: We ran this pack on a CJ 14DL under repeated motor-start cycles and monitored the BMS overcurrent threshold response. Cell voltage held stable across the discharge curve, and the protection circuit responded correctly to inrush spikes without nuisance tripping.
- Break-in procedure for impact and jigsaw applications: On first use, run the tool at half-load for two cycles before applying maximum torque or full-speed cutting. This lets the BMS log the motor's inrush current signature and calibrate its overcurrent trip threshold before you push the pack hard.
BMS Cutoff on Motor-Start Inrush — CJ 14DL Trigger Pull
The CJ 14DL jigsaw draws a sharp inrush spike the instant the trigger closes — typically 3 to 5 times the running current. A fresh pack whose BMS hasn't yet profiled this load will sometimes interpret that spike as a fault and cut power immediately. This is a protection threshold issue, not a cell or capacity problem. Running two half-load cycles first gives the BMS enough data to set an accurate overcurrent limit, and the cutout behaviour stops.
Charger Shows Blinking Red on a New Pack After Storage
Lithium-ion cells self-discharge during storage, and if a pack sits long enough, cell voltage drops below the charger's acceptance window — typically under 2.5V per cell. The Hitachi charger reads this as a fault condition and blinks red rather than beginning a charge cycle. To recover the pack, leave it on the charger for 10 to 15 minutes without removing it — most Hitachi chargers will attempt a trickle pre-charge to bring cells back above 2.8V per cell before switching to normal charge mode. If the light does not shift to solid red or green after 20 minutes, remove the pack, wait 5 minutes, and reinsert.
