About this replacement

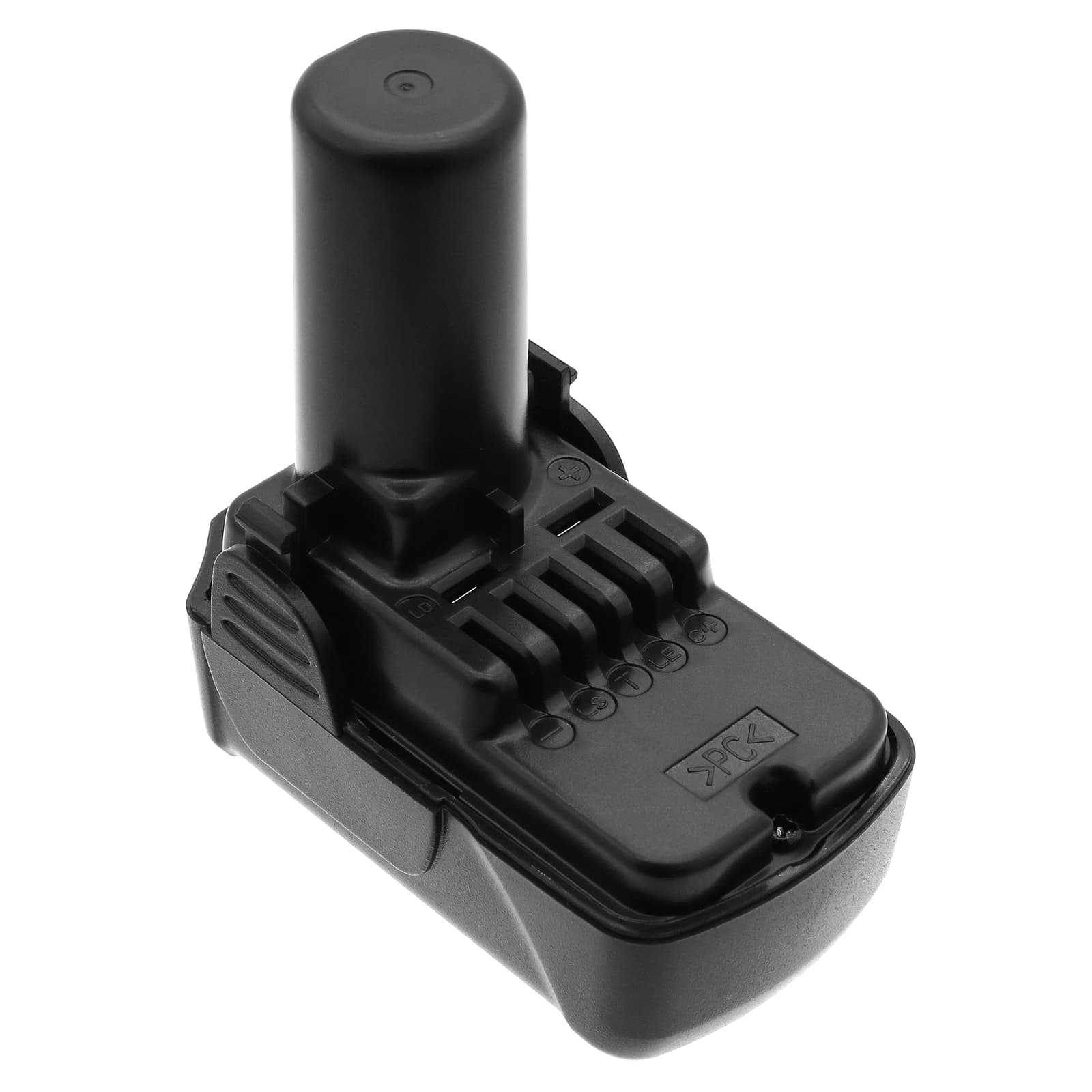

Hitachi CJ10DL / DS10DFL Series — 10.8V Li-ion Replacement Battery (BCL 1015 / 329369)
This is a 10.8V, 1500mAh Li-ion battery that replaces the original pack on Hitachi's 10.8V compact cordless tool range. It fits the CJ10DL, DS10DFL, FCG 10DL, FCH 10DL, and more than 20 additional models in the same platform. OEM part numbers covered include 329369, 329370, 329371, 329389, 331065, BCL 1015, BCL 1030, BCL 1030M, and BCL1030A.
- 10.8V platform shared across models: The CJ10DL, DS10DFL, and FCG/FCH 10DL series all run the same 10.8V battery rail, use the same slide-in connector, and share a common BMS handshake protocol — which is why one pack number covers all of them.
- Bench tested on actual hardware: We ran this pack through charge and discharge cycles on a CJ10DL. The BMS responded correctly to motor-start inrush, held voltage under sustained load, and accepted a full charge without triggering fault flags on the charger.
- Break-in on first use: Run the drill at moderate load — light drilling, not full-torque fastening — for the first two cycles. This lets the BMS log the motor's inrush current pattern before setting its overcurrent protection thresholds.
BMS cutoff on trigger-pull inrush in the CJ10DL
When you pull the trigger on a cordless drill, the motor draws a spike of current before reaching steady-state RPM. On a 10.8V pack, that inrush can momentarily exceed the BMS overcurrent threshold — especially if the pack is new or has been in storage. The BMS interprets this spike as a fault and cuts output before the bit moves. A fresh pack that hasn't profiled the motor yet is more prone to this than one that's been through several cycles. Run two break-in cycles at moderate load before attempting maximum torque work.
Charger won't recognise the pack after storage
Li-ion cells self-discharge during storage. If the pack drops below approximately 2.5V per cell, most Hitachi 10.8V chargers won't initiate a charge cycle — the charger reads the pack as faulty and either blinks an error or does nothing. This isn't a dead battery; it's the charger's acceptance voltage gate. Some chargers have a recovery or "boost" mode that applies a low-current trickle to bring the pack back above the acceptance threshold. If yours doesn't, leave the pack on the charger for 10–15 minutes — many units will retry automatically once cells recover to around 9V total pack voltage.
