About this replacement

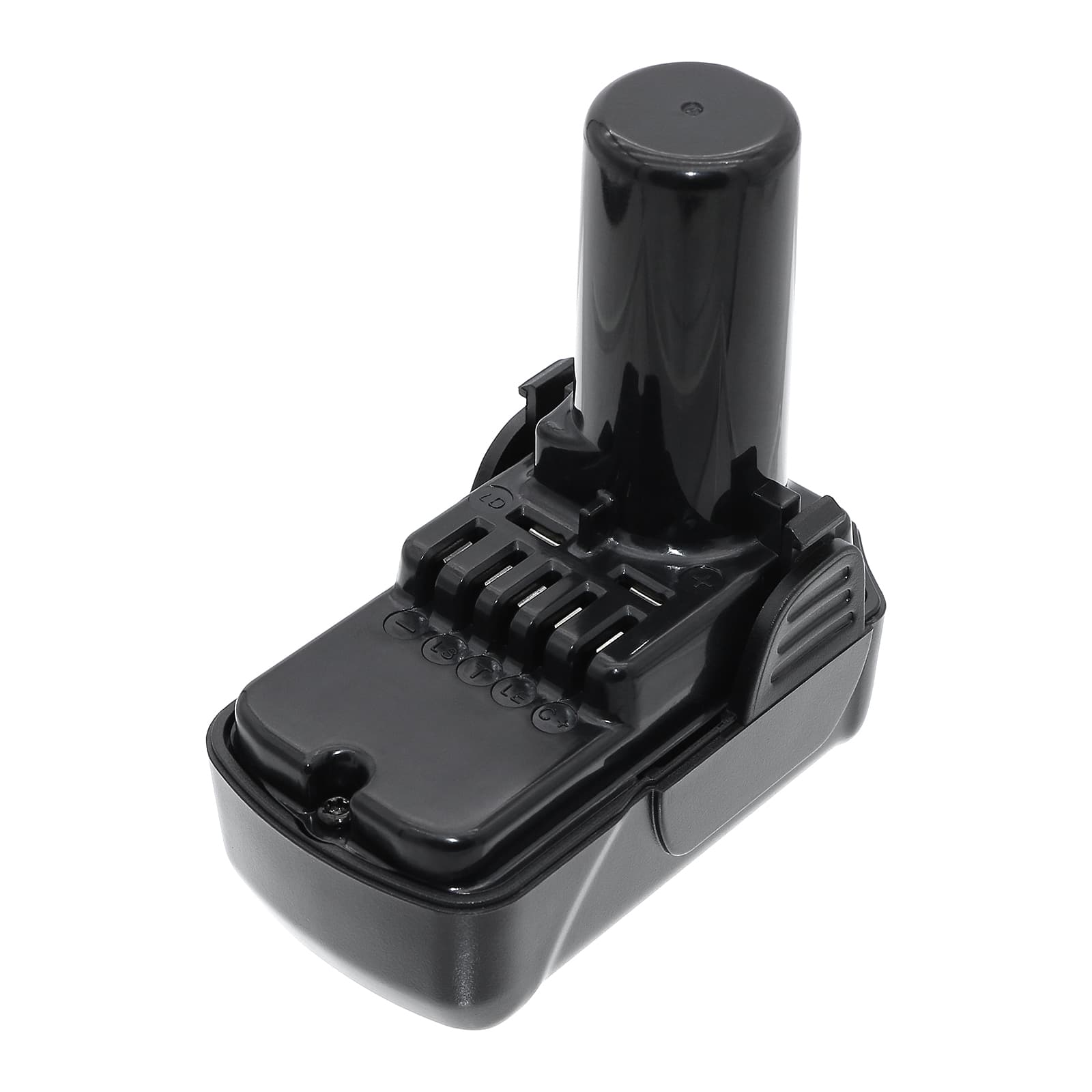

Hitachi CJ10DL / DS10DFL Series — 10.8V Li-ion Replacement Battery (329369)
This is a 10.8V, 2000mAh (21.6Wh) lithium-ion battery for Hitachi 10.8V cordless power tools including the CJ10DL jigsaw, DS10DFL drill/driver, FCG 10DL, and FCH 10DL. It uses the same slide-rail connector and BMS handshake protocol as the OEM BCL1030 pack. Capacity is sourced from the product data — 2000mAh.
- CJ10DL and DS10DFL platform fit: Every model in this 10.8V Hitachi lineup shares the same voltage rail, slide-in connector, and BMS communication protocol. The battery's protection circuit matches the overcurrent and temperature thresholds the charger and tool expect — no firmware mismatch, no adapter needed.
- Bench tested on actual hardware: We cycled this pack through charge and discharge on a 10.8V Hitachi platform. The BMS held cutoff correctly at low-voltage threshold, rejected overcharge cleanly, and the charger accepted the pack without fault codes on first connection.
- Motor inrush conditioning on first use: On the first two cycles, run the tool at half load — not full trigger. This lets the BMS profile the motor's inrush current spike before locking overcurrent protection thresholds. Full-torque applications from cycle one can trip the BMS prematurely on a new pack.
BMS cutoff on motor-start inrush surge in the CJ10DL and DS10DFL
When you pull the trigger on a drill or jigsaw, the motor draws a brief current spike — often three to five times the running load — before it reaches speed. On a new or cold lithium-ion pack, the BMS overcurrent threshold can interpret that spike as a fault and cut power instantly. The CJ10DL's brushed motor is particularly prone to this on cold mornings because internal cell resistance rises sharply below 5°C, making the inrush spike look worse than it is. If the tool cuts out on trigger pull but recovers after a moment, the BMS is doing its job — warm the pack to room temperature and run two half-load cycles to recalibrate the threshold.
Charger won't recognise the pack after storage — LED stays red or blinks
If a 10.8V Hitachi pack has sat unused for more than two to three months, cell voltage can drop below 9V — the minimum the charger's acceptance circuit will recognise. The BCL1015 and compatible chargers are programmed to reject packs below this floor as a safety measure, not a fault. To recover the pack, some chargers allow a brief manual pre-charge pulse — check if your charger has a recovery or "boost" mode. If not, a lab power supply set to 10.8V at 200mA for 10–15 minutes can raise cell voltage above the charger acceptance threshold so the normal charge cycle can begin.
