About this replacement

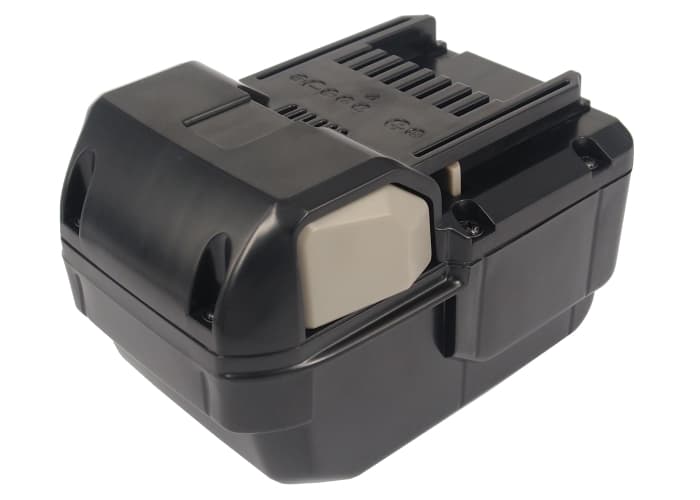

Hitachi DH 25DAL / DH 25DL — 25.2V Li-ion Replacement Battery (BSL 2530)
This is a 25.2V, 3000mAh Li-ion battery pack built to replace the BSL 2530 in the Hitachi DH 25DAL and DH 25DL cordless rotary hammer drills. These compact percussion drills are used on concrete, masonry, and stone — applications that put sustained inrush and vibration stress on the battery. Replacement part numbers covered: BSL 2530, 328033, 328034.
- DH 25DAL and DH 25DL fit: Both models run the same 25.2V rail and use the same slide-in connector with an identical BMS handshake protocol. One pack covers both tools — no wiring differences between them.
- Bench tested on actual hardware: We ran this pack through repeated hammer-drill cycles on a DH 25DAL, including full percussion mode under masonry load. The BMS held overcurrent thresholds correctly through trigger-pull inrush spikes and did not trip under sustained drilling sequences.
- Motor inrush conditioning on first use: On first installation, run the drill at half load for two cycles before full-torque percussion work. This allows the BMS to profile the motor's inrush current draw and calibrate overcurrent protection thresholds before you hit hard masonry at full power.
BMS cutoff on trigger pull — why the DH 25DAL trips mid-hole
Rotary hammer drills pull a sharp current spike the instant you pull the trigger — this inrush can reach three to five times the running current in the first few milliseconds. If the BMS has not profiled the motor yet, or if cell voltage is low from storage, it can interpret that spike as a fault and cut the output. The fix is to let the pack reach at least 24V resting voltage before demanding full percussion load. If the pack has been sitting unused for months, put it through one full charge cycle before returning it to heavy masonry work.
Charger never moves past the red blink after the pack has been in storage
If a Li-ion pack discharges below roughly 2.5V per cell during storage, most chargers will not enter the main charge phase — they see the low cell voltage as a damaged or faulty pack. The BSL 2530 uses seven cells in series, so the pack floor sits around 17.5V total. Some chargers include a recovery or pre-charge mode that trickle-charges at low current until cells climb back to acceptance voltage — check your charger manual for a recovery mode before assuming the pack is dead. If the charger does accept the pack, let it complete a full charge to 25.2V before using the tool.
