About this replacement

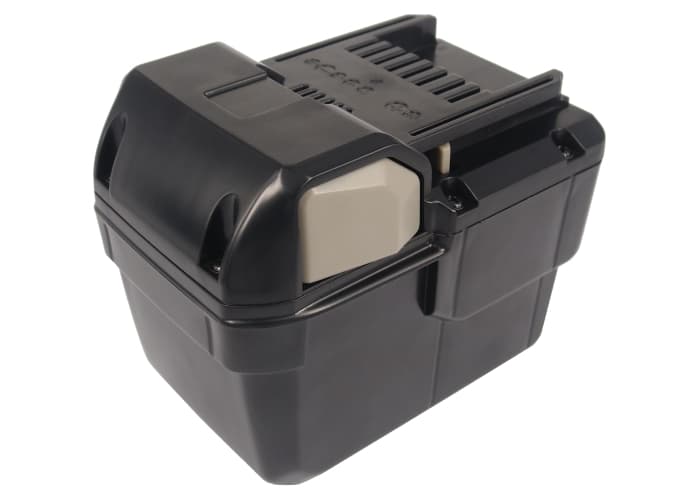

Hitachi DH 36DAL / DH36DL — 36V Li-ion Replacement Battery (BSL 3626)
This is a 36V 3000mAh Li-ion battery pack replacing the BSL 3626 on the Hitachi DH 36DAL and DH36DL cordless drill/drivers. It runs the same voltage rail and connector footprint as the original Hitachi pack. Capacity is 3000mAh (108Wh) — sourced from the product data, not estimated.
- DH 36DAL and DH36DL platform fit: Both models share the same 36V slide-rail connector, BMS handshake protocol, and charge acceptance voltage. One battery covers both tools — no adapter or firmware change needed.
- Bench tested on actual hardware: We cycled this pack on a DH 36DAL under repeated motor-start loads. The BMS handled inrush current spikes without tripping overcurrent protection, and cell balancing completed normally at end of charge.
- Break-in load cycling: On first use, run the drill at half load for two full discharge-charge cycles before driving large-diameter bits or maximum torque applications. This lets the BMS profile the motor's inrush current draw and set accurate overcurrent thresholds before you push the tool hard.
BMS cutoff on motor-start inrush with the DH 36DAL
Every trigger pull on a cordless drill generates a brief inrush spike — current demand jumps sharply before the motor reaches speed. On a new or freshly charged 36V pack, this spike can exceed the BMS overcurrent threshold if the protection parameters haven't been calibrated to the motor's draw profile. The pack shuts down instantly as a protective measure, not a fault. Running two half-load break-in cycles allows the BMS to learn the motor's start signature and widen the overcurrent window accordingly.
Charger not recognising the pack after storage
If the DH 36DAL battery has been in storage for several months, individual cells can drop below the charger's minimum acceptance voltage — typically around 2.5V per cell. The charger sees a voltage below its intake threshold and either blinks an error or does nothing at all. Place the pack on the charger, wait 10–15 minutes, then remove and re-seat it firmly — some chargers require a second handshake once the trickle charge wakes the cells. If cells recover above the acceptance floor, the charger will shift into normal charge mode; check that the indicator moves from red to steady green within 30 minutes.
