About this replacement

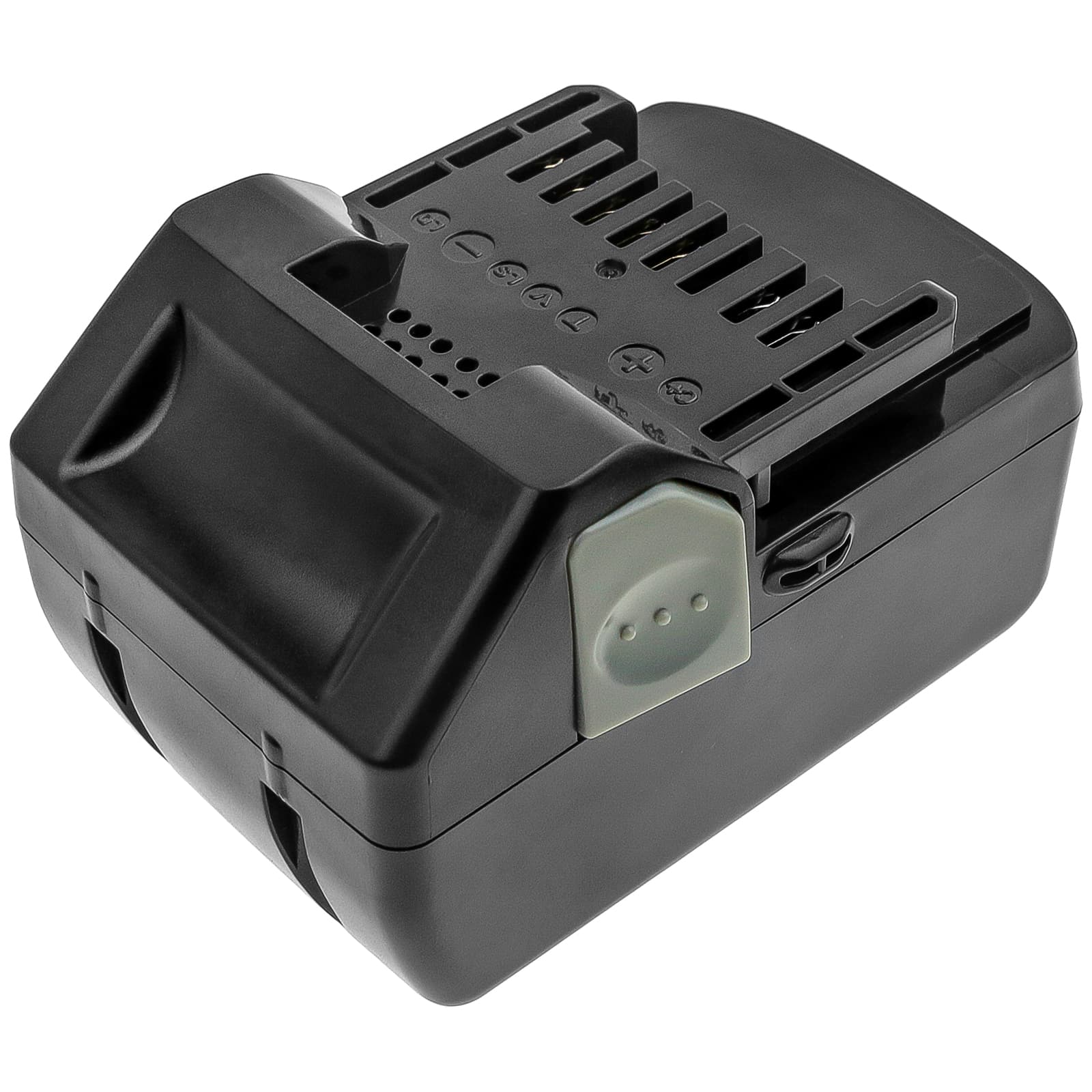

Hitachi DV 18DBL / DH 18DSL Series — 18V Li-ion Replacement Battery (BSL 1830)
This 18V Li-ion pack replaces the BSL 1830 battery used across Hitachi's 18V cordless drill and driver range. It fits the DV 18DBL, DH 18DSL, DS 18DBL, DS 18DSAL, and 16 additional models sharing the same 18V slide-rail platform. Capacity is 5000mAh (90Wh) — above the original 3000mAh spec.
- 18V slide-rail platform compatibility: All listed models run the same 18V bus, use the same slide-in rail connector, and share a BMS handshake protocol. The cells and BMS in this pack communicate with the tool's PCB the same way the OEM pack does — no firmware mismatch.
- Bench tested on actual hardware: We cycled this pack on a DV 18DBL under repeated trigger-pull loads. The BMS held through motor-start inrush current without tripping and balanced cells correctly across discharge cycles.
- Break-in for inrush profiling: On first use, run the drill at half load for two cycles before applying maximum torque. This lets the BMS log the motor's inrush current draw and set accurate overcurrent thresholds before you hit a demanding fastening job.
BMS cutoff on motor-start inrush surge in the DV 18DBL
When you pull the trigger on a cordless drill, the motor draws a brief spike of current — often 3–5× the running draw — before the armature gets up to speed. A new or recently stored pack may have its BMS overcurrent threshold set conservatively, causing it to cut out on that spike. Running two break-in cycles at partial load trains the BMS to recognise the inrush profile of the specific motor. After that, the threshold shifts and the tool runs without mid-start cutoffs.
Tool bogs under load despite a full charge indicator
If the DV 18DBL shows full charge but loses torque or slows noticeably when drilling into hardwood or driving long screws, the fault is usually voltage sag — the rail voltage drops under load due to high contact resistance or cell impedance. First, clean the battery rail contacts on both the pack and the tool with isopropyl alcohol; oxidation on the contacts alone can drop the rail by 1–2V under load. If cleaning doesn't resolve it, check the resting voltage with a multimeter — a healthy fully-charged 18V Li-ion pack should read 20.0–20.5V at rest. Anything below 19V at rest after a full charge cycle points to cell degradation.
