About this replacement

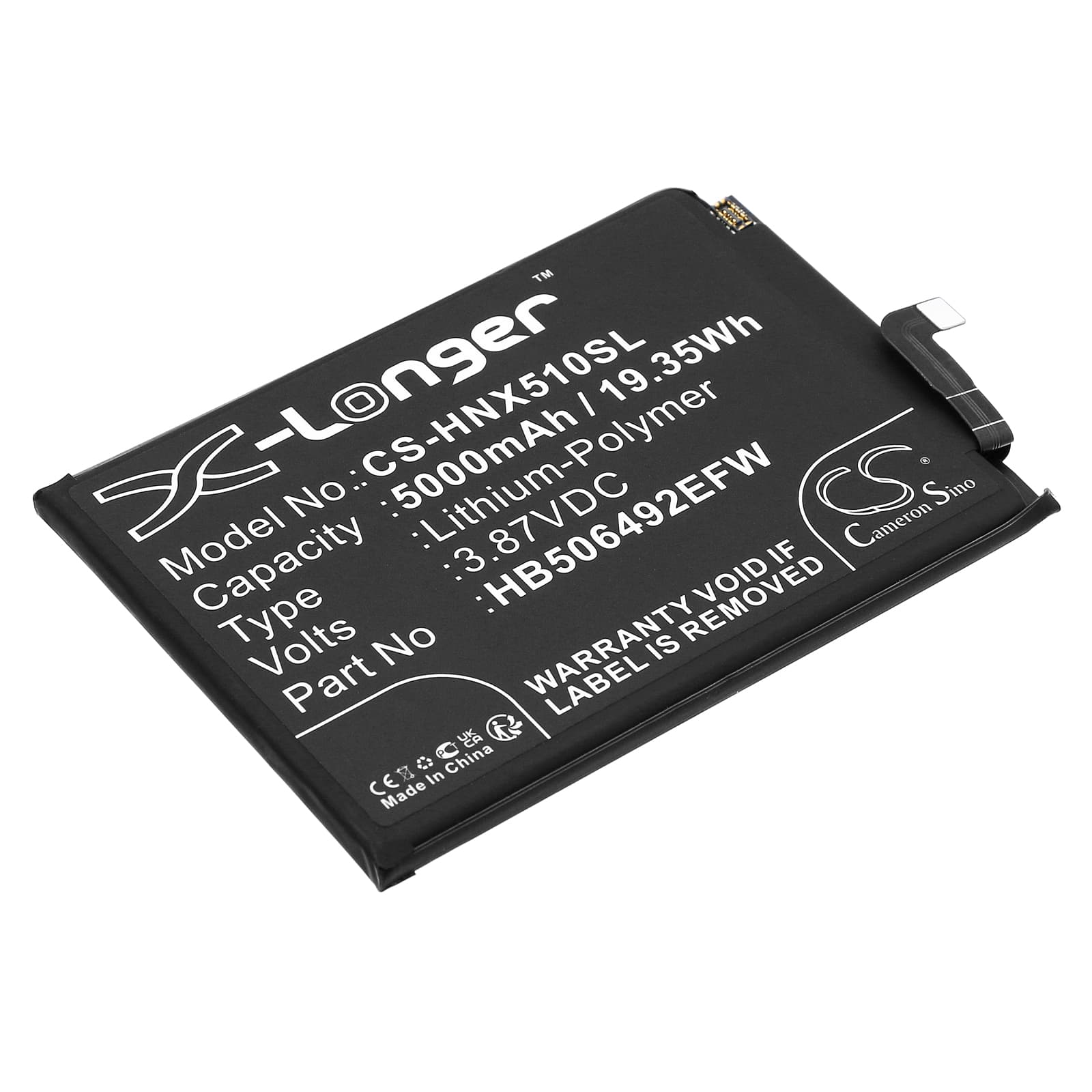

Honor Magic 5 Lite / X9a 5G — 3.87V Li-Polymer Replacement Battery (HB506492EFW)
This is a 5000mAh, 3.87V lithium-polymer battery for the Honor Magic 5 Lite, X9a 5G, RMO-NX3, and RMO-NX1 smartphones. It replaces part number HB506492EFW and fits the original battery bay without modification. Capacity is 19.35Wh, matching the factory cell specification.
- Magic 5 Lite and X9a 5G platform fit: These models share the same battery bay dimensions, connector pinout, and BMS handshake protocol — HB506492EFW covers all four variants listed above. The 89.20 x 63.10 x 4.90mm cell slots directly into each.
- Bench tested on actual hardware: We ran this cell through full charge and discharge cycles on the Magic 5 Lite. The BMS accepted the new cell without error flags, and the charge IC handed off to the USB-PD negotiation stack correctly after the first complete cycle.
- Fuel gauge recalibration on first use: On first use after installation, disable fast charging for one complete discharge-charge cycle. This lets the fuel gauge IC map the new cell's discharge curve before high-current fast charging pushes current into an uncalibrated state — preventing early percentage jumps or false full-charge readings.
Sudden shutdown at 20–30% on the Magic 5 Lite after a cell swap
The Magic 5 Lite's modem and display draw significant current during peak load. A new cell with a slightly different internal resistance curve can hit a voltage floor the BMS reads as critical before the percentage gauge catches up. The phone shuts down not because the cell is empty, but because voltage sags below the 3.2V cutoff under that load spike. One full slow-charge discharge cycle recalibrates the coulomb counter so the reported percentage aligns with actual cell capacity. After that cycle, the shutdowns stop.
USB-PD fast charge not activating on the first cycle after replacement
After fitting a new HB506492EFW cell, the charge IC sometimes defaults to standard 5V charging on the first cycle rather than negotiating the higher USB-PD voltage. This happens because the BMS on a fresh cell starts in a conservative mode until it registers one complete charge event. Connect to the original Honor charger and let the first charge run to 100% without interruption. Fast charging resumes normally from the second cycle onward — no settings change required.
